Fuel Pump

  1. Disconnect "fuel level sensor unit and fuel pump" harness connector.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3.

    Resistance: 0.2 - 5.0Ω [at 25°C (77°F)]

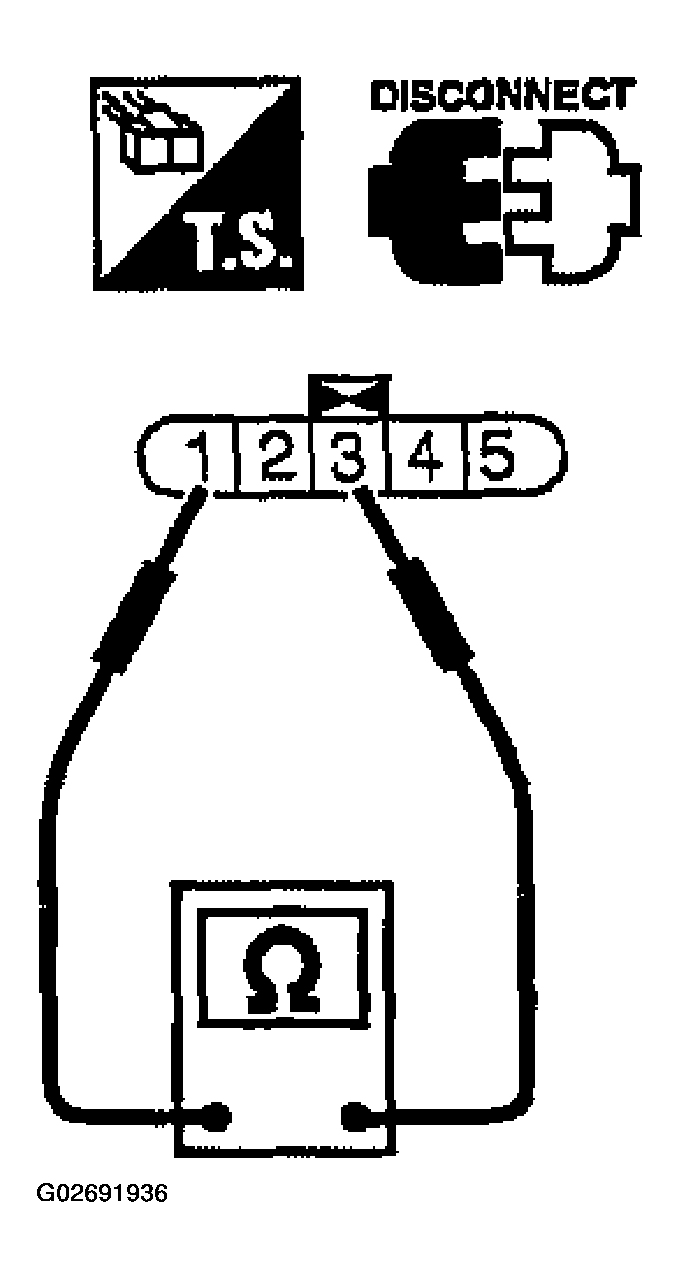

Fig 1: Checking Fuel Pump Connector Terminals (1 Of 2)
G02691936Courtesy of NISSAN MOTOR CO., U.S.A.
