Component Inspection: Injector

Disconnect injector harness connector.

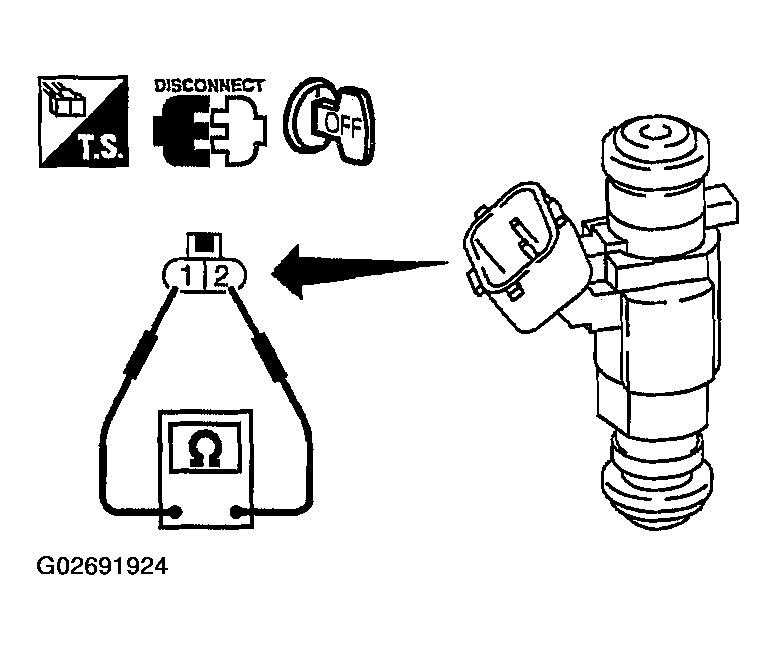

Check resistance between terminals as shown in the figure.
Resistance: 11.1 - 14.5Ω [at 10 - 60°C (50 - 140°F)]

Fig 1: Checking Intermittent Incident

Courtesy of NISSAN MOTOR CO., U.S.A.
