Diagnostic Procedure

  1. INSPECTION START

    Turn ignition switch to START.

    Is any cylinder ignited?

    Yes or No

    Yes: GO TO 2.

    No: GO TO  3.

  2. CHECK OVERALL FUNCTION

    With CONSULT-II

    1. Start engine.
    2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.
    3. Make sure that each circuit produces a momentary engine speed drop.

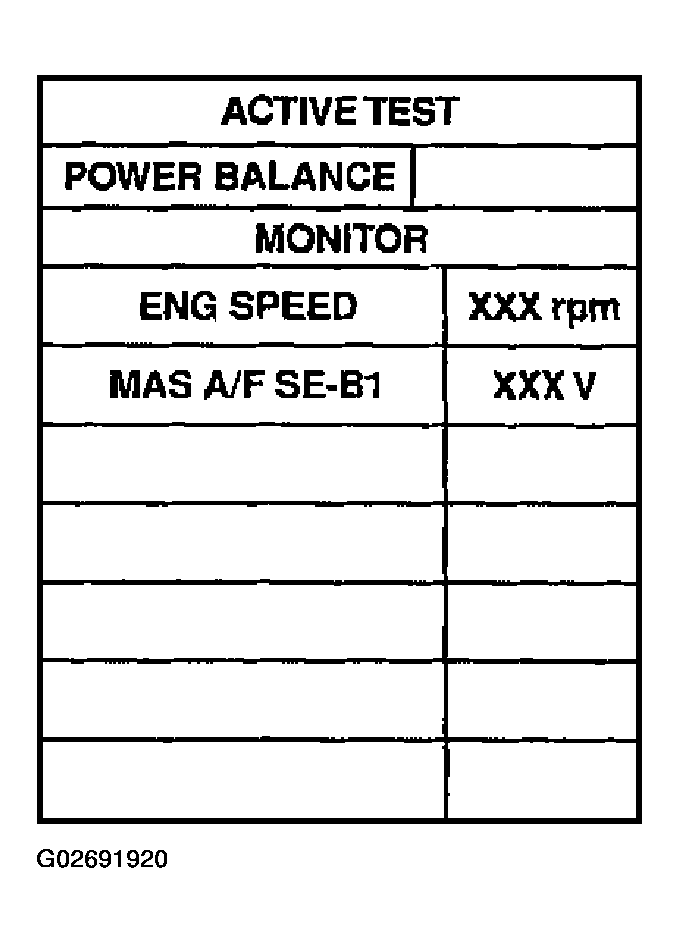

      Fig 1: Active Test Mode With CONSULT-II
      G02691920Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine.
    2. Listen to each injector operating sound.

      Clicking noise should be heard.

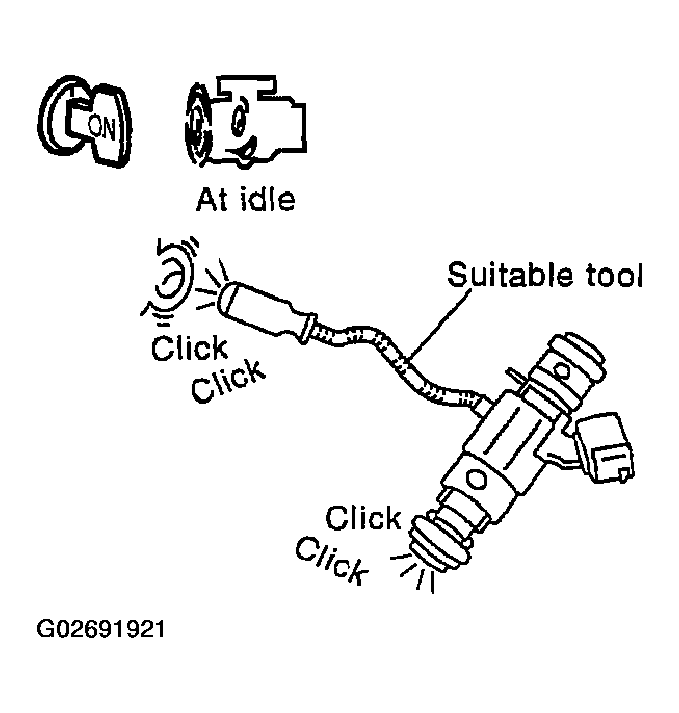

    Fig 2: Overall Function Without CONSULT-II
    G02691921Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: INSPECTION END

    NG: GO TO 3.

  3. CHECK INJECTOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect injector harness connector.

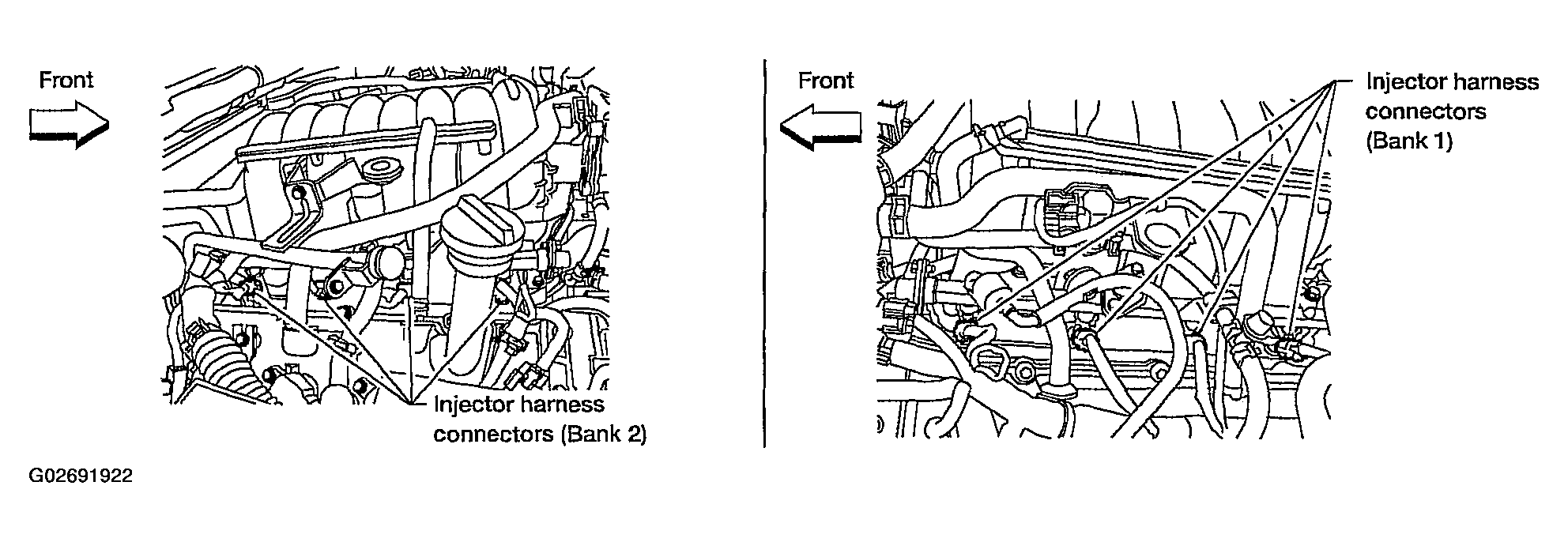

      Fig 3: Checking Injector Power Supply Circuit
      G02691922Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch ON.
    4. Check voltage between injector terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    OK: GO TO  5.

    NG: GO TO 4.

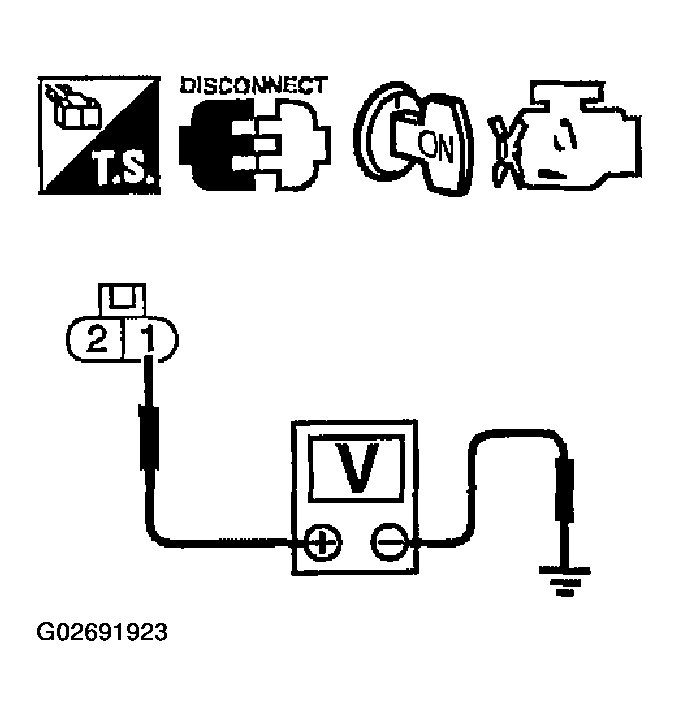

    Fig 4: Measuring Voltage Between Terminals
    G02691923Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E2, F32
    • IPDM E/R connector E119
    • 15A fuse
    • Harness for open or short between injector and fuse

      : Repair harness or connectors.

  5. CHECK INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between injector terminal 2 and ECM terminals 21, 22, 23, 40, 41, 42, 44, 63.

      Refer to Wiring Diagram.

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 6.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  6. CHECK INJECTOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    OK: GO TO 7.

    NG: Replace injector.

  7. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    : INSPECTION END
