Test Item

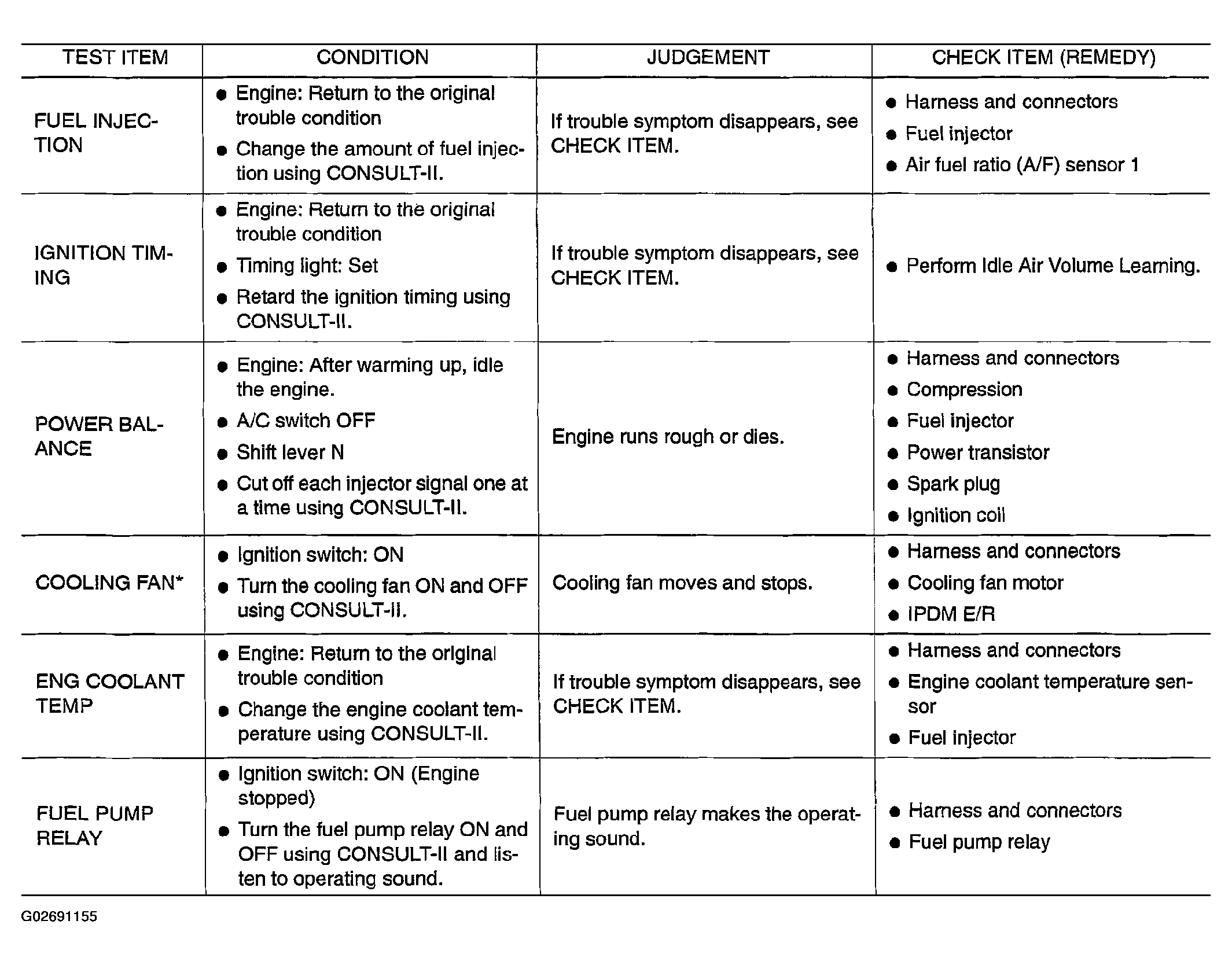

Fig 1: Active Test Mode - Test Item Judgement (1 Of 2)
G02691155Courtesy of NISSAN MOTOR CO., U.S.A.

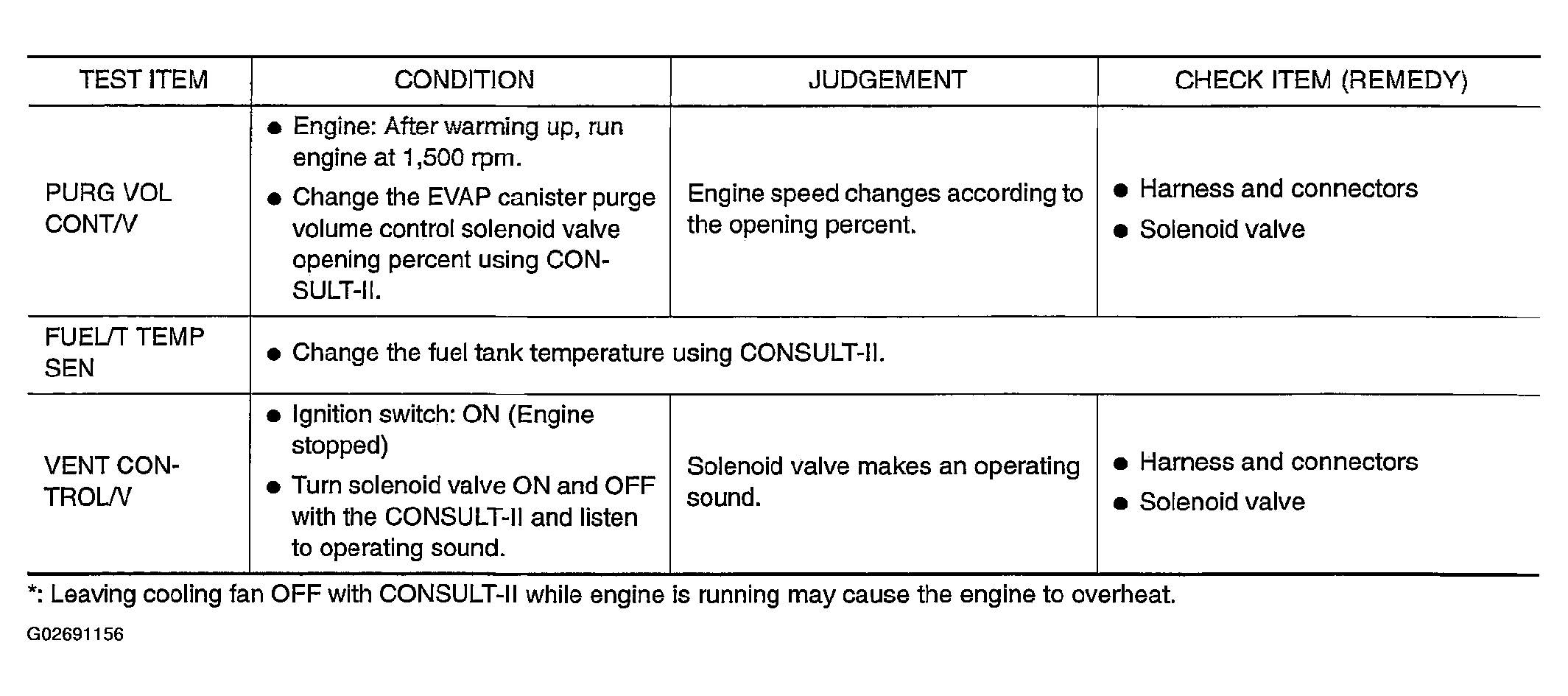

Fig 2: Active Test Mode - Test Item Judgement (2 Of 2)
G02691156Courtesy of NISSAN MOTOR CO., U.S.A.
