Monitored Item

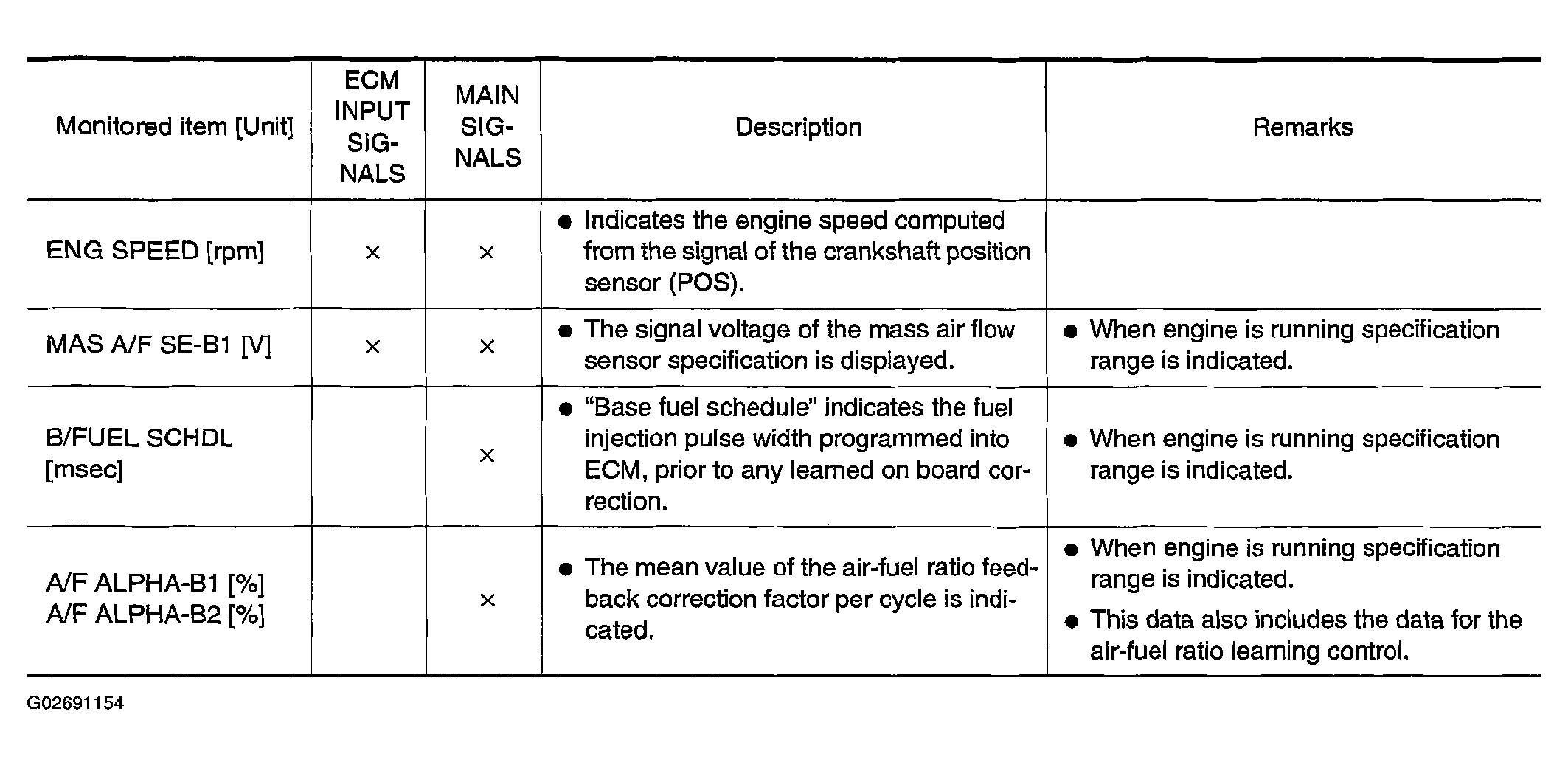

Fig 1: Data Monitor (Spec) Mode - Monitored Item Description
G02691154Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
