CONSULT-II Function: Function

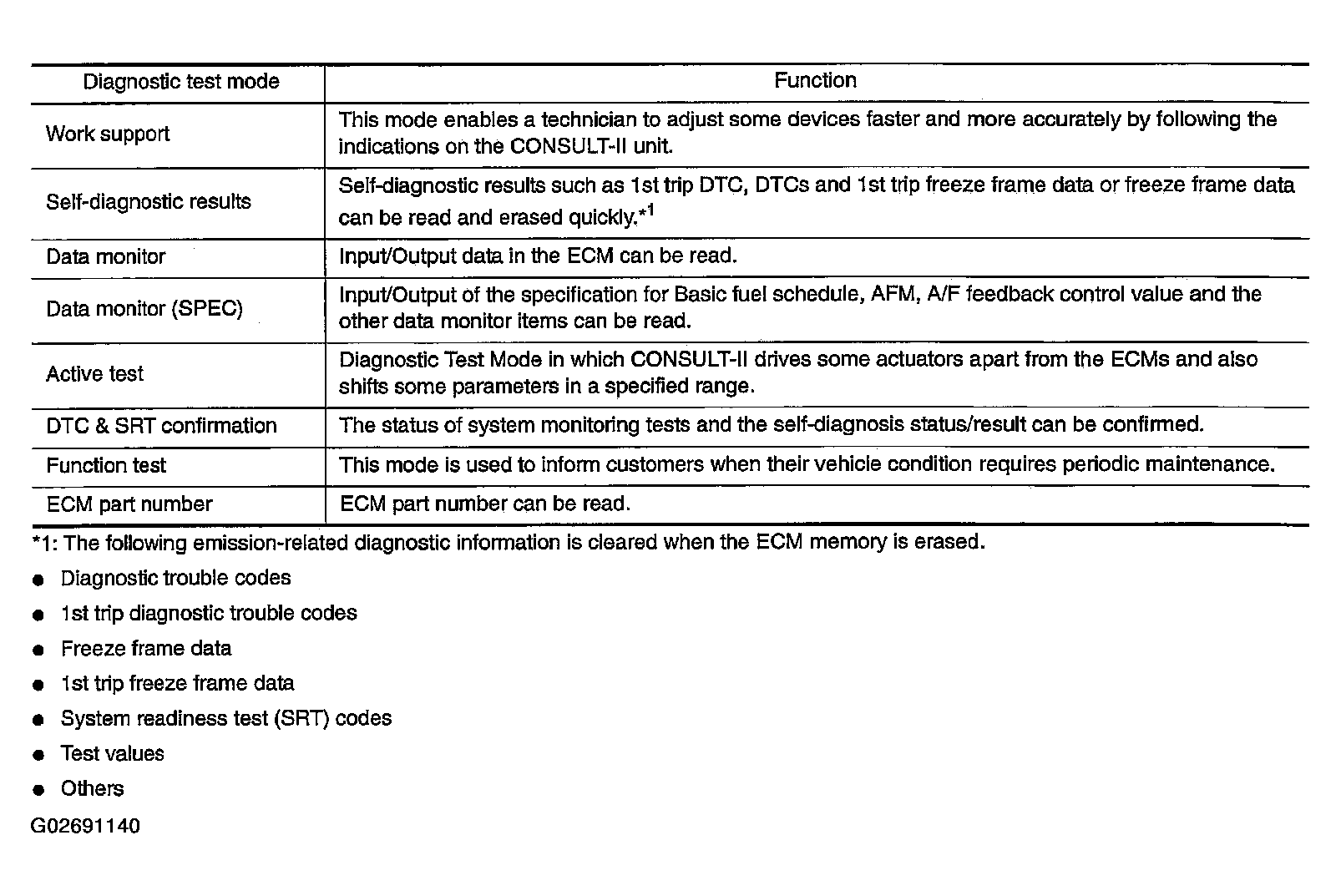

Fig 1: Diagnostic Test Mode - Consult-II Function
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
