Method B

  1. Remove No. 1 ignition coil.

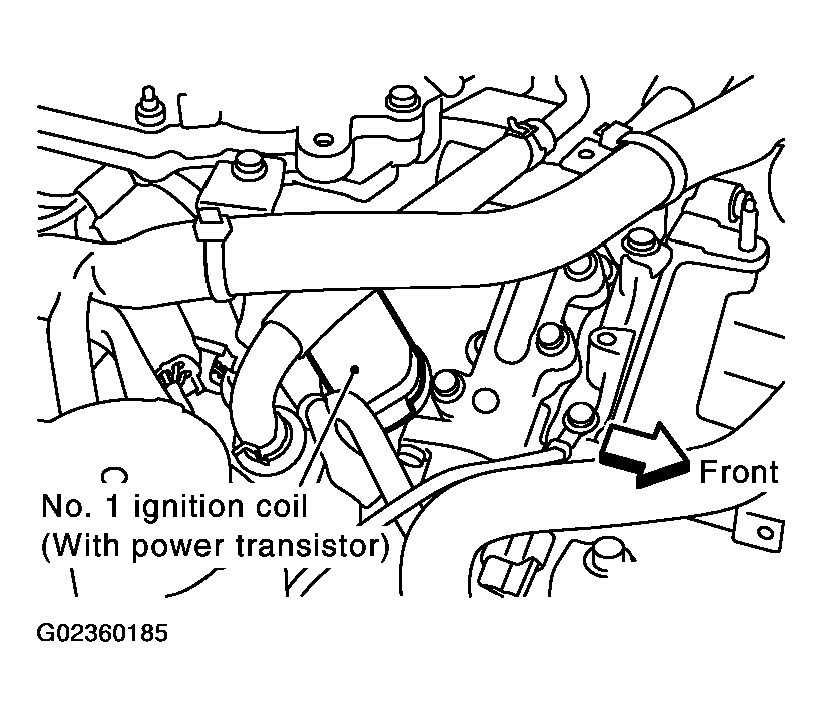

    Fig 1: Removing No. 1 Ignition Coil
    G02360185Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
    Fig 2: Attaching Timing Light Clamp To High-Tension Wire
    G02360186Courtesy of NISSAN MOTOR CO., U.S.A.

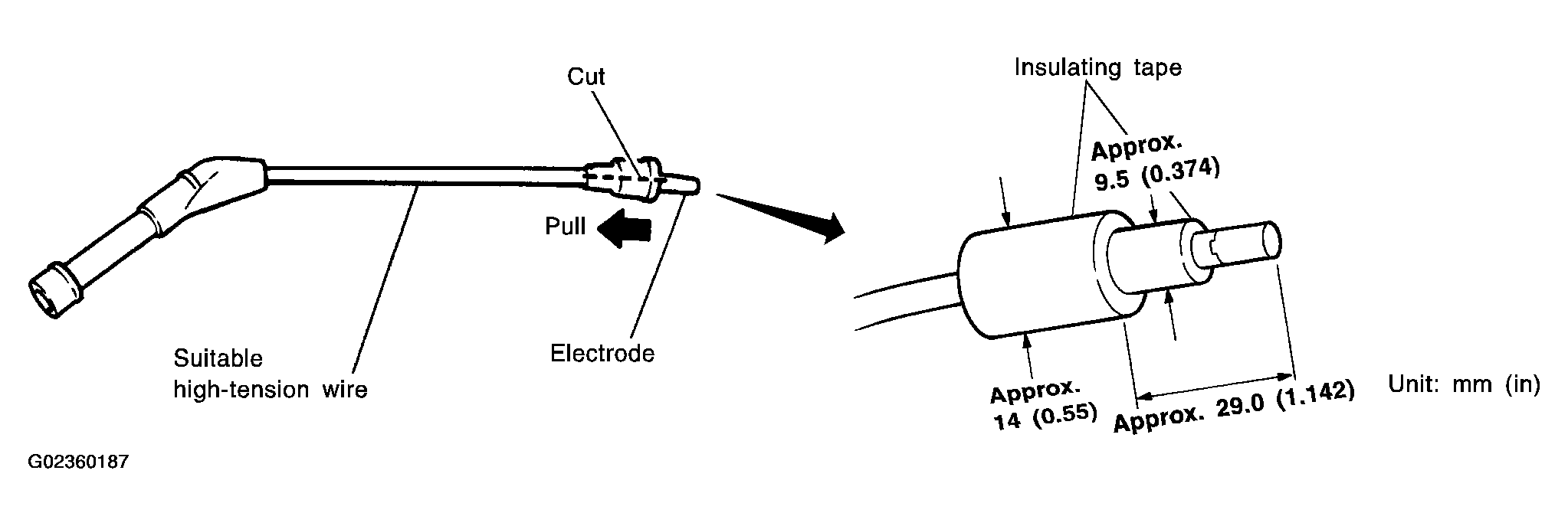

    Fig 3: Connecting No. 1 Ignition Coil And No. 1 Spark Plug With High-Tension Wire
    G02360187Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

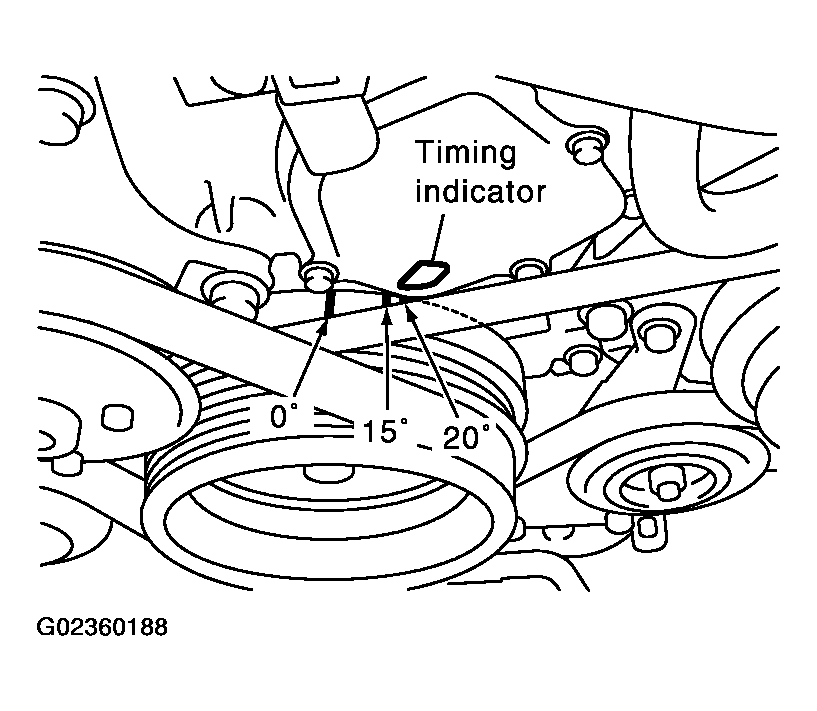

    Fig 4: Checking Ignition Timing
    G02360188Courtesy of NISSAN MOTOR CO., U.S.A.
