Consult-II Basic Operation Procedure: Notes

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which performs CAN communication.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

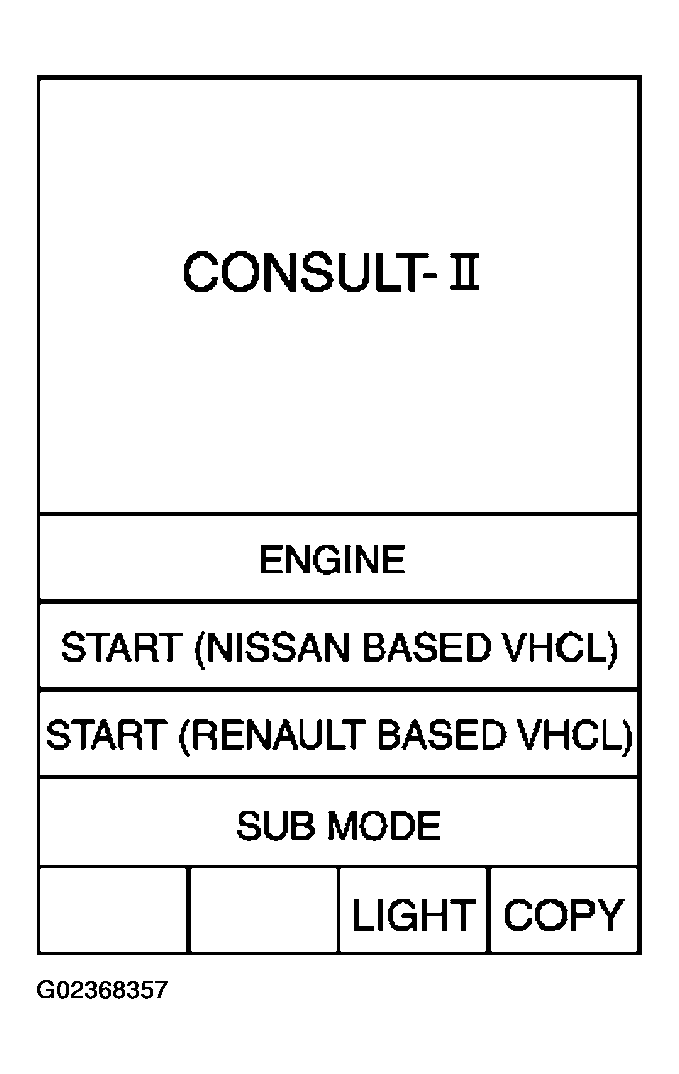

Fig 1: Consult II - Data Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS" in the "SELECT SYSTEM" screen. If "ABS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

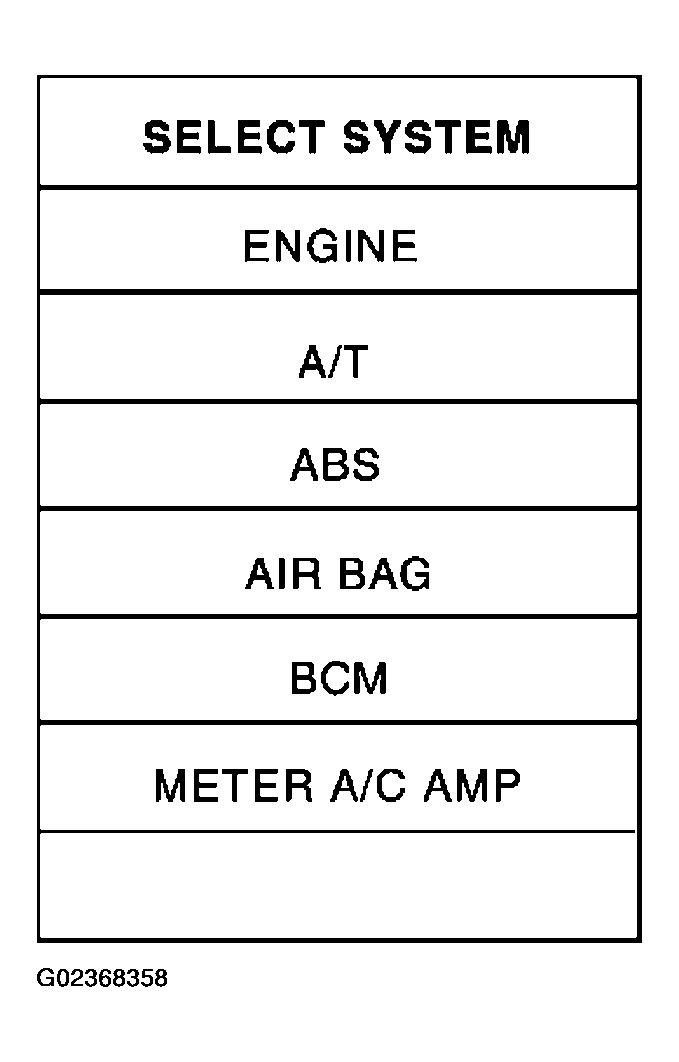

Fig 2: Consult II Select - Data Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the required diagnostic location from the "SELECT DIAG MODE" screen. For further information, see CONSULT-II Operation Manual.

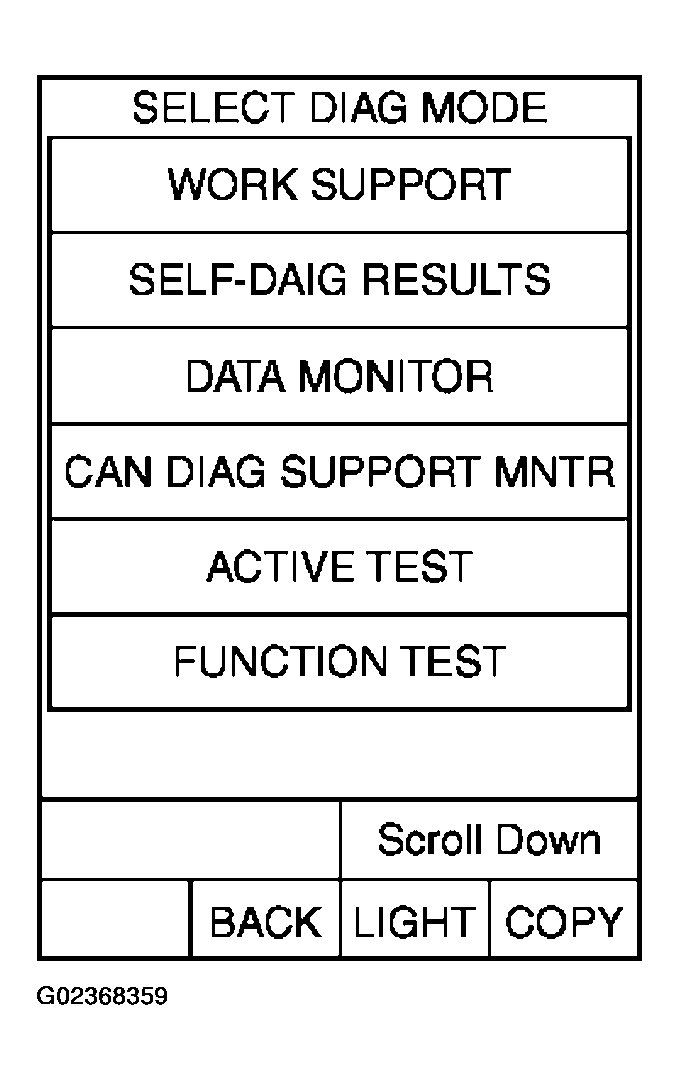

Fig 3: Select Diag Mode - Data Display
Courtesy of NISSAN MOTOR CO., U.S.A.
