Input/Output Signal Chart

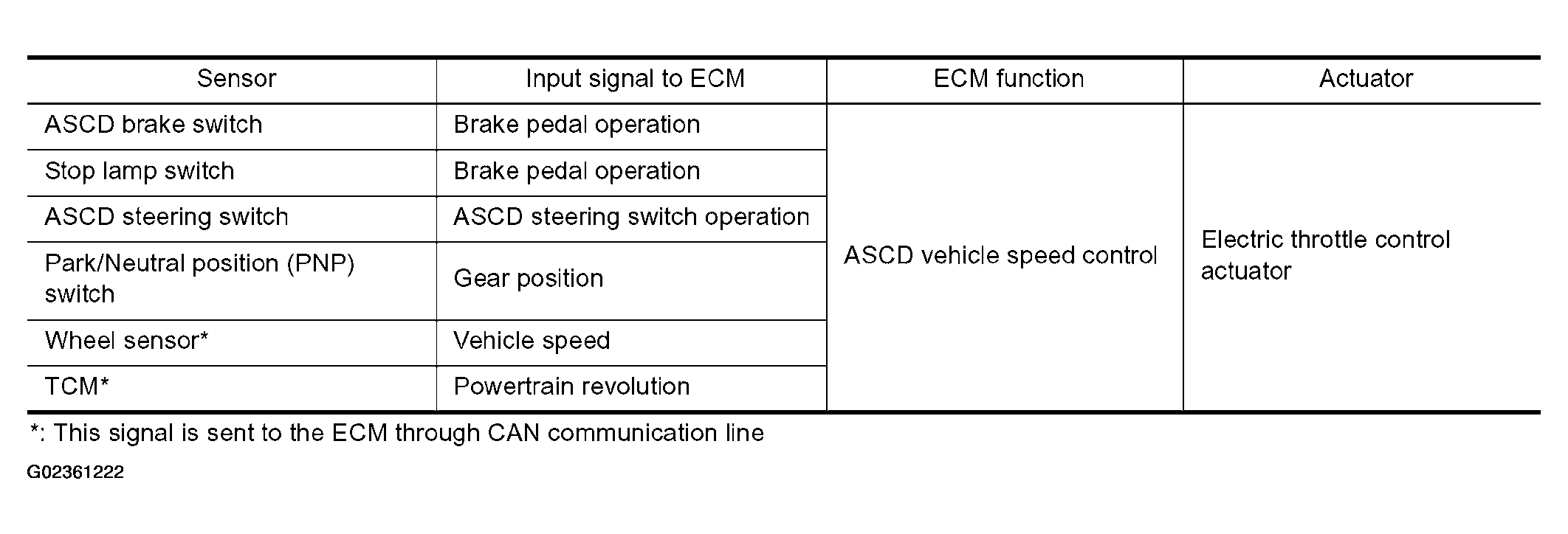

Fig 1: Automatic Speed Control Device (ASD) - Input/Output Signal Chart
G02361222Courtesy of NISSAN MOTOR CO., U.S.A.
