On Board Diagnosis Logic

NOTE: If DTC P0461 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE

Driving long distances naturally affect fuel gauge level.

This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has been driven.

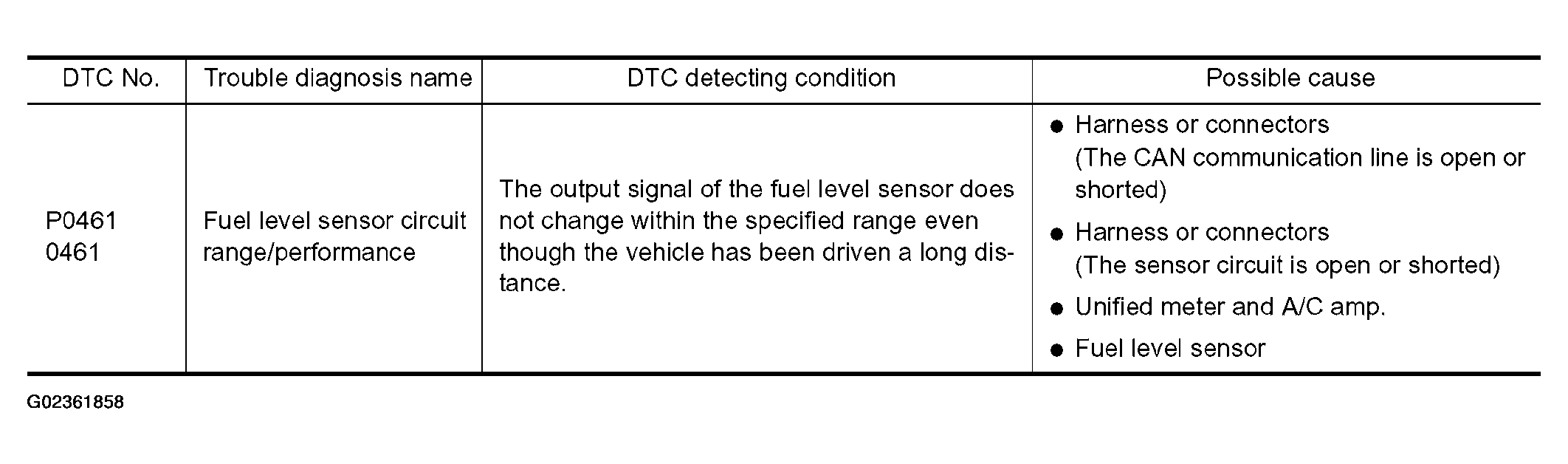

Fig 1: DTC Detecting Condition And Possible Cause Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
