Procedure B

1. Disconnect IPDM E/R harness connector E6.
2. Disconnect cooling fan motor harness connector.
3. Check harness continuity between cooling fan motor terminal 1 and IPDM E/R terminal 11.

   Refer to WIRING DIAGRAM  .

   1. Continuity should exist.
4. Also check harness for short to ground and short to power.

OK or NG

1. OK: GO TO 2.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

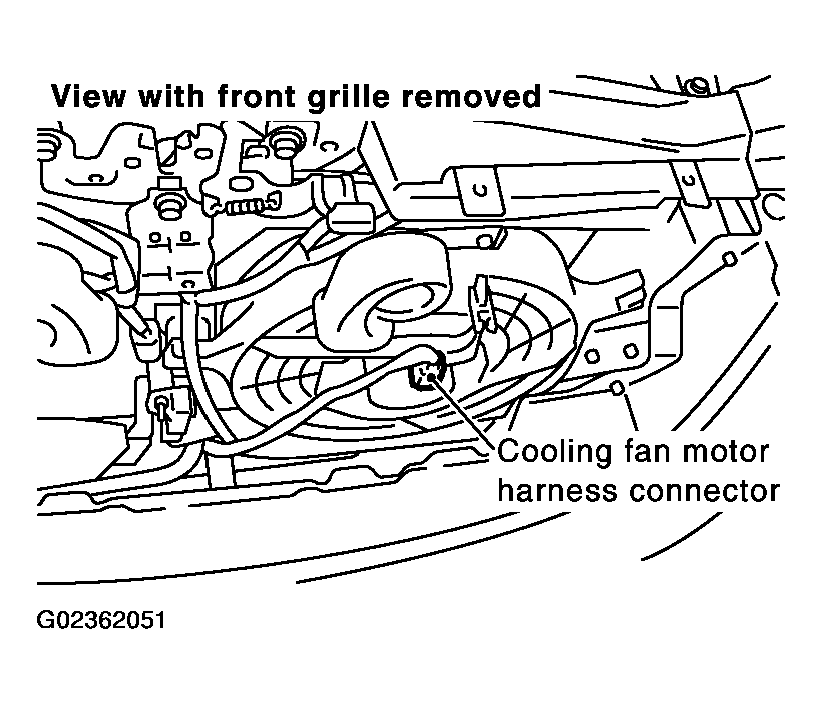

Fig 1: Disconnecting Cooling Fan Motor Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT INSPECTION  ".

OK or NG

1. OK: GO TO 3.
2. NG: Replace cooling fan motor.

Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  ".

OK or NG

1. OK: Replace IPDM E/R. Refer to "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) ".
2. NG: Repair or replace harness connectors.
