Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    CONDITIONS AND CONTINUITY REFERENCE CHART

    Conditions Continuity
    Brake pedal fully released Should not exist.
    Brake pedal slightly depressed Should exist.

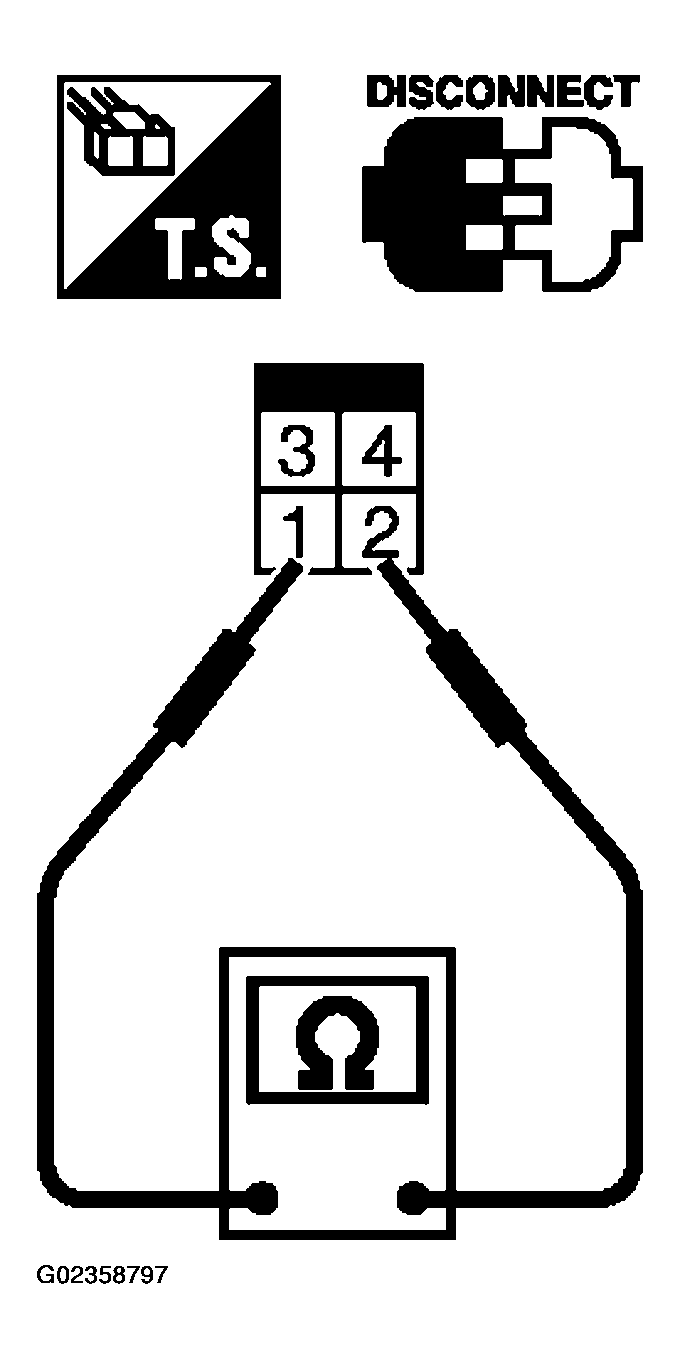

    Fig 1: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G02358797Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 3 again.
