Engine Control System - VK45DE
>>
ICC Brake Switch
>>
CONSULT-II Reference Value in Data Monitor Mode
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

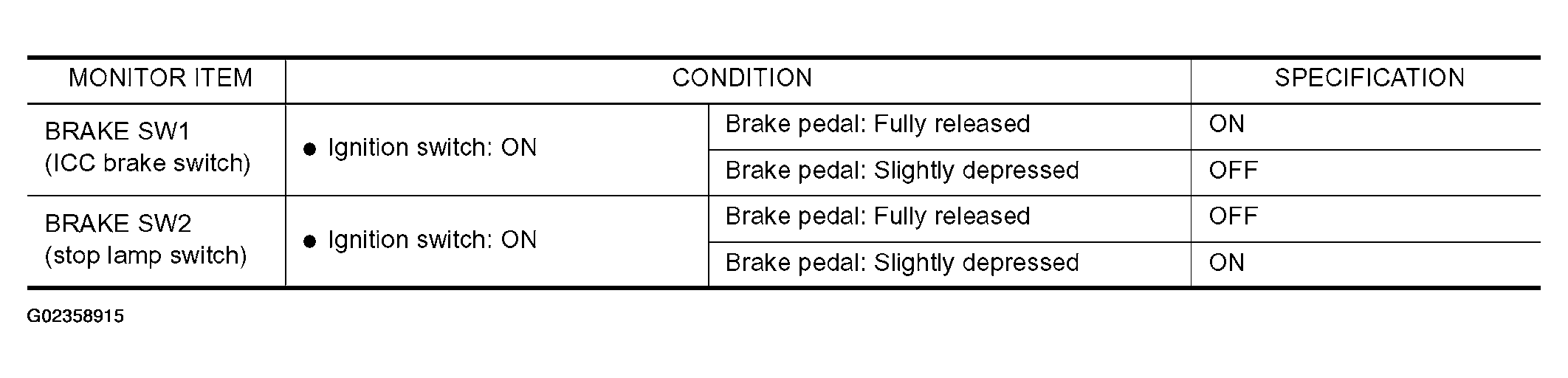

Fig 1: Specification Data Are Reference Values Description
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
