Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.
    1. Resistance: Above 1 Mohm at 25°C (77°F)

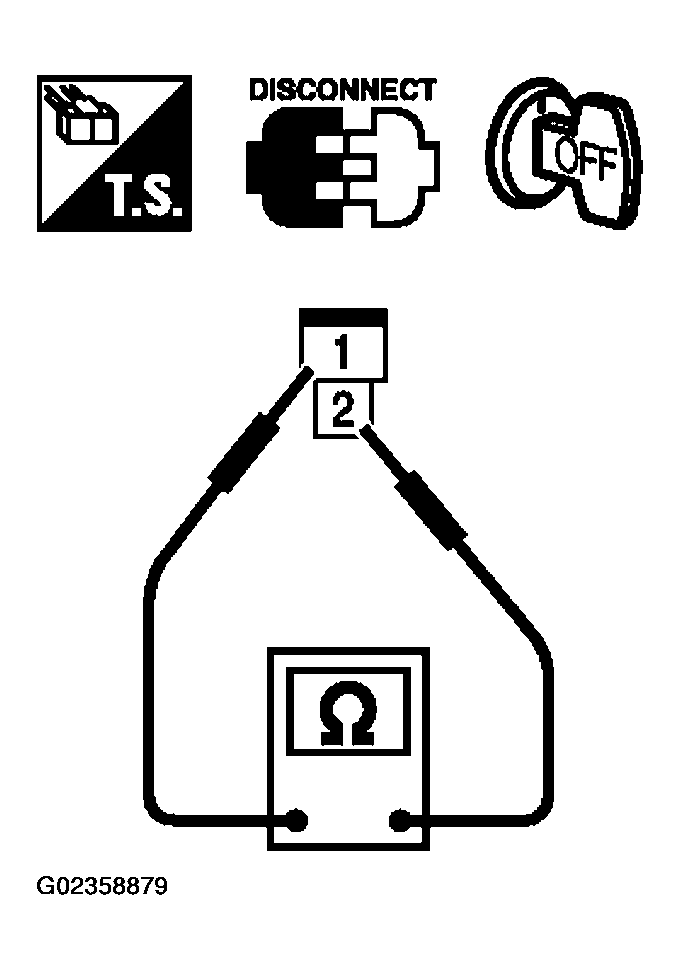

    Fig 1: Checking Resistance Between Condenser Terminals 1 And 2
    G02358879Courtesy of NISSAN MOTOR CO., U.S.A.
