Alphabetical Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

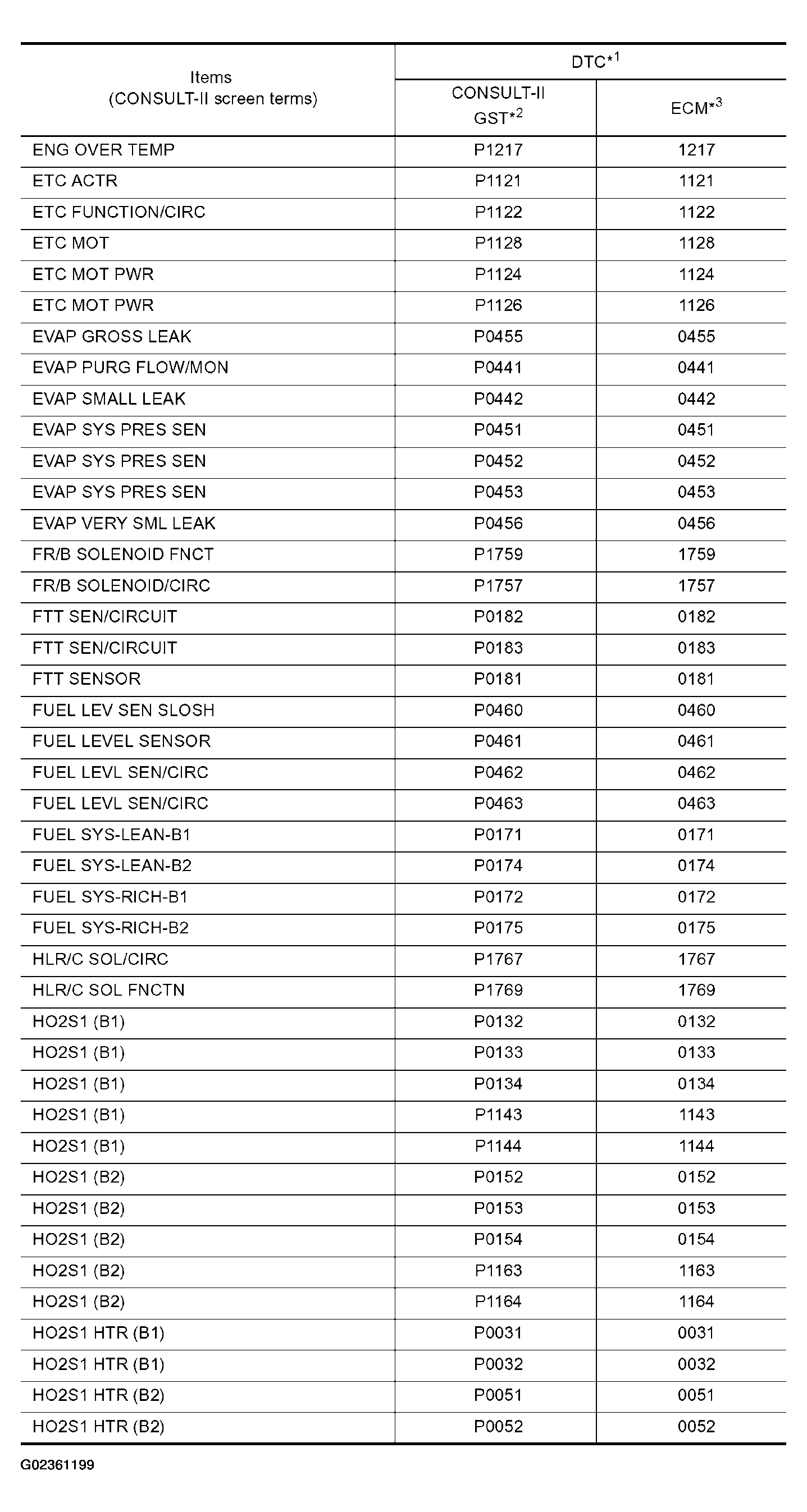

Fig 1: DTC Alphabetical Code Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: DTC Alphabetical Code Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: DTC Alphabetical Code Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: DTC Alphabetical Code Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
