Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.
    1. Resistance: 13.5 - 17.5ohm [at 10 - 60°C (50 - 140°F)]

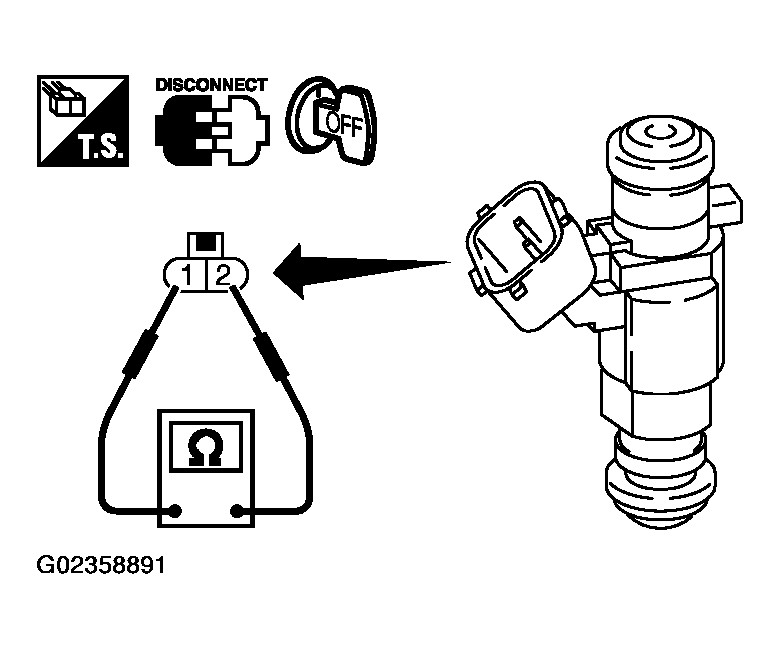

    Fig 1: Checking Resistance Between Terminals
    G02358891Courtesy of NISSAN MOTOR CO., U.S.A.
