Diagnostic Procedure

  1. CHECK OVERALL FUNCTION

    WITH CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Perform "VIAS SOL VALVE  " in "ACTIVE TEST" mode with CONSULT-II.
    3. Turn VIAS control solenoid valve ON and OFF, and make sure that power valve actuator rod moves.

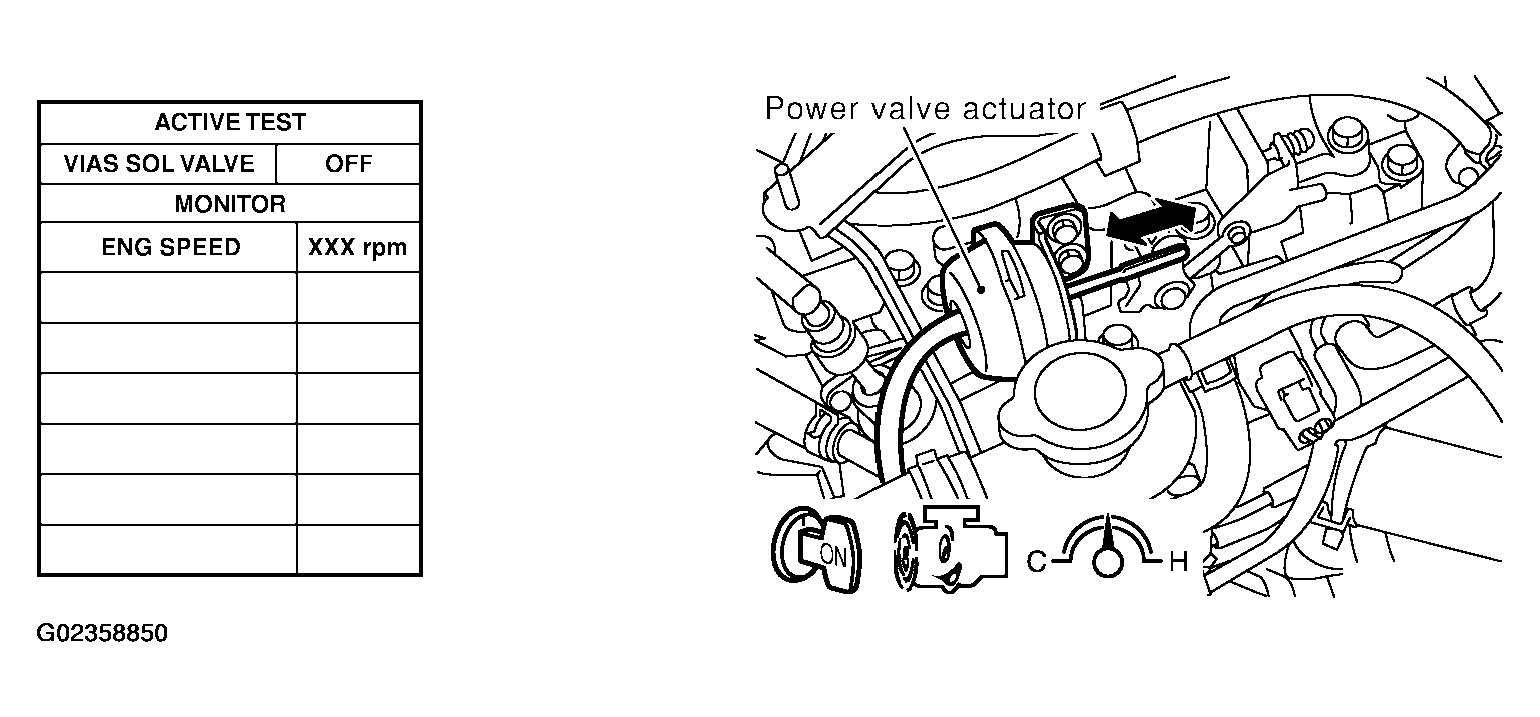

      Fig 1: Identifying Power Valve Actuator
      G02358850Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Lift up the vehicle.
    2. Start engine and warm it up to normal operating temperature.
    3. Make sure that power valve actuator rod moves when changing the gear position to N and D alternately.
      Fig 2: Locating Power Valve Actuator
      G02358851Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END
    2. NG (With CONSULT-II): GO TO 2.
    3. NG (Without CONSULT-II): GO TO  3 .
  2. CHECK VACUUM EXISTENCE

    WITH CONSULT-II

    1. Stop engine and disconnect vacuum hose connected to power valve actuator.
    2. Start engine and let it idle.
    3. Perform "VIAS SOL VALVE  " in "ACTIVE TEST" mode with CONSULT-II.
    4. Turn VIAS control solenoid valve ON and OFF, and check vacuum existence under the following conditions.

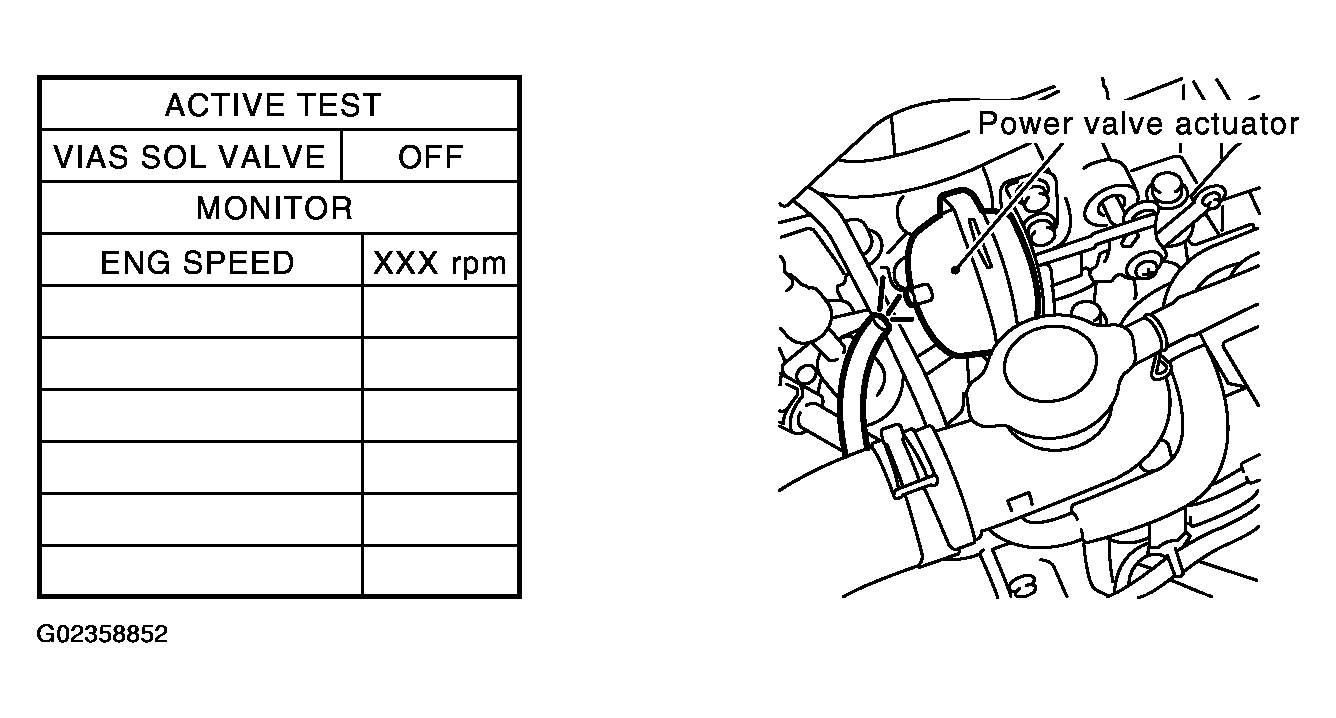

      Fig 3: Locating Power Valve Actuator
      G02358852Courtesy of NISSAN MOTOR CO., U.S.A.
    VIAS SOL VALVE AND VACUUM CHART

    VIAS SOL VALVE Vacuum
    ON Should exist.
    OFF Should not exist.

    OK or NG

    1. OK: Repair or replace power valve actuator.
    2. NG: GO TO  4 .
  3. CHECK VACUUM EXISTENCE

    Without CONSULT-II

    1. Stop engine and disconnect vacuum hose connected to power valve actuator.
    2. Disconnect VIAS control solenoid valve harness connector.
    3. Start engine and let it idle.
    4. Apply 12V of direct current between VIAS control solenoid valve terminals 1 and 2.
    5. Check vacuum existence under the following conditions.

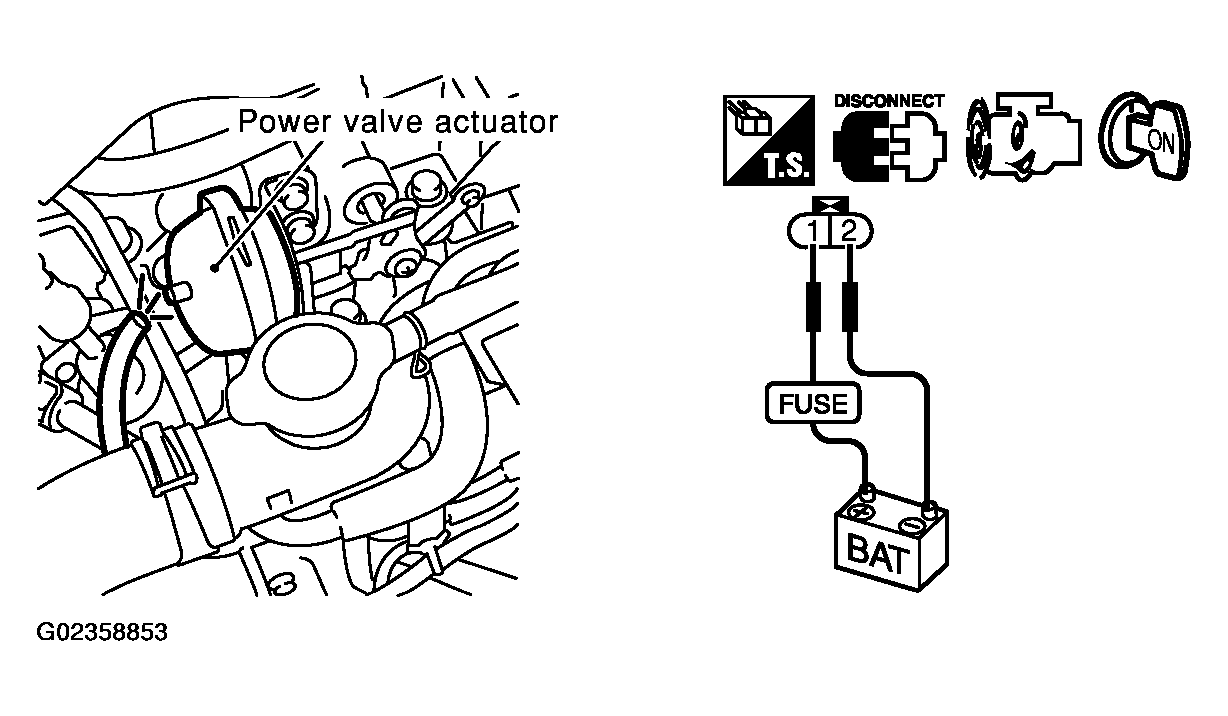

      Fig 4: Identifying Power Valve Actuator
      G02358853Courtesy of NISSAN MOTOR CO., U.S.A.
    CONDITION AND VACUUM REFERENCE CHART

    Condition Vacuum
    12V direct current supply Should exist
    No supply Should not exist

    OK or NG

    1. OK: Repair or replace power valve actuator.
    2. NG: GO TO 4.
  4. CHECK VACUUM HOSE
    1. Stop engine.
    2. Check hoses and tubes between intake manifold and power valve actuator for crack, clogging, improper connection or disconnection. Refer to "VACUUM HOSE DRAWING  ".

    OK or NG

    1. OK: GO TO 5.
    2. NG: Repair hoses or tubes.

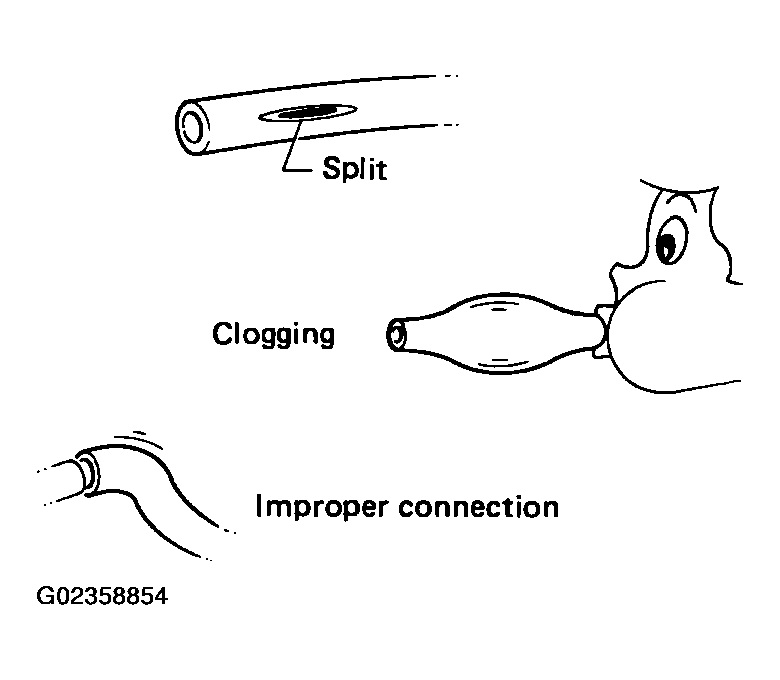

    Fig 5: Checking Vacuum Hose
    G02358854Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK VACUUM TANK

    Refer to "COMPONENT INSPECTION  ".

    OK or NG

    1. OK: GO TO 6.
    2. NG: Replace vacuum tank.
  6. CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect VIAS control solenoid valve harness connector.
    3. Turn ignition switch ON.

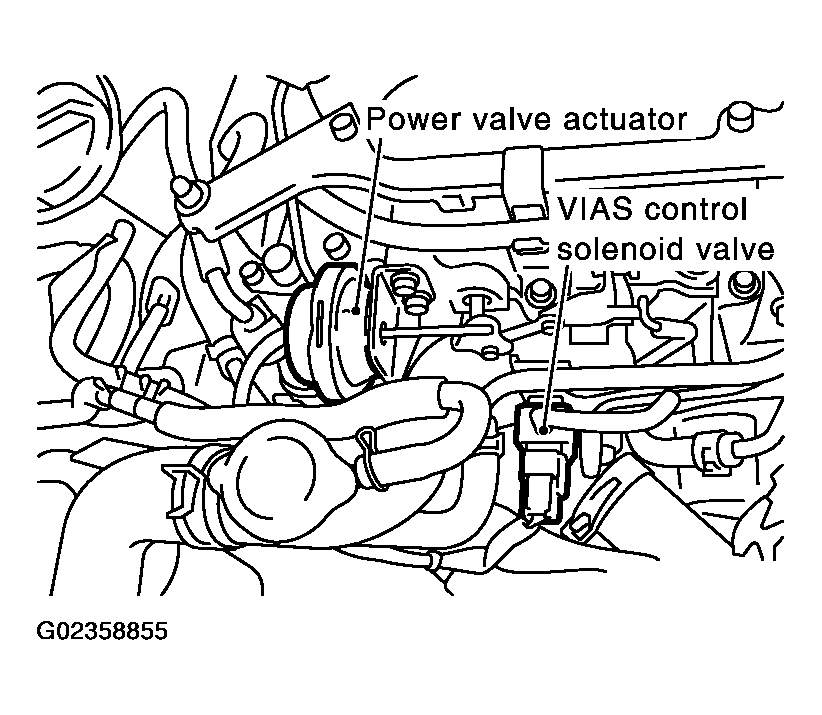

      Fig 6: Disconnecting VIAS Control Solenoid Valve Harness Connector
      G02358855Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between terminal 1 and ground with CONSULT-II or tester.
      1. Voltage: Battery voltage

    OK or NG

    1. OK: GO TO  8 .
    2. NG: GO TO 7.

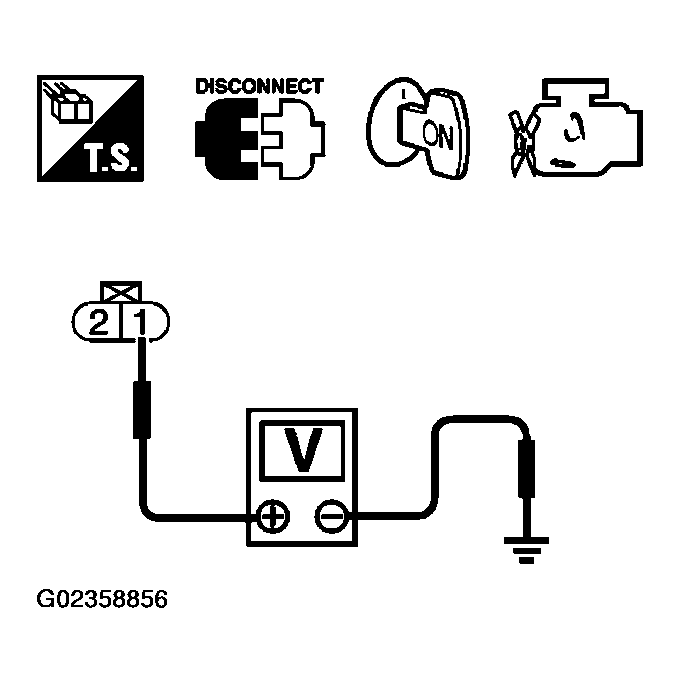

    Fig 7: Checking Voltage Between Terminal 1 And Ground
    G02358856Courtesy of NISSAN MOTOR CO., U.S.A.
  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E211, M41
    • Harness connectors M82, F102
    • IPDM E/R connector E7
    • 10A fuse
    • Harness continuity between IPDM E/R and VIAS control solenoid valve
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK VIAS CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 29 and VIAS control solenoid valve terminal 2. Refer to WIRING DIAGRAM  .
      1. Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 9.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK VIAS CONTROL SOLENOID VALVE

    Refer to "COMPONENT INSPECTION  ".

    OK or NG

    1. OK: GO TO 10.
    2. NG: Replace VIAS control solenoid valve.
  10. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  ".

    1. : INSPECTION END
