Disassembly and Assembly: Components

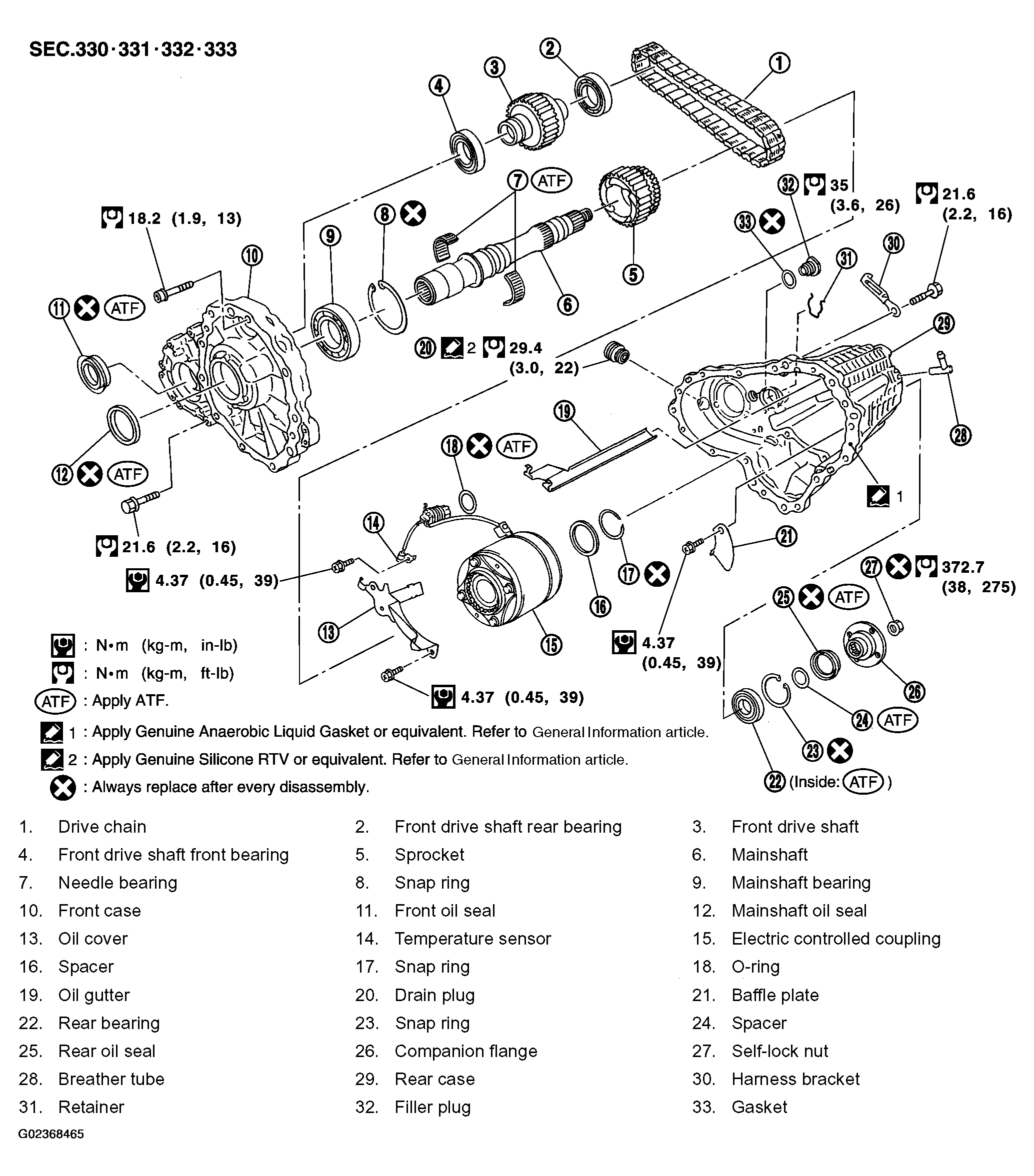

Fig 1: Exploded View Of Transfer Components With Torque Specifications
G02368465Courtesy of NISSAN MOTOR CO., U.S.A.
