Method B

  1. Remove No. 1 ignition coil.

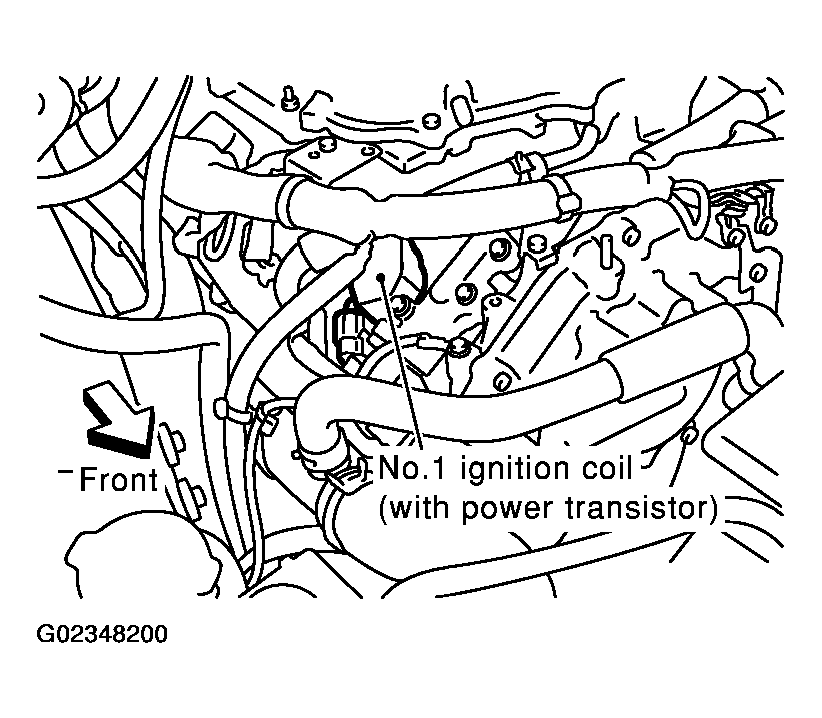

    Fig 1: Removing No. 1 Ignition Coil
    G02348200Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

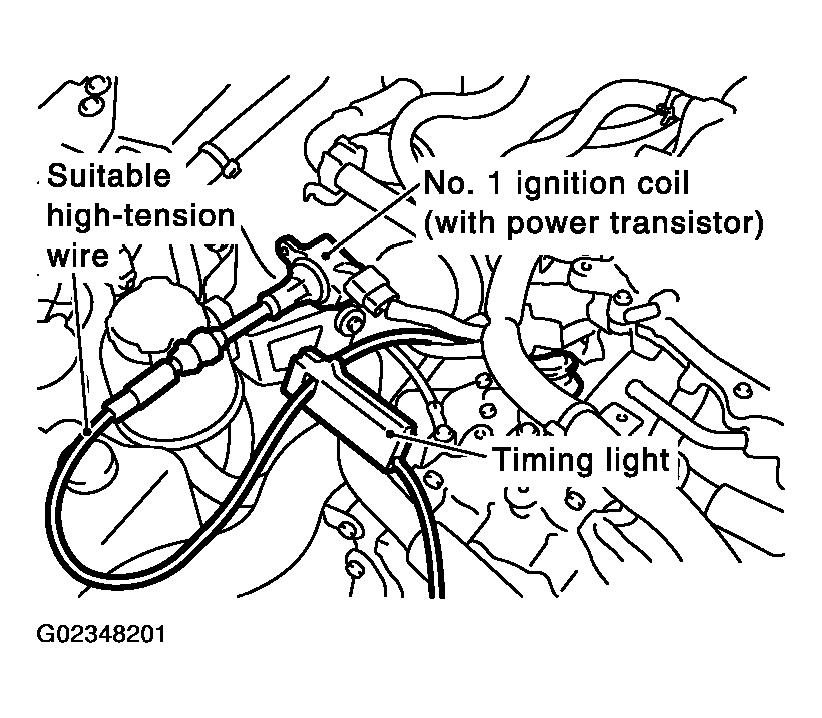

    Fig 2: Connecting No. 1 Ignition Coil And No. 1 Spark Plug With Suitable High-Tension Wire
    G02348201Courtesy of NISSAN MOTOR CO., U.S.A.

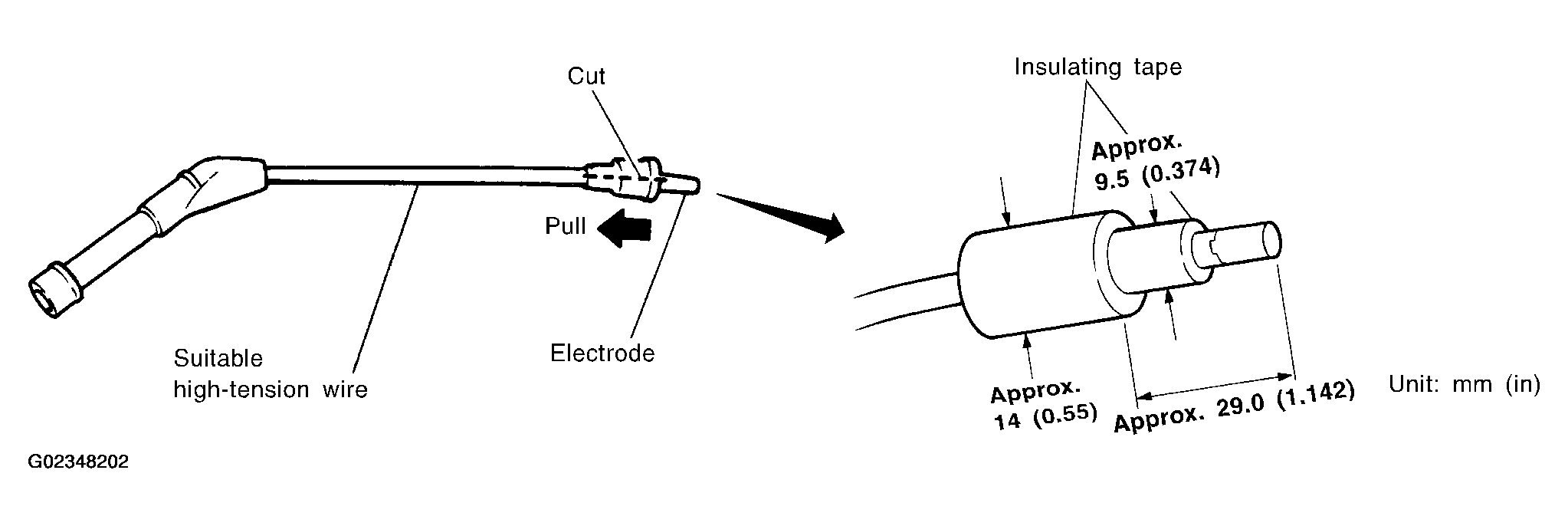

    Fig 3: Identifying Insulating Tape Suitable Lengths
    G02348202Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

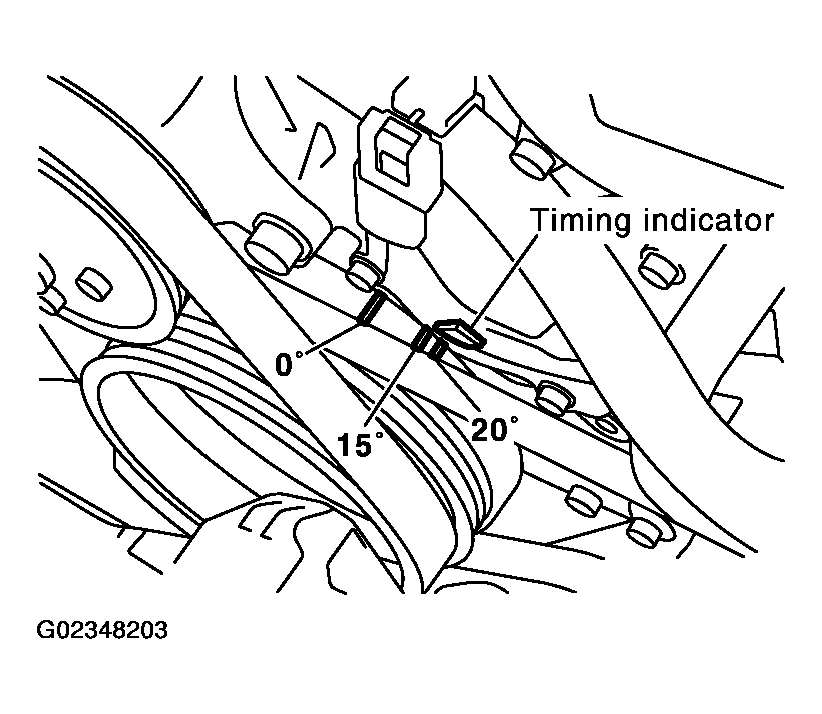

    Fig 4: Checking Ignition Timing
    G02348203Courtesy of NISSAN MOTOR CO., U.S.A.
