With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and wait at least 5 seconds.
  4. If DTC is detected, go to "Diagnostic Procedure ".

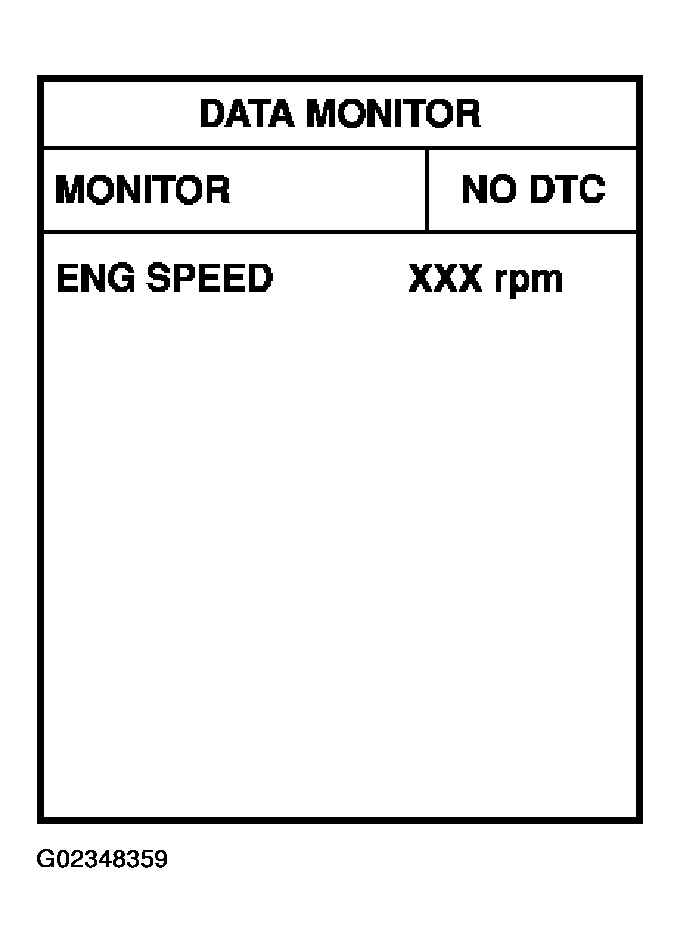

    Fig 1: Selecting "DATA MONITOR" mode
    G02348359Courtesy of NISSAN MOTOR CO., U.S.A.
