2WD Models

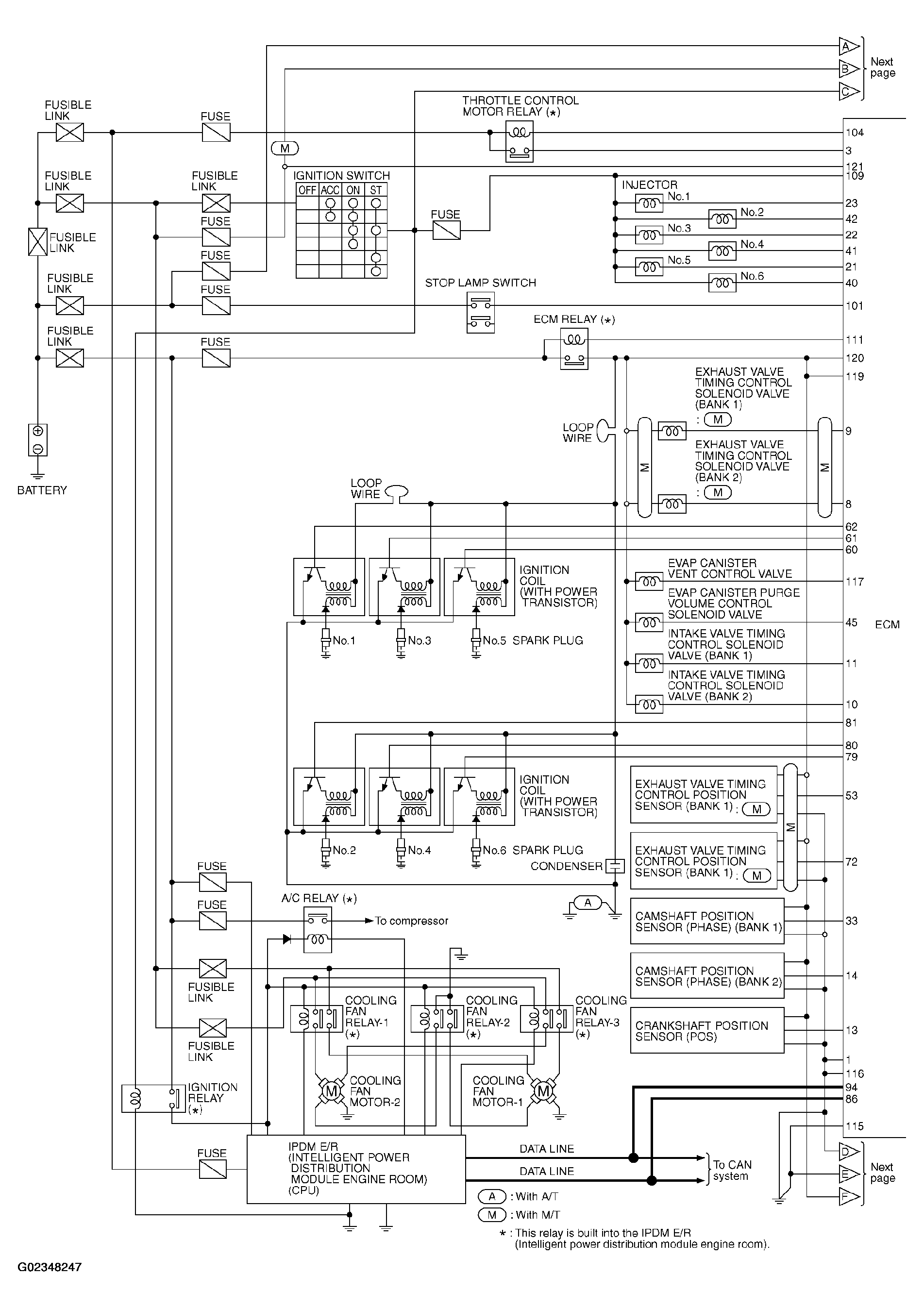

Fig 1: Circuit Diagram - 2WD Models (1 Of 2)
G02348247Courtesy of NISSAN MOTOR CO., U.S.A.

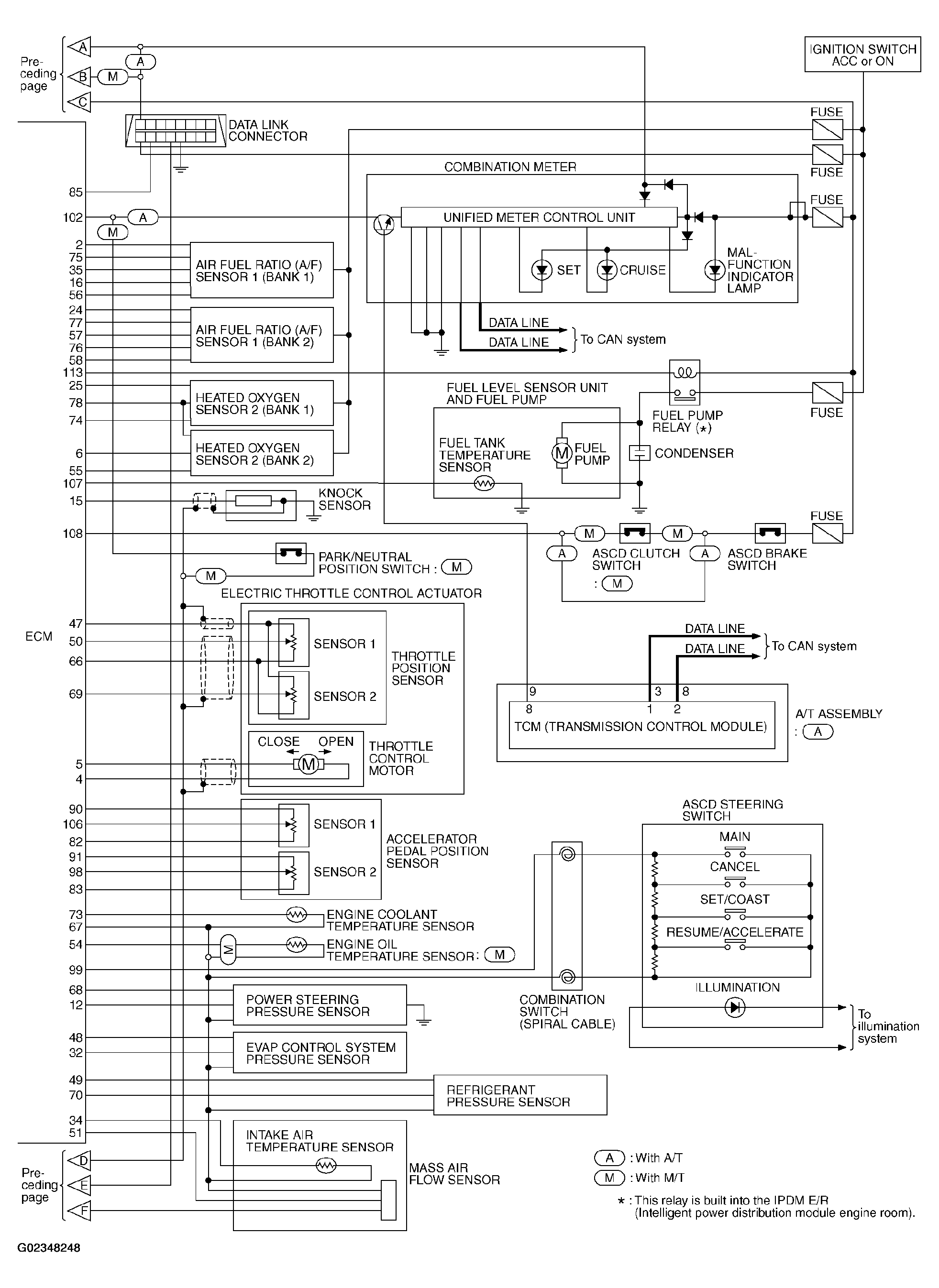

Fig 2: Circuit Diagram - 2WD Models (2 Of 2)
G02348248Courtesy of NISSAN MOTOR CO., U.S.A.
