System - Basic Engine Control System

Fig 1: Symptom Matrix Chart - System - Basic Engine Control System (1 Of 2)
G02348236Courtesy of NISSAN MOTOR CO., U.S.A.

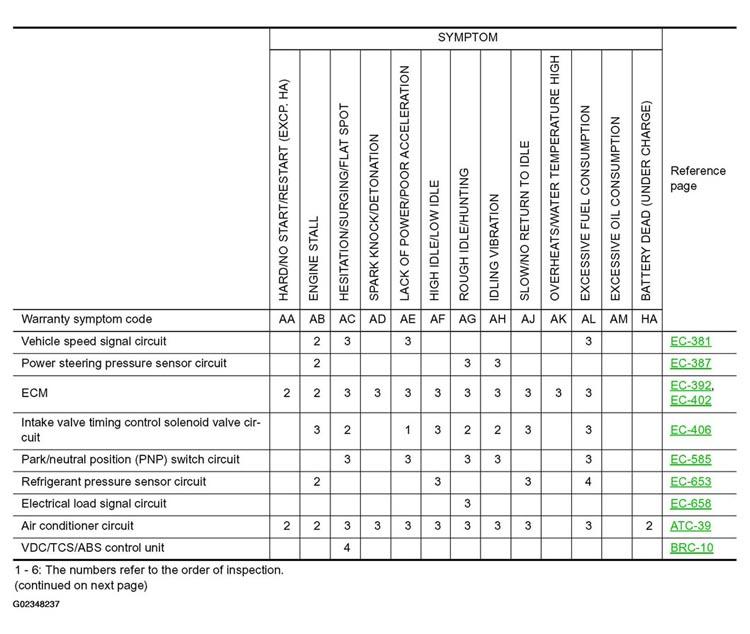

Fig 2: Symptom Matrix Chart - System - Basic Engine Control System (2 Of 2)
G02348237Courtesy of NISSAN MOTOR CO., U.S.A.
