ASCD Output

Touch "ON" and "OFF" on the screen. Check that ASCD output is as shown in table below.

ASCD OUTPUT

Operation	ON	OFF
ASCD SIGNAL	ON	OFF

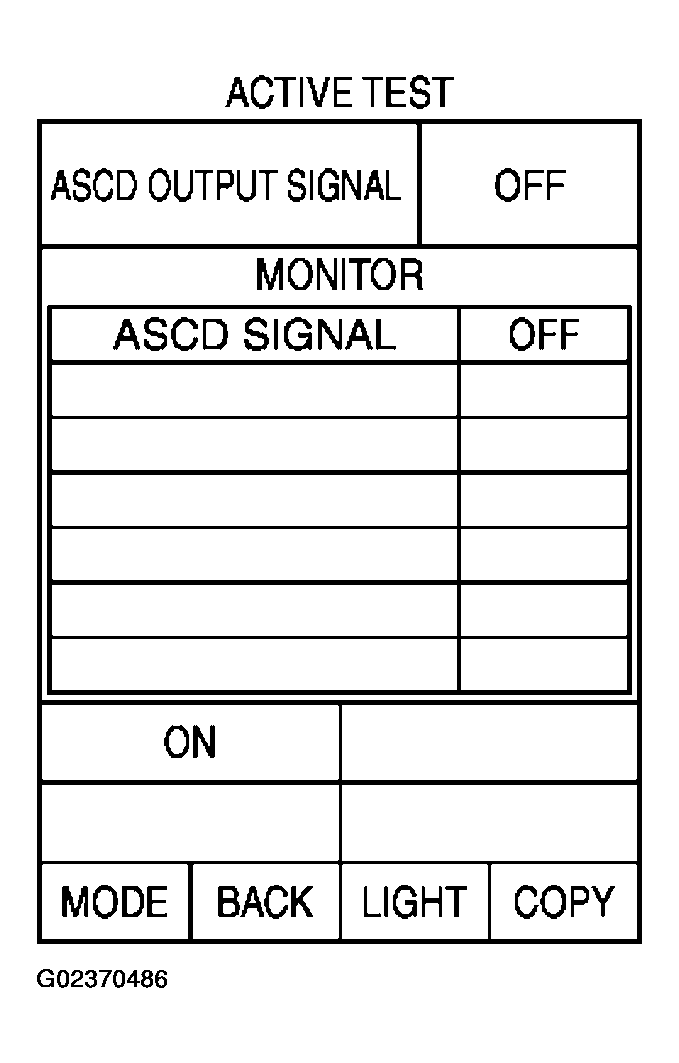

Fig 1: Consult II Display - ASCD Output

Courtesy of NISSAN MOTOR CO., U.S.A.
