Operation Procedure

  1. Connect CONSULT-II and CONSULT-II CONVERTER data link connector and start engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  2. Touch "START (NISSAN BASED VHCL)", "VDC", "ACTIVE TEST" in order on the CONSULT-II screen. If "VDC" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
    CAUTION: When "START (NISSAN BASED VHCL)" is touched immediately after starting engine or turning on switch, "VDC" might not be displayed in the system selection screen. In this case, repeat the operation from step 1.
  3. The "SELECT TEST ITEM" is displayed.
  4. Touch necessary test item.
  5. While "MAIN SIGNALS" indication is inverted, touch "START".
  6. "ACTIVE TEST" screen will be displayed so perform the following test.
    • Solenoid valve
    • VDC OFF indicator lamp
    • ABS motor
    • SLIP indicator lamp
    • ABS warning lamp
    • ASCD out put

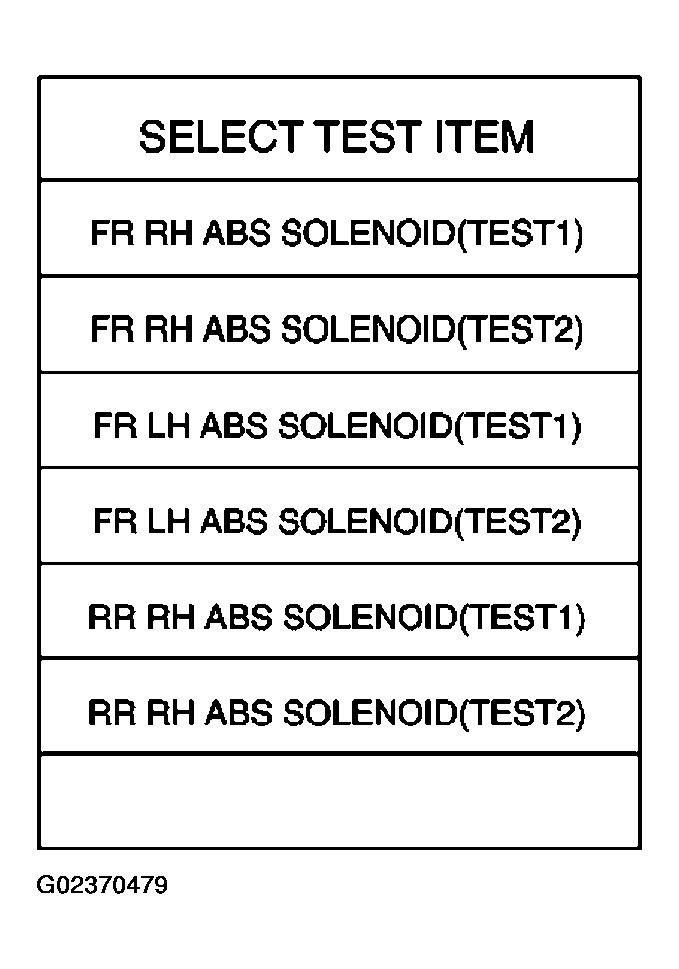

    Fig 1: Consult II Display - Select Test Item
    G02370479Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • When active test is performed while depressing the pedal, the pedal depression amount will change. This is normal.
  • "TEST IS STOPPED" is displayed 10 seconds after operation start.
  • After "TEST IS STOPPED" is displayed, to perform test again, touch "BACK" and repeat step 3.
