Inspection Procedure

Check self-diagnosis results.

Is above displayed in self-diagnosis display item?

1. YES: GO TO 2.
2. NO: INSPECTION END.

1. Disconnect VDC actuator connector E21 and VDC/TCS/ABS control unit connector, check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace terminal.
2. Reconnect connectors and Re-perform VDC/TCS/ABS control unit self-diagnosis.

OK or NG

1. OK: Connector terminal contact is loose, damaged, open or shorted.
2. NG: GO TO 3.

1. Disconnect VDC actuator connector E21 and VDC/TCS/ABS control unit connector.
2. Check continuity between VDC/TCS/ABS control unit harness connector E218 and VDC actuator harness connector E21.
   Fig 1: Checking Continuity Between VDC/TCS/ABS Control Unit Harness Connector E218 And VDC Actuator Harness Connector E21

   Courtesy of NISSAN MOTOR CO., U.S.A.

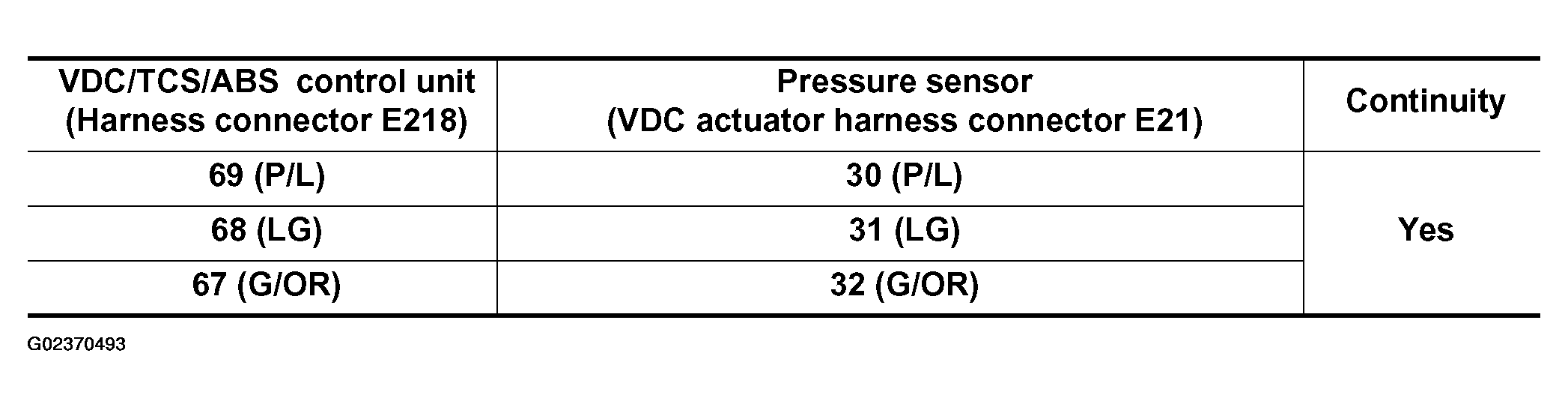

   Fig 2: Pressure Sensor Circuit Continuity Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 4.
2. NG: Open or short in harness. Repair or replace the suspect harness.

1. Connect VDC actuator connector E21 and VDC/TCS/ABS control unit connector.
2. Check pressure sensor value on "DATA MONITOR".
   DATA MONITOR



   Condition	Data monitor display
   Brake pedal depressed	Positive value
   When brake pedal is released.	Approx. 0 bar

OK or NG

1. OK: Perform VDC/TCS/ABS control unit self-diagnosis again.
2. NG: Pressure sensor malfunction. Replace VDC actuator (inside pressure sensor).
