With CONSULT-II

  1. Check the coolant level in the reservoir tank and radiator.

    Allow engine to cool before checking coolant level.

    If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to "DIAGNOSTIC PROCEDURE ".

  2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to "DIAGNOSTIC PROCEDURE ".
  3. Turn ignition switch ON.

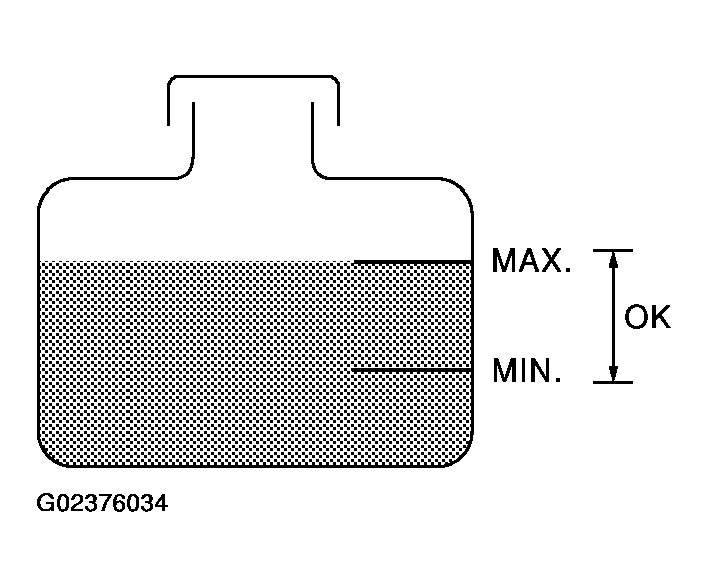

    Fig 1: Identifying Coolant Level In Reservoir Tank
    G02376034Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Perform "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.
    CAUTION: Never change cooling fan speed from "LOW" to "HI" or from "HI" to "LOW" directly. Change the speed through "MID" to prevent cooling fan motor from damage.
  5. If the results are NG, go to "DIAGNOSTIC PROCEDURE ".

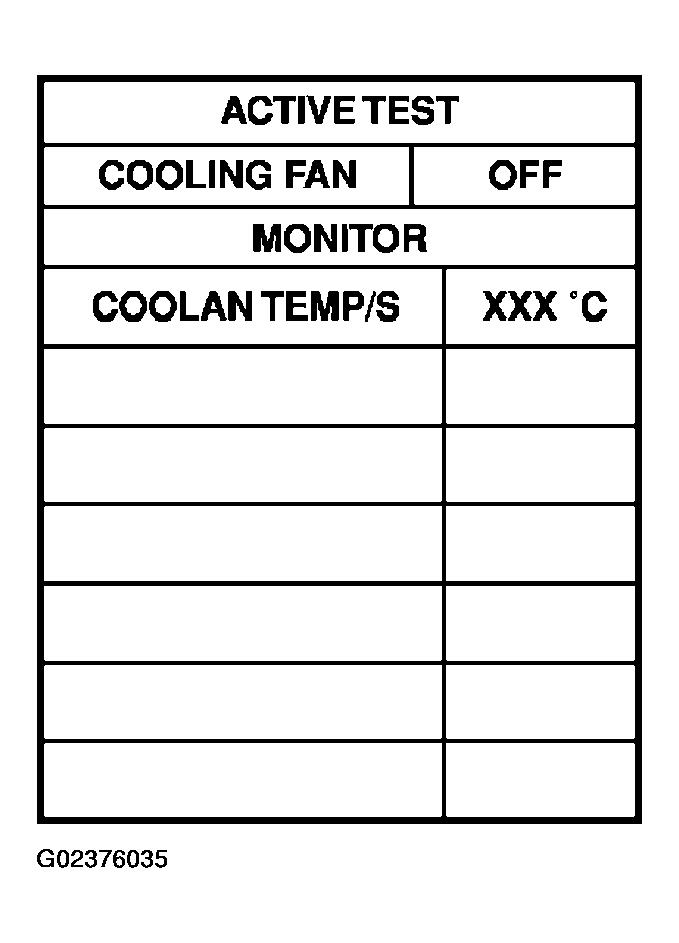

    Fig 2: Display Cooling Fan In Active Test Mode
    G02376035Courtesy of NISSAN MOTOR CO., U.S.A.
