Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

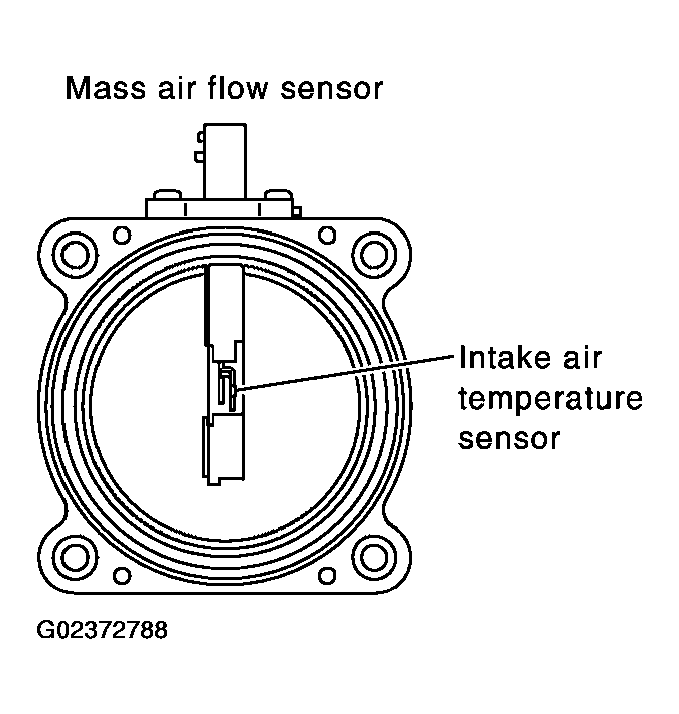

Fig 1: Identifying Intake Air Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

INTAKE AIR TEMPERATURE REFERENCE DATA >

Intake air temperature °C (°F)	Resistance kΩ
25 (77)	1.94-2.06

If NG, replace mass air flow sensor (with intake air temperature sensor).

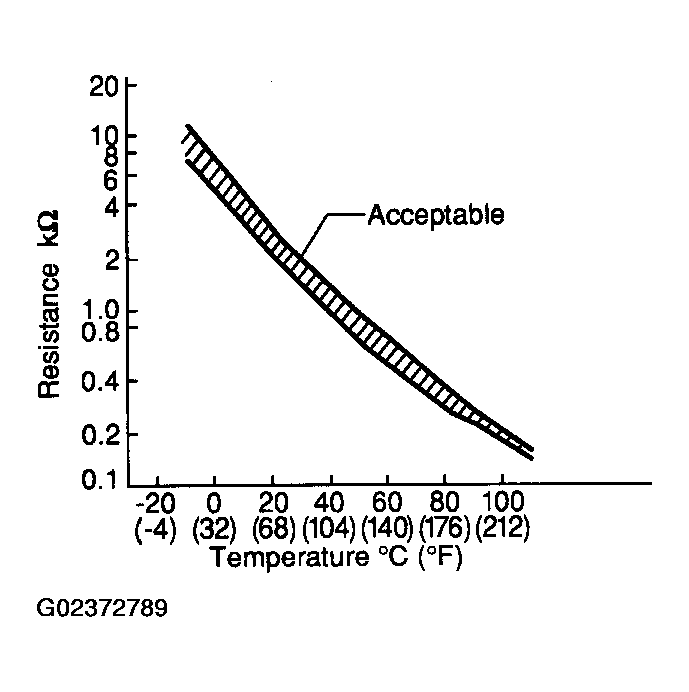

Fig 2: Intake Air Temperature Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
