Detailed Procedure

  1. INSPECTION START
    1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.
    2. Open engine hood and check the following:
      • Harness connectors for improper connections
      • Wiring harness for improper connections, pinches and cut
      • Vacuum hoses for splits, kinks and improper connections
      • Hoses and ducts for leaks
      • Air cleaner clogging
      • Gasket
    3. Confirm that electrical or mechanical loads are not applied.
      • Headlamp switch is OFF.
      • Air conditioner switch is OFF.
      • Rear window defogger switch is OFF.
      • Steering wheel is in the straight-ahead position, etc.

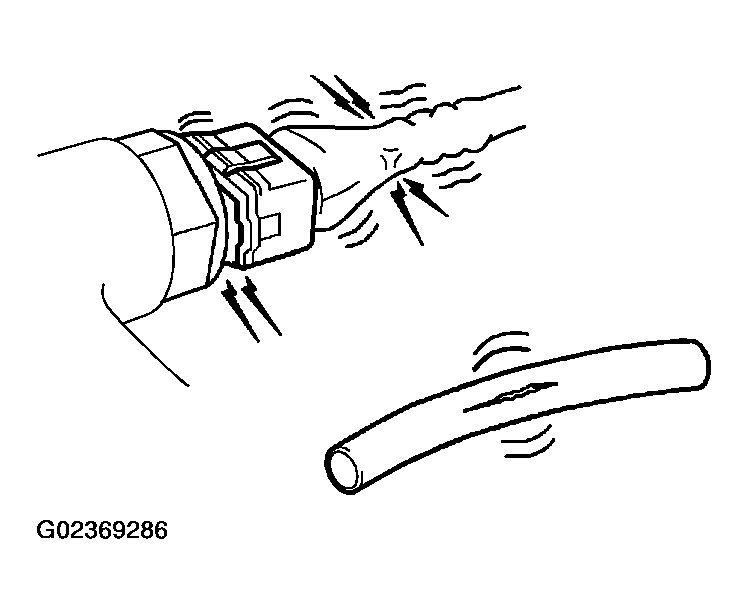

      Fig 1: Identifying Connector
      G02369286Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.

      Ensure engine stays below 1, 000 rpm.

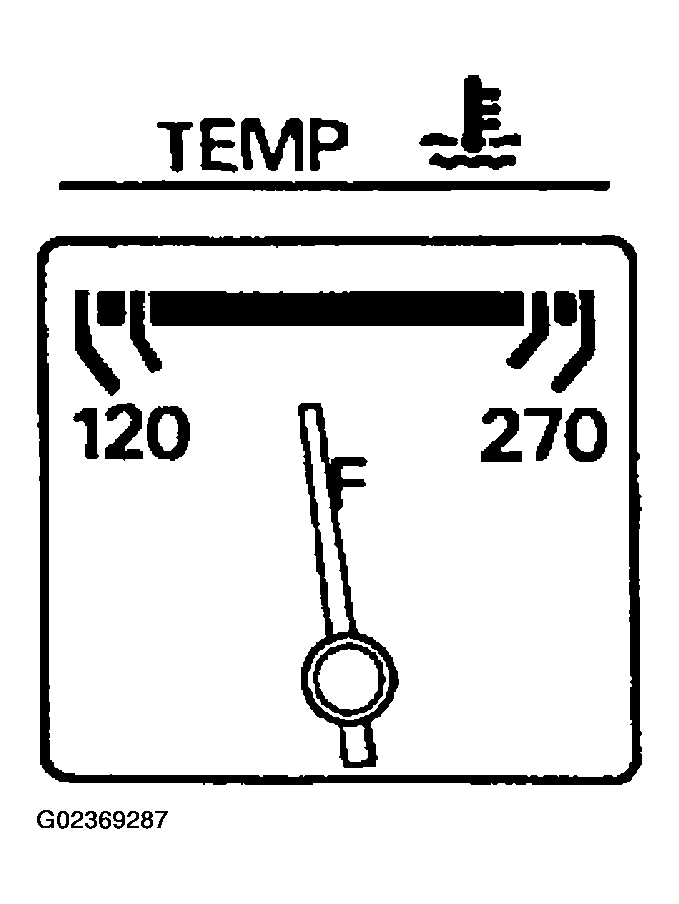

      Fig 2: Engine Coolant Temperature Indicator Points
      G02369287Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Run engine at about 2, 000 rpm for about 2 minutes under no load.
    6. Make sure that no DTC is displayed with CONSULT-II or GST.

    OK or NG

    1. OK: GO TO  3.
    2. NG: GO TO 2.

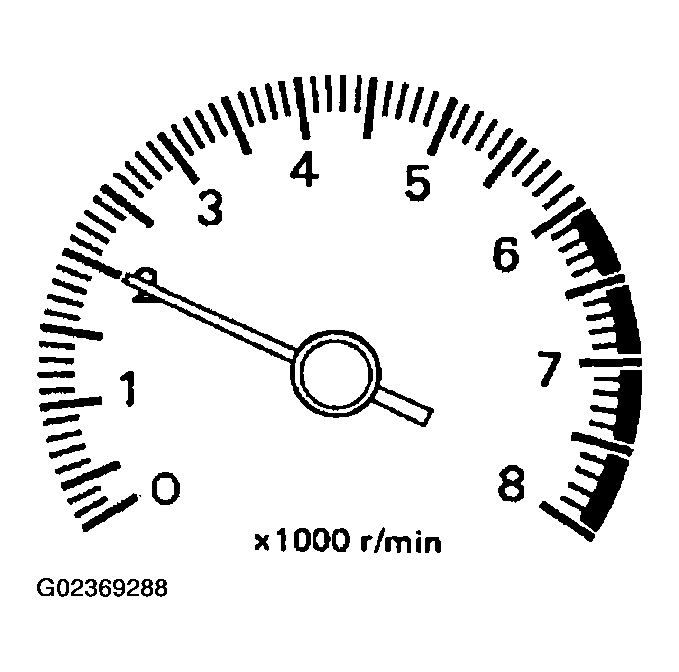

    Fig 3: Identifying Running Engine Rpm
    G02369288Courtesy of NISSAN MOTOR CO., U.S.A.
  2. REPAIR OR REPLACE

    Repair or replace components as necessary according to corresponding Diagnostic Procedure.

    1. GO TO 3.
  3. CHECK TARGET IDLE SPEED

    With CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no load.
    2. Rev engine (2, 000 to 3, 000 rpm) two or three times under no load, then run engine at idle speed for about 1 minute.

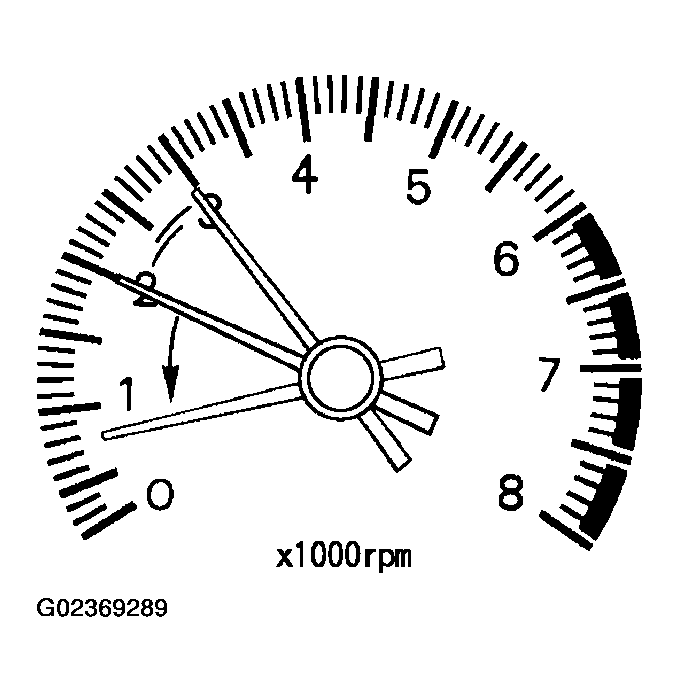

      Fig 4: Checking Target Idle Speed
      G02369289Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Read idle speed in "DATA MONITOR" mode with CONSULT-II. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      1. 650 +/- 50 rpm (in P or N position)

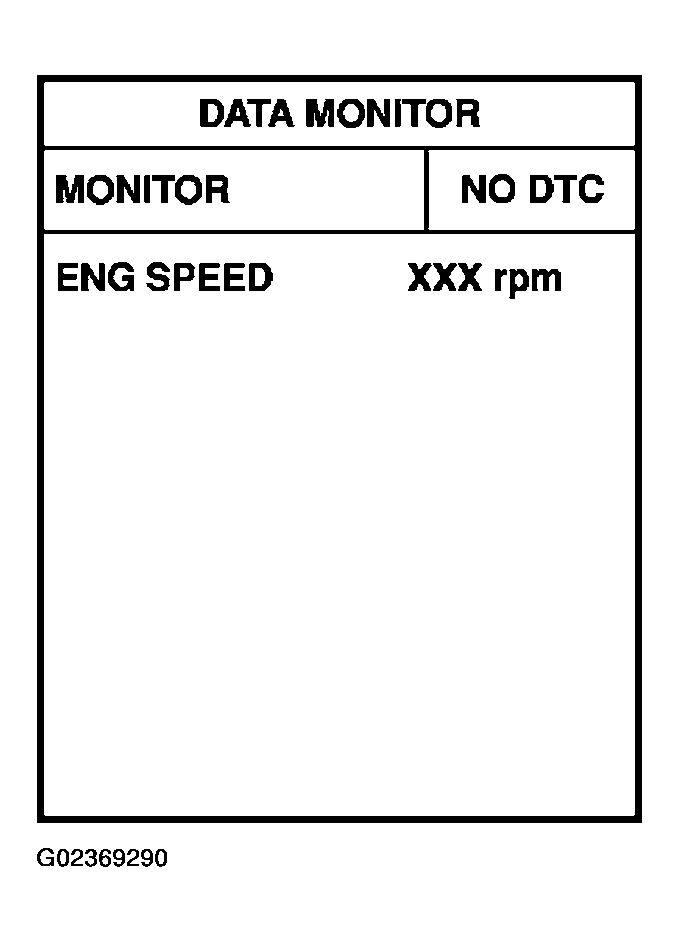

      Fig 5: Data Monitor Mode Display With Consult-II
      G02369290Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no load.
    2. Rev engine (2, 000 to 3, 000 rpm) two or three times under no load, then run engine at idle speed for about 1 minute.
    3. Check idle speed. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      1. 650 +/- 50 rpm (in P or N position)

    OK or NG

    1. OK: GO TO  10.
    2. NG: GO TO 4.
  4. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Stop engine.
    2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
      1. GO TO 5.
  5. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".

    1. GO TO 6.
  6. PERFORM IDLE AIR VOLUME LEARNING

    Perform "IDLE AIR VOLUME LEARNING ".

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    1. Yes: GO TO 7.
    2. No:
      1. Follow the instruction of Idle Air Volume Learning.
      2. GO TO  4.
  7. CHECK TARGET IDLE SPEED AGAIN

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Read idle speed in "DATA MONITOR" mode with CONSULT-II. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      1. 650 +/- 50 rpm (in P or N position)

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Check idle speed. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      1. 650 +/- 50 rpm (in P or N position)

    OK or NG

    1. OK: GO TO  10.
    2. NG: GO TO 8.

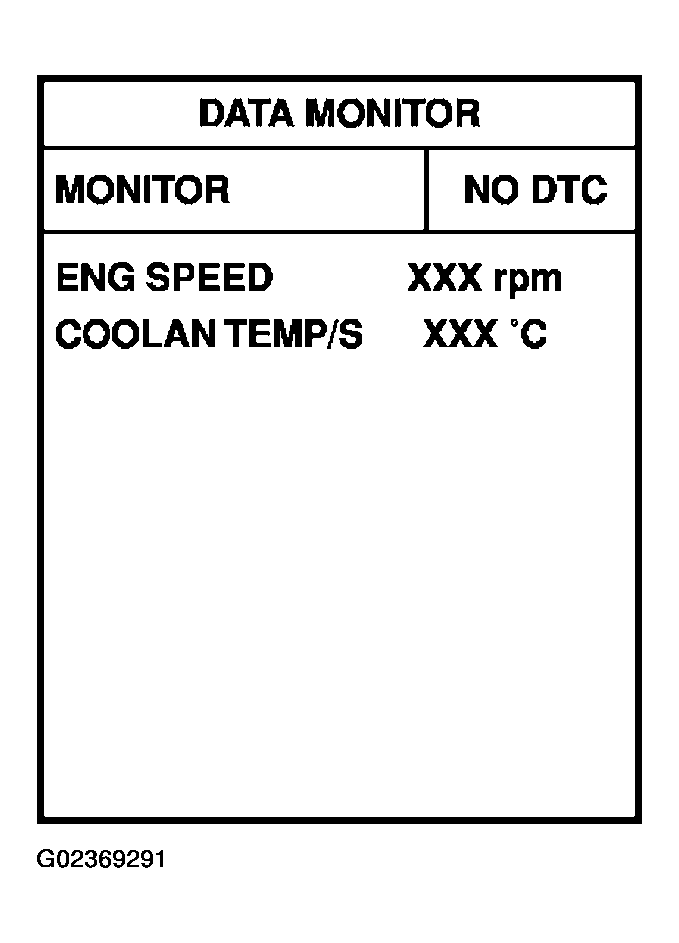

    Fig 6: Data Monitor Mode Display Without Consult-II
    G02369291Courtesy of NISSAN MOTOR CO., U.S.A.
  8. DETECT MALFUNCTIONING PART

    Check the Following.

    OK or NG

    1. OK: GO TO 9.
    2. NG:
      1. Repair or replace.
      2. GO TO  4.
  9. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to "ECM RE-COMMUNICATING FUNCTION ".
      1. GO TO  4.
  10. CHECK IGNITION TIMING
    1. Run engine at idle.
    2. Check ignition timing with a timing light. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      1. 12 +/- 5° BTDC (in P or N position)

    OK or NG

    1. OK (With CONSULT-II): GO TO  19.
    2. OK (Without CONSULT-II): GO TO  20.
    3. NG: GO TO 11.
    Fig 7: Checking Ignition Timing
    G02369292Courtesy of NISSAN MOTOR CO., U.S.A.
  11. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Stop engine.
    2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
      1. GO TO 12.
  12. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".

    1. GO TO 13.
  13. PERFORM IDLE AIR VOLUME LEARNING

    Perform "IDLE AIR VOLUME LEARNING ".

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    1. Yes: GO TO 14.
    2. No:
      1. Follow the instruction of Idle Air Volume Learning.
      2. GO TO  4.
  14. CHECK TARGET IDLE SPEED AGAIN

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Read idle speed in "DATA MONITOR" mode with CONSULT-II. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      1. 650 +/- 50 rpm (in P or N position)

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Check idle speed. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      1. 650 +/- 50 rpm (in P or N position)

    OK or NG

    1. OK: GO TO 15.
    2. NG: GO TO  21.
    Fig 8: Data Monitor With Consult-II
    G02369293Courtesy of NISSAN MOTOR CO., U.S.A.
  15. CHECK IGNITION TIMING AGAIN
    1. Run engine at idle.
    2. Check ignition timing with a timing light. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      1. 12 +/- 5° BTDC (in P or N position)

    OK or NG

    1. OK (With CONSULT-II): GO TO  19.
    2. OK (Without CONSULT-II): GO TO  20.
    3. NG: GO TO 16.

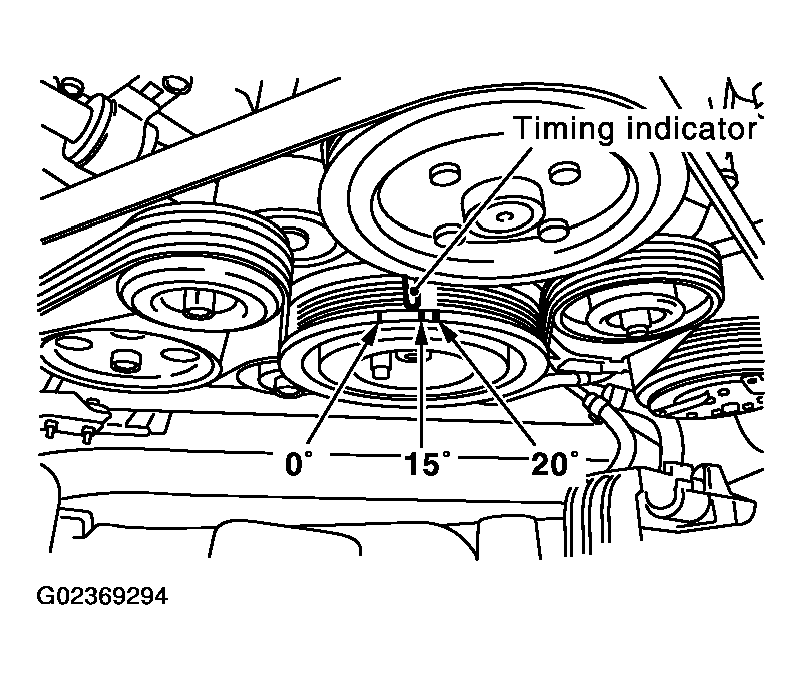

    Fig 9: Checking Ignition Timing Again
    G02369294Courtesy of NISSAN MOTOR CO., U.S.A.
  16. CHECK TIMING CHAIN INSTALLATION

    Check timing chain installation. Refer to "TIMING CHAIN ".

    OK or NG

    1. OK: GO TO 17.
    2. NG:
      1. Repair the timing chain installation.
      2. GO TO  4.
  17. DETECT MALFUNCTIONING PART

    Check the following.

    OK or NG

    1. OK: GO TO 18.
    2. NG:
      1. Repair or replace.
      2. GO TO  4.
  18. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to "ECM RE-COMMUNICATING FUNCTION ".
      1. GO TO  4.
  19. CHECK HEATED OXYGEN SENSOR 1 (BANK 1) SIGNAL

    With CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no load
    2. See HO2S1 MNTR (B1) in "DATA MONITOR" mode.
    3. Running engine at 2, 000 rpm under no load (The engine is warmed up to normal operating temperature.), check that the monitor fluctuates between LEAN and RICH more than 5 times during 10 seconds.
      1. 1 time: RICH --> LEAN --> RICH
      2. 2 times: RICH --> LEAN --> RICH --> LEAN --> RICH

    OK or NG

    1. OK: GO TO  21.
    2. NG (Monitor does not fluctuate.): GO TO  23.
    3. NG (Monitor fluctuates less than 5 times.): GO TO  31.
    Fig 10: Data Monitor Mode Display
    G02369295Courtesy of NISSAN MOTOR CO., U.S.A.
  20. CHECK HEATED OXYGEN SENSOR 1 (BANK 1) SIGNAL

    Without CONSULT-II

    1. Stop engine and set ECM to Self Diagnostic Test Mode II (Heated oxygen sensor 1 monitor). Refer to "HOW TO SWITCH DIAGNOSTIC TEST MODE ".
    2. Start engine and run it at about 2, 000 rpm for about 2 minutes under no load.
    3. Running engine at 2, 000 rpm under no load (The engine is warmed up to normal operating temperature.), check that the MIL comes on more than 5 times during 10 seconds.

    OK or NG

    1. OK: GO TO  22.
    2. NG (MIL does not come on): GO TO  23.
    3. NG (MIL comes on less than 5 times): GO TO  31.
  21. CHECK HEATED OXYGEN SENSOR 1 (BANK 2) SIGNAL

    With CONSULT-II

    1. See HO2S1 MNTR (B2) in "DATA MONITOR" mode.
    2. Running engine at 2, 000 rpm under no load (The engine is warmed up to normal operating temperature.), check that the monitor fluctuates between LEAN and RICH more than 5 times during 10 seconds.
      1. 1 time: RICH --> LEAN --> RICH
      2. 2 times: RICH --> LEAN --> RICH --> LEAN --> RICH

    OK or NG

    1. OK: INSPECTION END
    2. NG (Monitor does not fluctuate.): GO TO  24.
    3. NG (Monitor fluctuates less than 5 times.): GO TO  31.

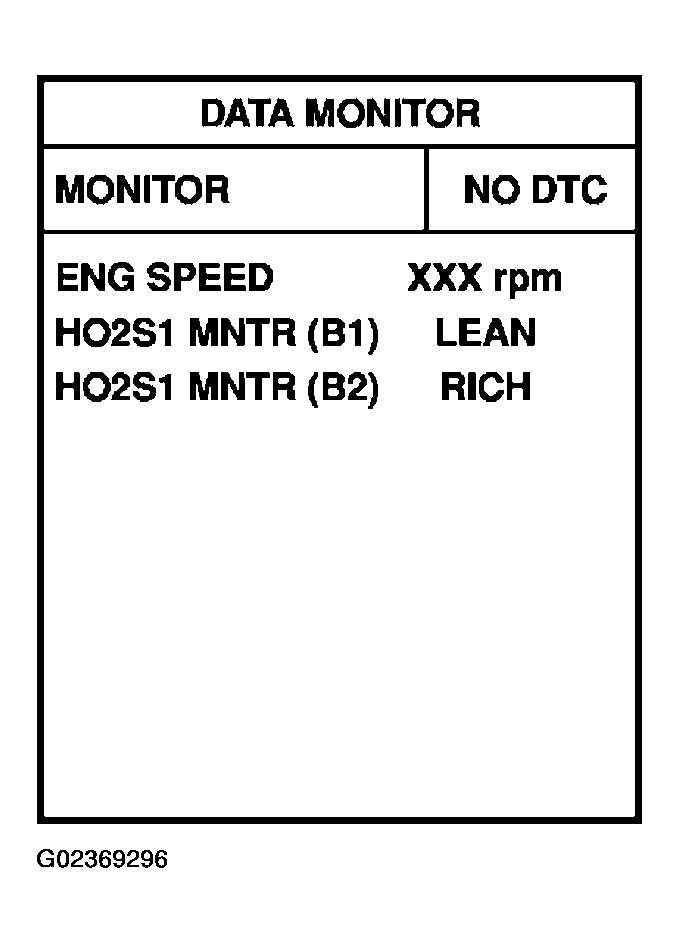

    Fig 11: Data Monitor Mode Lean And Rich Display
    G02369296Courtesy of NISSAN MOTOR CO., U.S.A.
  22. CHECK HEATED OXYGEN SENSOR 1 (BANK 2) SIGNAL

    Without CONSULT-II

    1. Switch the monitored sensor from bank 1 to bank 2. Refer to "HOW TO SWITCH MONITORED SENSOR FROM BANK 1 TO BANK 2 OR VICE VERSA ".
    2. Running engine at 2, 000 rpm under no load (The engine is warmed up to normal operating temperature.), check that the MIL comes on more than 5 times during 10 seconds.

    OK or NG

    1. OK: INSPECTION END
    2. NG (MIL does not come on): GO TO  24.
    3. NG (MIL comes on less than 5 times): GO TO  31.
  23. CHECK HEATED OXYGEN SENSOR 1 (BANK 1) HARNESS
    1. Turn ignition switch OFF and disconnect battery ground cable.
    2. Disconnect ECM harness connector.
    3. Disconnect heated oxygen sensor 1 (bank 1) harness connector.
    4. Check harness continuity between ECM terminal 16 and heated oxygen sensor 1 (bank 1) terminal 1. Refer to WIRING DIAGRAM , "BANK 1 ".
      1. Continuity should exist.
    5. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  25.
    2. NG:
      1. Repair or replace harness between ECM and heated oxygen sensor 1 (bank 1).
      2. GO TO  4.
  24. CHECK HEATED OXYGEN SENSOR 1 (BANK 2) HARNESS
    1. Turn ignition switch OFF and disconnect battery ground cable.
    2. Disconnect ECM harness connector.
    3. Disconnect heated oxygen sensor 1 (bank 2) harness connector.
    4. Check harness continuity between ECM terminal 35 and heated oxygen sensor 1 (bank 2) terminal 1. Refer to WIRING DIAGRAM , "BANK 2 ".
      1. Continuity should exist.
    5. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 25.
    2. NG:
      1. Repair or replace harness between ECM and heated oxygen sensor 1 (bank 2).
      2. GO TO  4.
  25. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Reconnect ECM harness connector and heated oxygen sensor 1 harness connector.
    2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
      1. GO TO 26.
  26. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".

    1. GO TO 27.
  27. PERFORM IDLE AIR VOLUME LEARNING

    Refer to "IDLE AIR VOLUME LEARNING ".

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    1. Yes (With CONSULT-II): GO TO 28.
    2. Yes (Without CONSULT-II): GO TO  29.
    3. No:
      1. Follow the instruction of Idle Air Volume Learning.
      2. GO TO  4.
  28. CHECK CO%

    With CONSULT-II

    1. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.
    2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
    3. Select "ENG COOLANT TEMP" in "ACTIVE TEST" mode.
    4. Set "ENG COOLANT TEMP" to 5°C (41°F) by touching "DOWN" and "Qd".
    5. Start engine and rev it (2, 000 to 3, 000 rpm) two or three times under no load, then run engine at idle speed.
    6. Check CO%.
      1. Idle CO: 0.7 - 9.9% and engine runs smoothly.

    OK or NG

    1. OK: GO TO  31.
    2. NG: GO TO  30.

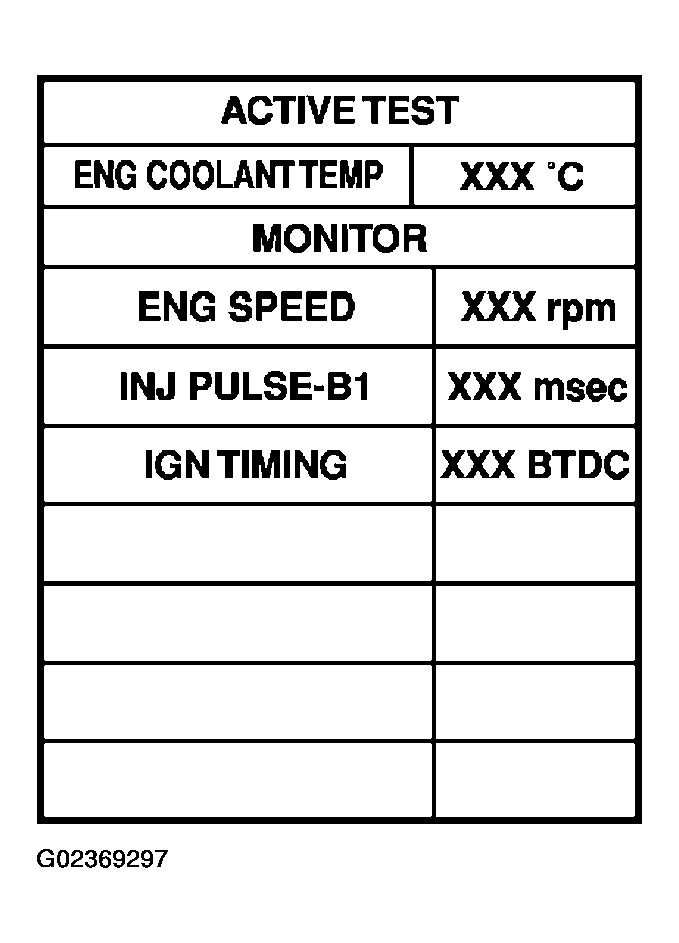

    Fig 12: Active Test Mode Display
    G02369297Courtesy of NISSAN MOTOR CO., U.S.A.
  29. CHECK CO%

    Without CONSULT-II

    1. Start engine and warm it up until engine coolant temperature indicator points to the middle of gauge.
    2. Turn ignition switch OFF.
    3. Disconnect engine coolant temperature sensor harness connector.
    4. Connect a resistor (4.4 kΩ) between terminals of engine coolant temperature sensor harness connector.
    5. Start engine and rev it (2, 000 to 3, 000 rpm) two or three times under no load, then run engine at idle speed.
    6. Check CO%.
      1. Idle CO: 0.7 - 9.9% and engine runs smoothly.
    7. After checking CO%, turn ignition switch OFF, disconnect the resistor from the terminals of engine coolant temperature sensor harness connector, and then connect engine coolant temperature sensor harness connector to engine coolant temperature sensor.

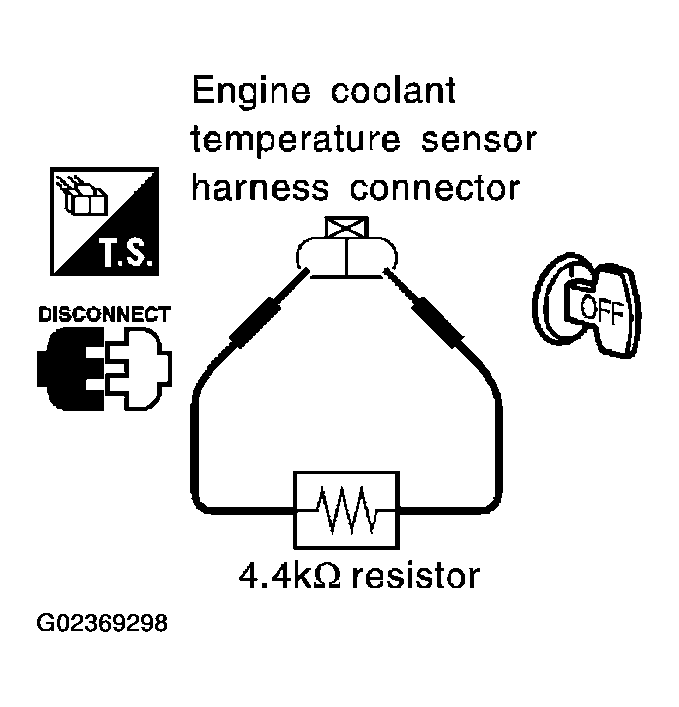

      Fig 13: Connecting Resistor (4.4 KΩ) Between Terminals Of Engine Coolant Temperature Sensor Harness Connector
      G02369298Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  31.
    2. NG: GO TO 30.
  30. RECONNECT HEATED OXYGEN SENSOR 1 HARNESS CONNECTOR
    1. Turn ignition switch OFF.
    2. Reconnect heated oxygen sensor 1 harness connector.
      1. GO TO  34.
  31. REPLACE HEATED OXYGEN SENSOR 1
    1. Stop engine.
    2. Replace heated oxygen sensor 1 on the malfunctioning bank.

      With CONSULT-II: GO TO 32.

      Without CONSULT-II: GO TO  33.

  32. CHECK HEATED OXYGEN SENSOR 1 (BANK 1) / (BANK 2) SIGNAL

    With CONSULT-II

    1. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.
    2. See HO2S1 MNTR (B1)/(B2) in "DATA MONITOR" mode.
    3. Running engine at 2, 000 rpm under no load (The engine is warmed up to normal operating temperature.), check that the monitor fluctuates between LEAN and RICH more than 5 times during 10 seconds.
      1. 1 time: RICH --> LEAN --> RICH
      2. 2 times: RICH --> LEAN --> RICH --> LEAN --> RICH

    OK or NG

    1. OK: GO TO  4.
    2. NG: GO TO  34.

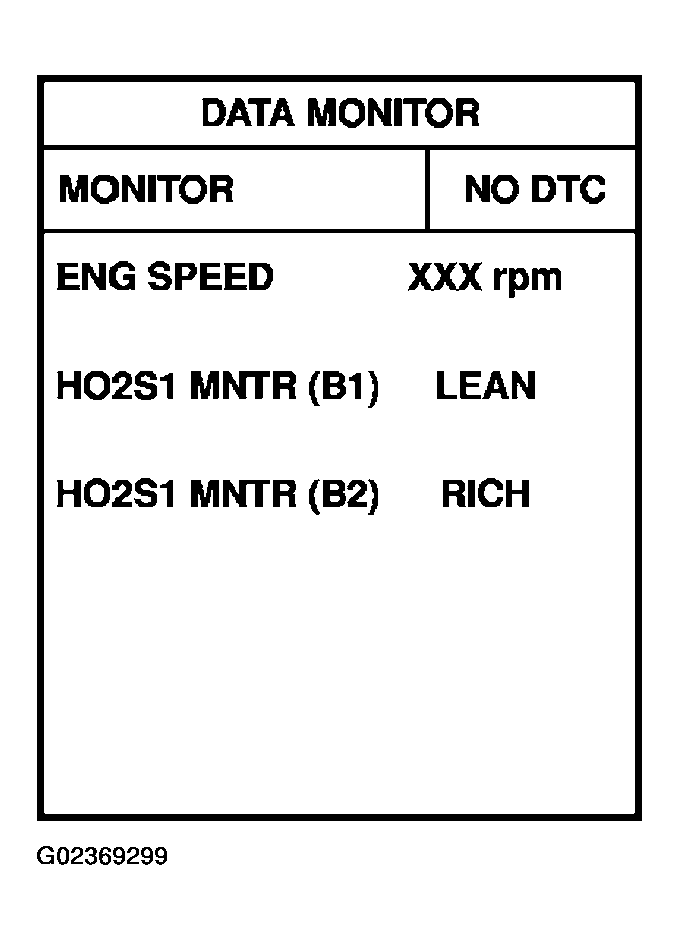

    Fig 14: Data Monitor Mode Display
    G02369299Courtesy of NISSAN MOTOR CO., U.S.A.
  33. CHECK HEATED OXYGEN SENSOR 1 (BANK 1) / (BANK 2) SIGNAL

    Without CONSULT-II

    1. Set ECM to Self Diagnostic Test Mode II (Heated oxygen sensor 1 monitor). Refer to "HOW TO SWITCH DIAGNOSTIC TEST MODE ".
    2. Switch the monitored sensor to the malfunctioning bank. Refer to "HOW TO SWITCH MONITORED SENSOR FROM BANK 1 TO BANK 2 OR VICE VERSA ".
    3. Running engine at 2, 000 rpm under no load (The engine is warmed up to normal operating temperature.), check that the MIL comes on more than 5 times during 10 seconds.

    OK or NG

    1. OK: GO TO  4.
    2. NG: GO TO 34.
  34. DETECT MALFUNCTIONING PART

    Check the following.

    OK or NG

    1. OK: GO TO  36.
    2. NG:
      1. Repair or replace.
      2. GO TO 35.
  35. ERASE UNNECESSARY DTC

    After this inspection, unnecessary DTC might be displayed.

    Erase the stored memory in ECM and TCM. Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION " and "HOW TO ERASE DIAGNOSTIC TROUBLE CODES ".

    1. GO TO  4.
  36. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to "ECM RE-COMMUNICATING FUNCTION ".
      1. GO TO  4.
