Engine Control System - Introduction
>>
Engine Control System
>>
Electronic Ignition (El) System
>>
Input/Output Signal Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Input/Output Signal Chart

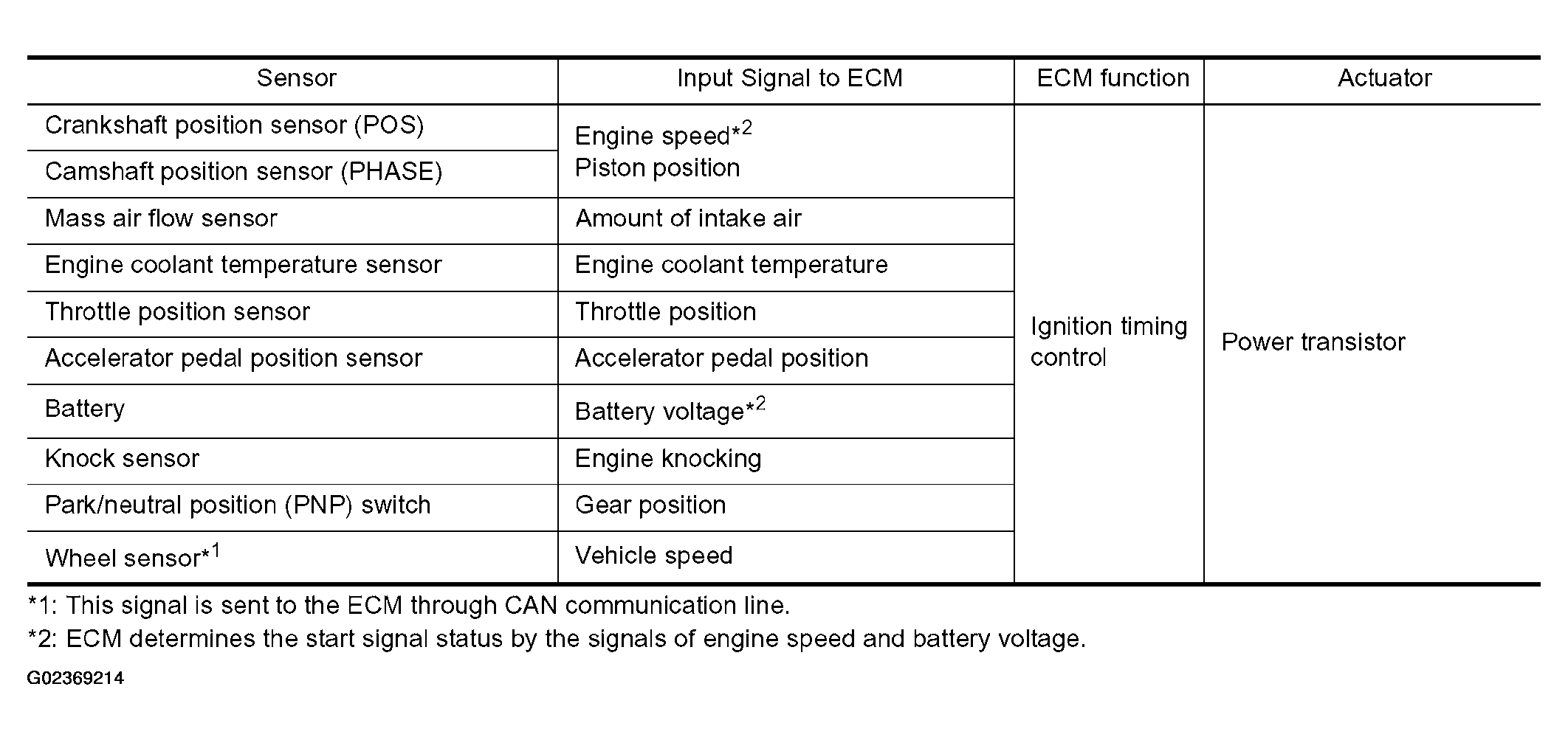

Fig 1: Electronic Ignition (El) System - Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
