Inspection Procedure
NOTE:

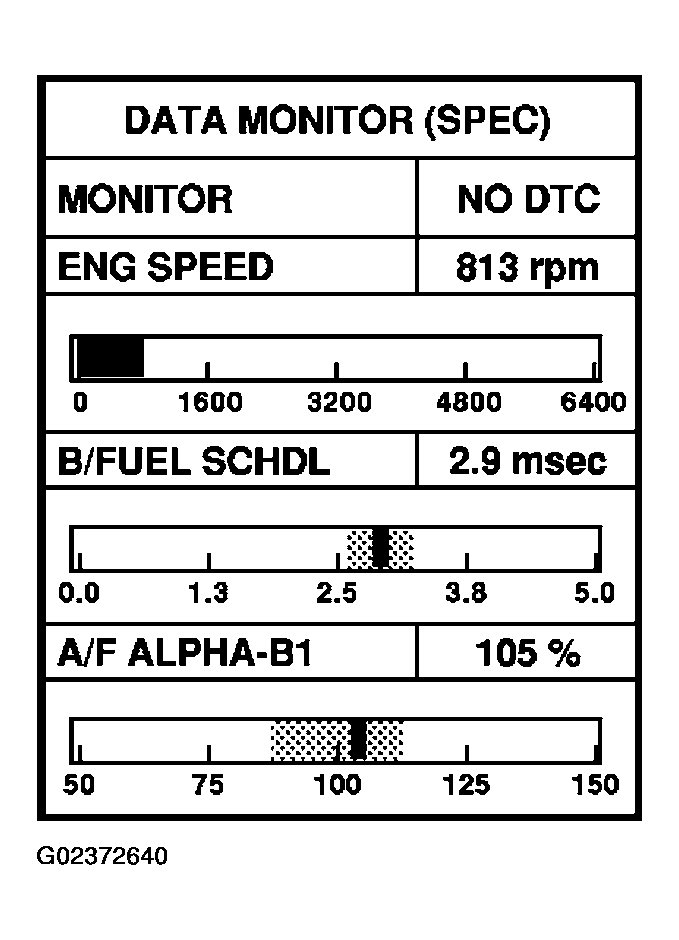

Perform "DATA MONITOR (SPEC)" mode in maximum scale display.
- Perform "BASIC SERVICE PROCEDURE ".
- Confirm that the testing conditions indicated above are met.
- Select "B/FUEL SCHDL", "A/F ALPHA-B1", "A/F ALPHA-B2" and "MAS A/F SE-B1" in "DATA MONITOR (SPEC)" mode with CONSULT-II.
- Make sure that monitor items are within the SP value.
- If NG, go to "DIAGNOSTIC PROCEDURE ".
