Test Item

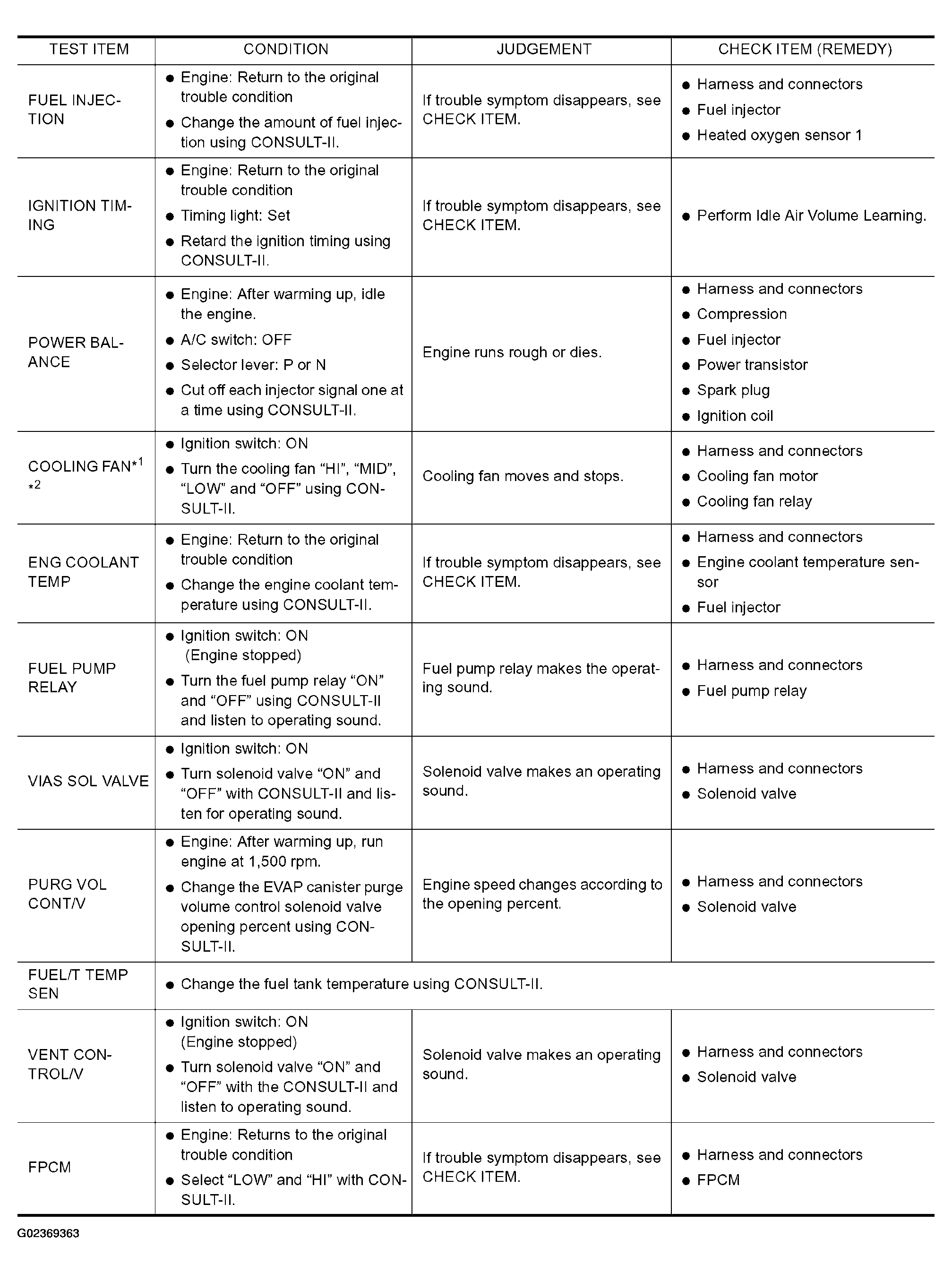

Fig 1: Active Test Mode - Test Item Condition (1 Of 2)
G02369363Courtesy of NISSAN MOTOR CO., U.S.A.

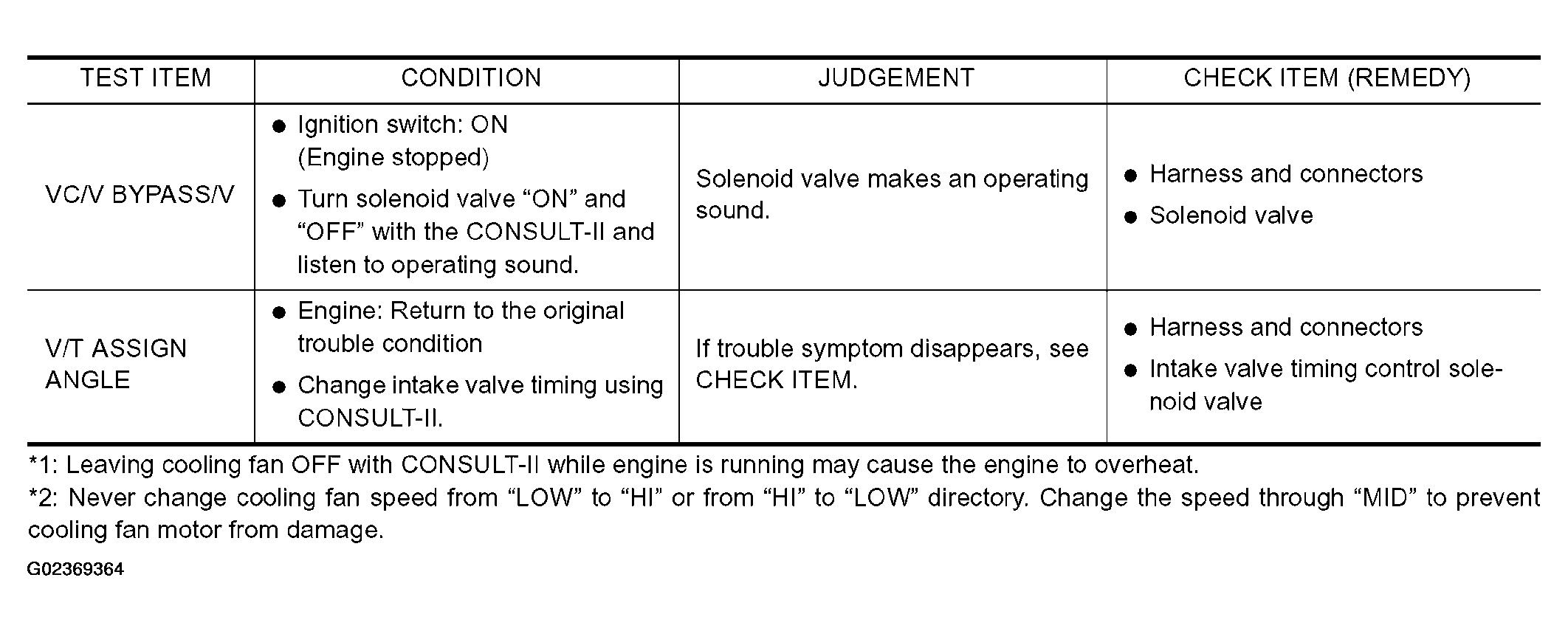

Fig 2: Active Test Mode - Test Item Condition (2 Of 2)
G02369364Courtesy of NISSAN MOTOR CO., U.S.A.
