Monitored Item

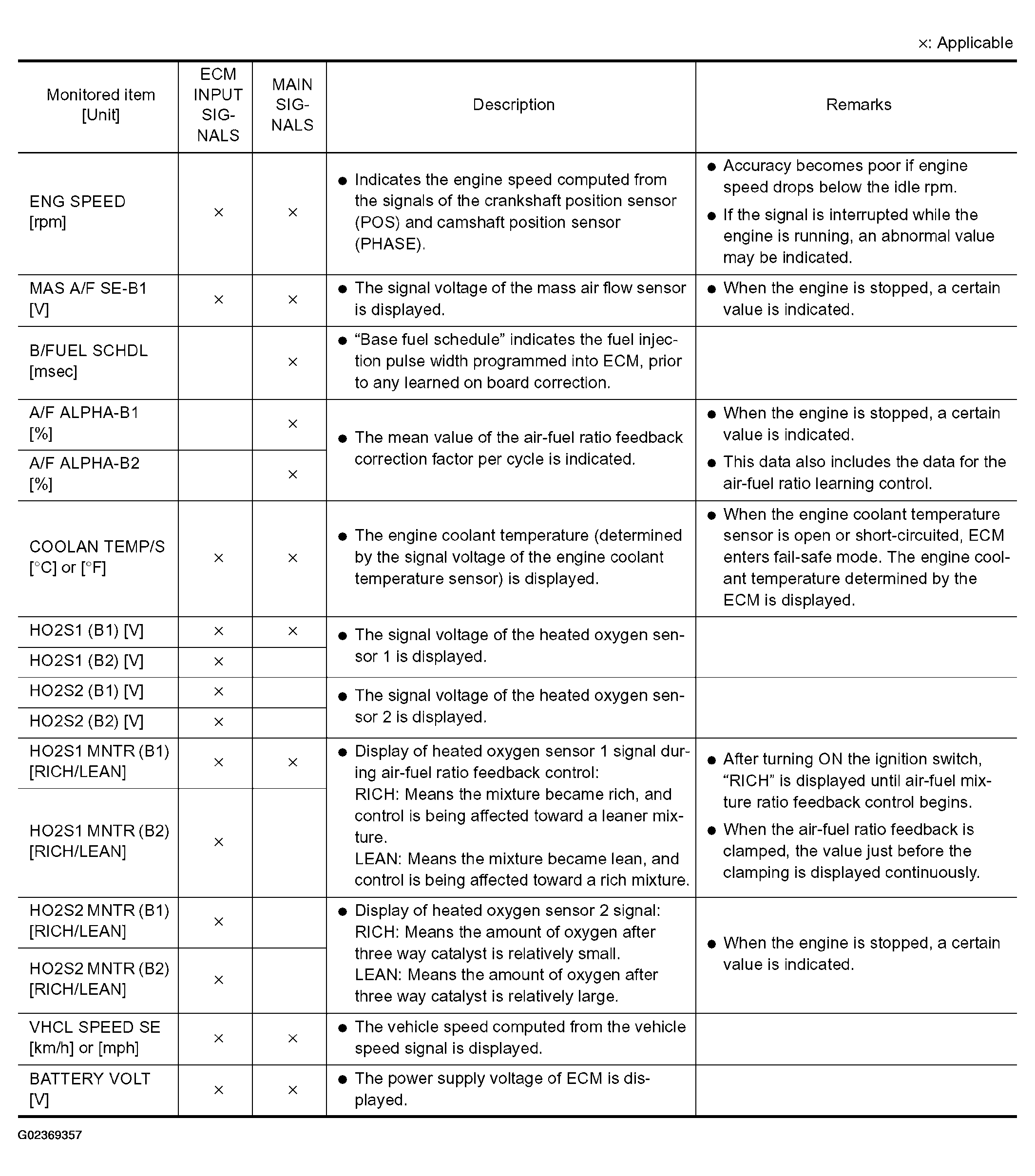

Fig 1: Monitored Item Description - Data Monitor Mode(2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

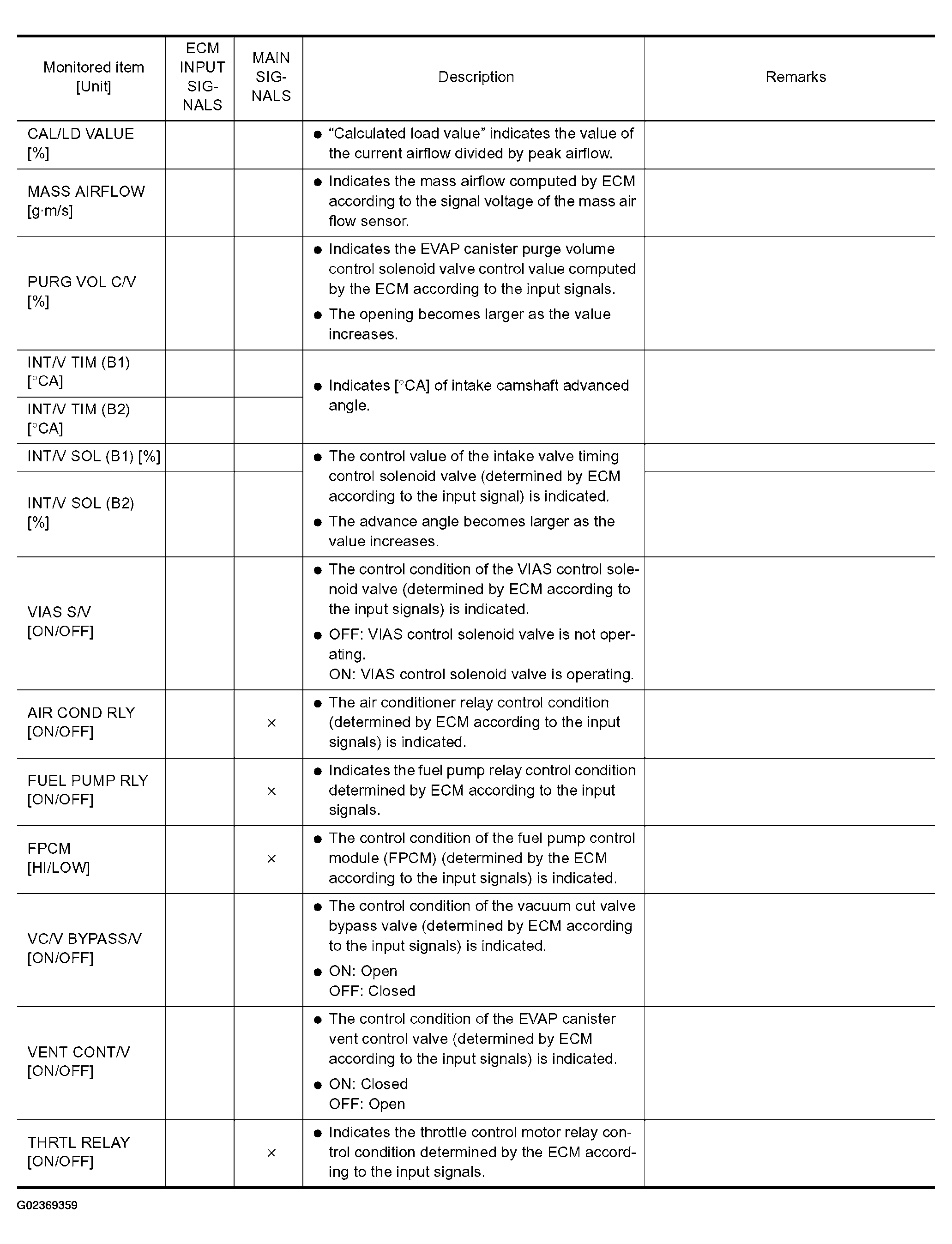

Fig 2: Monitored Item Description - Data Monitor Mode (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

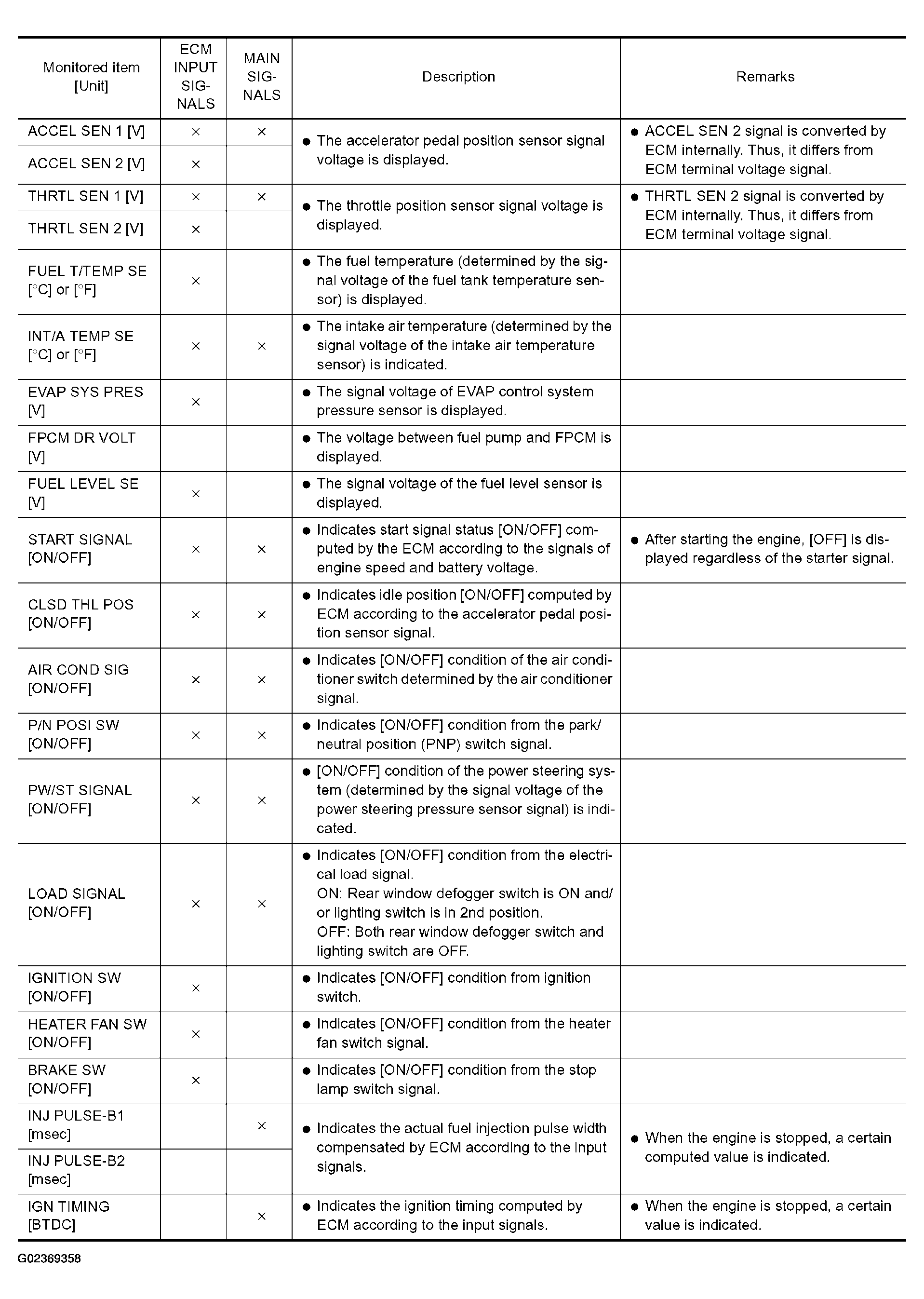

Fig 3: Monitored Item Description - Data Monitor Mode (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

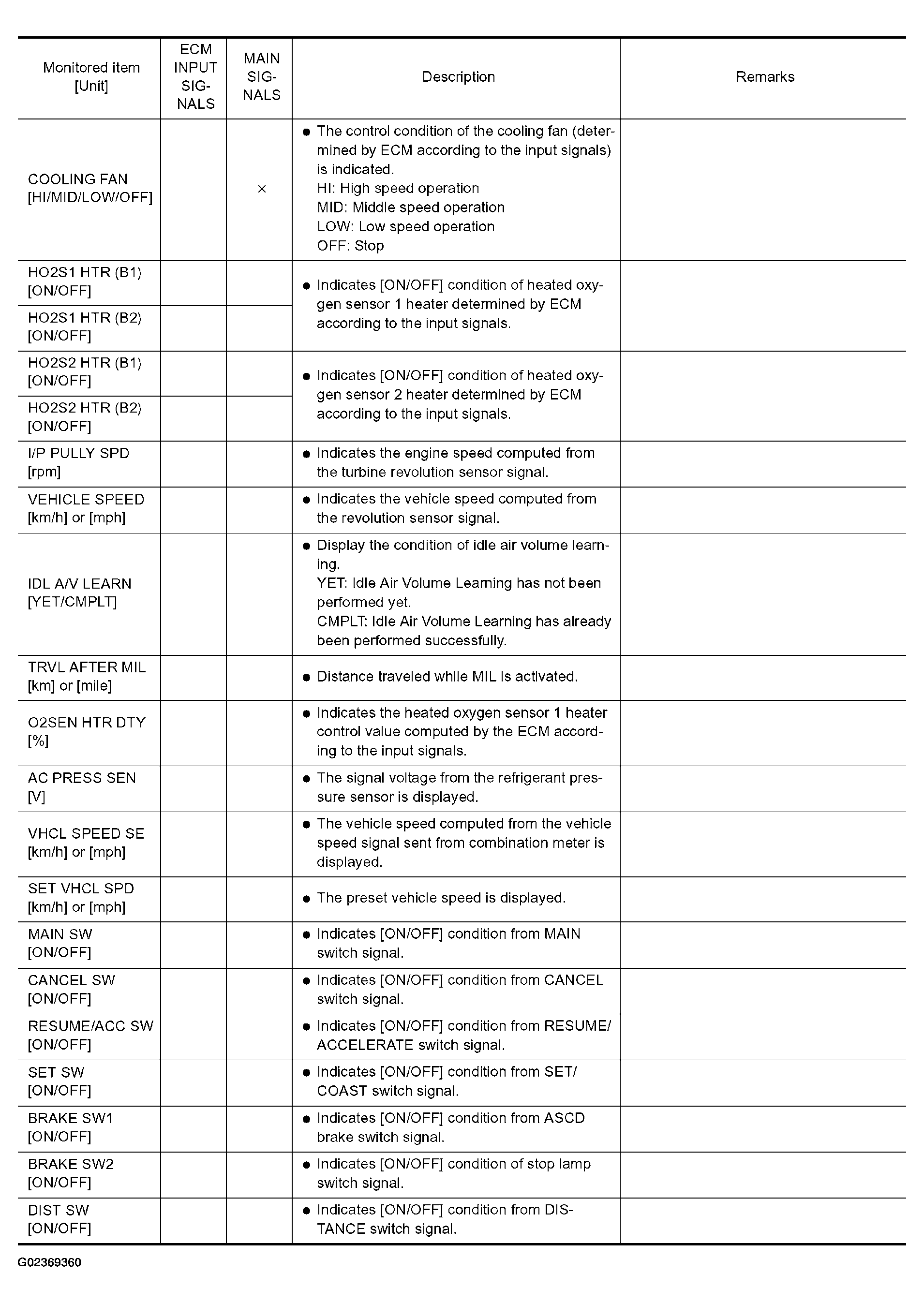

Fig 4: Monitored Item Description - Data Monitor Mode (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

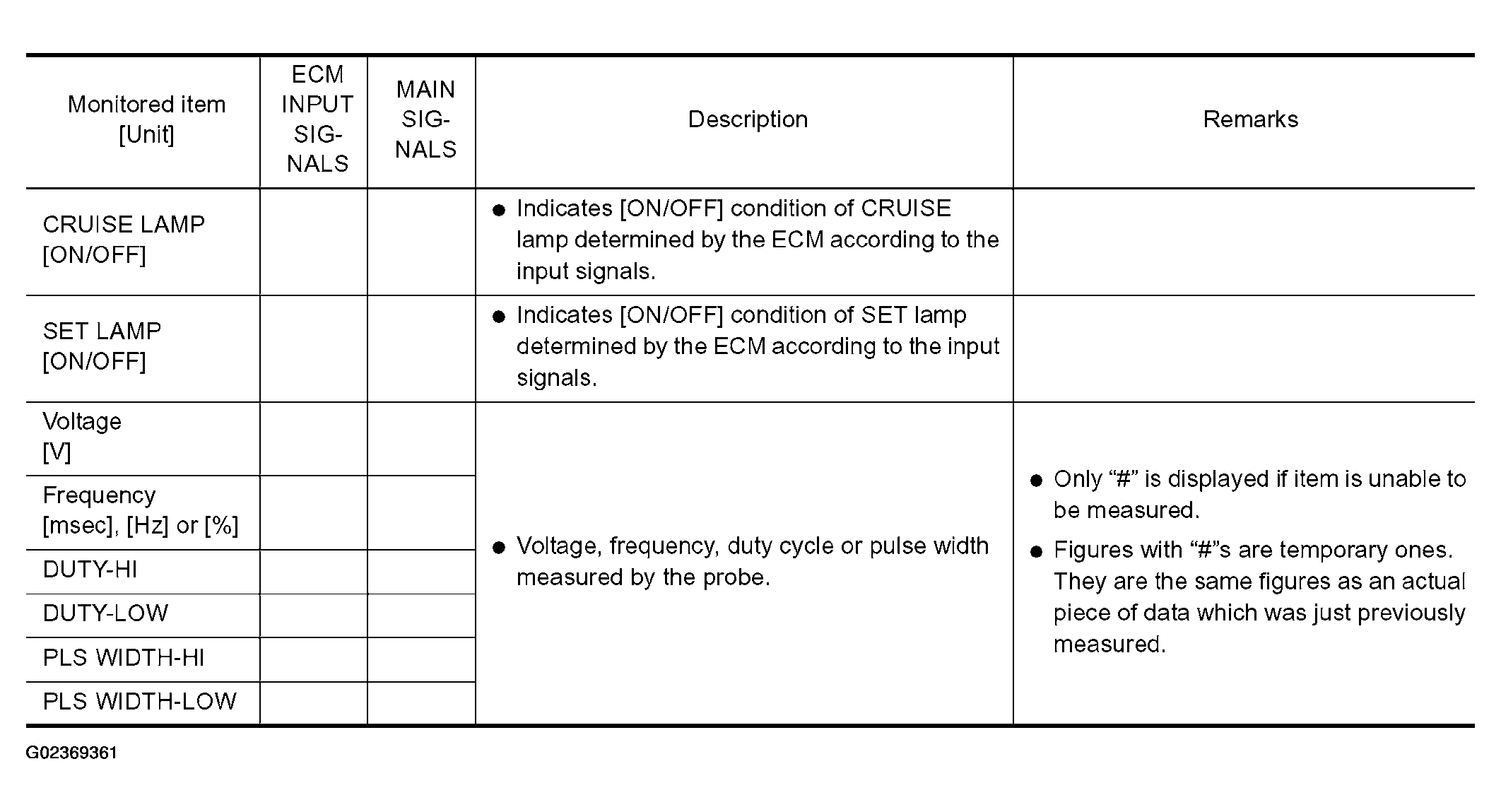

Fig 5: Monitored Item Description - Data Monitor Mode(6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
