Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the hood opener handle.
Turn ignition switch ON.

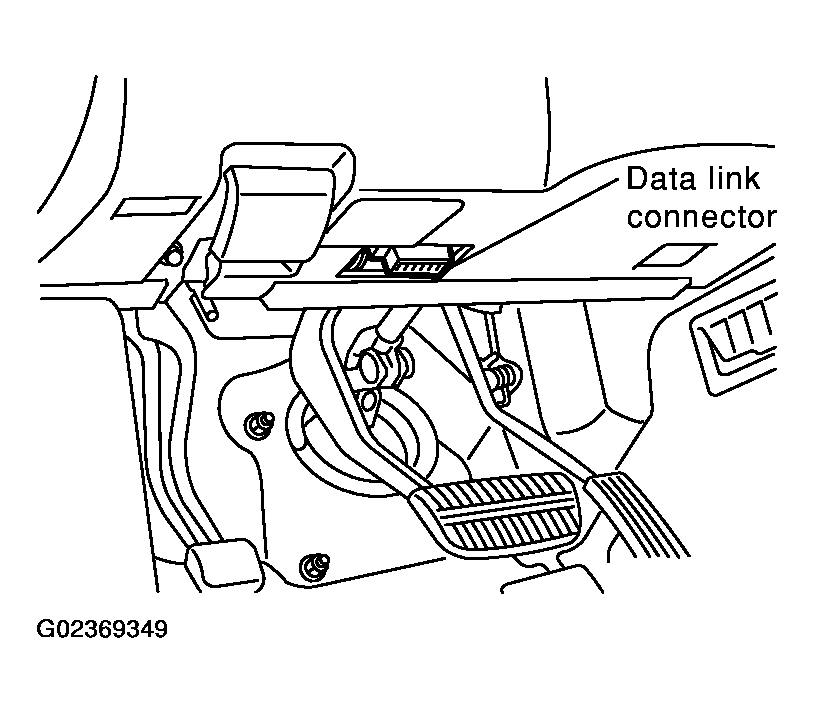

Fig 1: Connecting Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

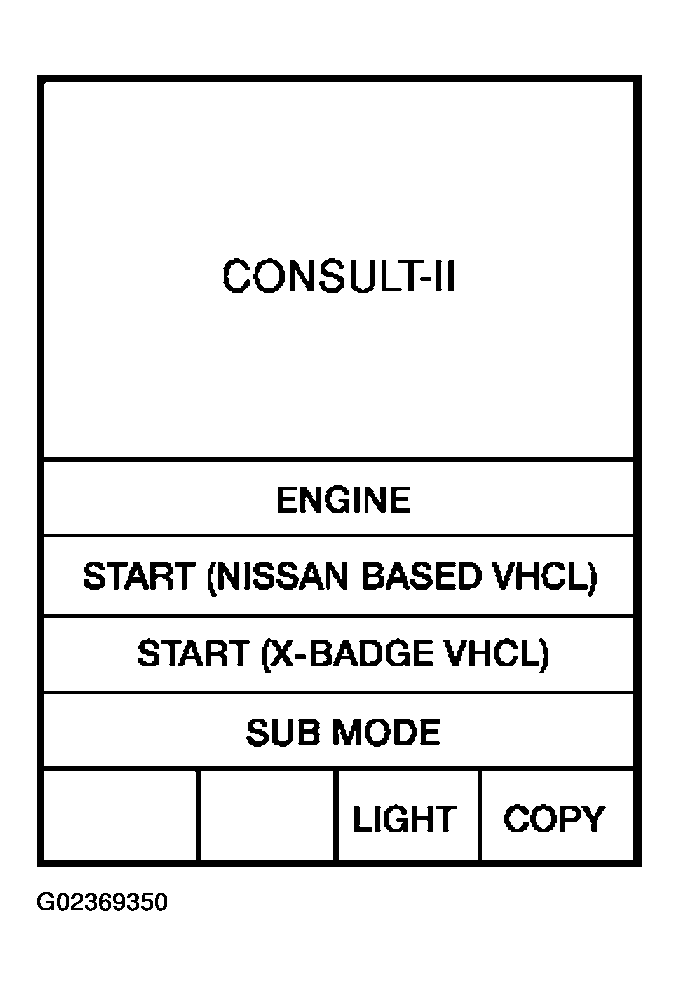

Fig 2: Start Nissan Based VHCL Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE".
If "ENGINE" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

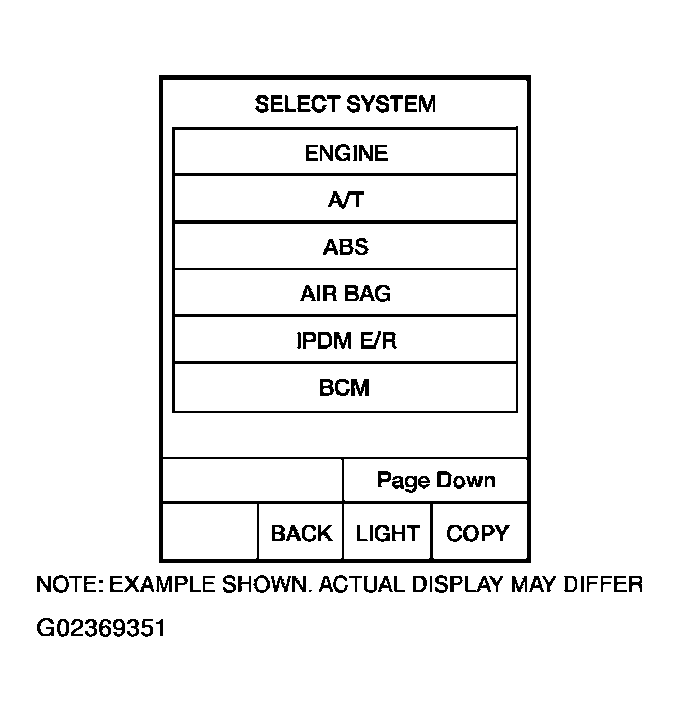

Fig 3: Engine Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual.

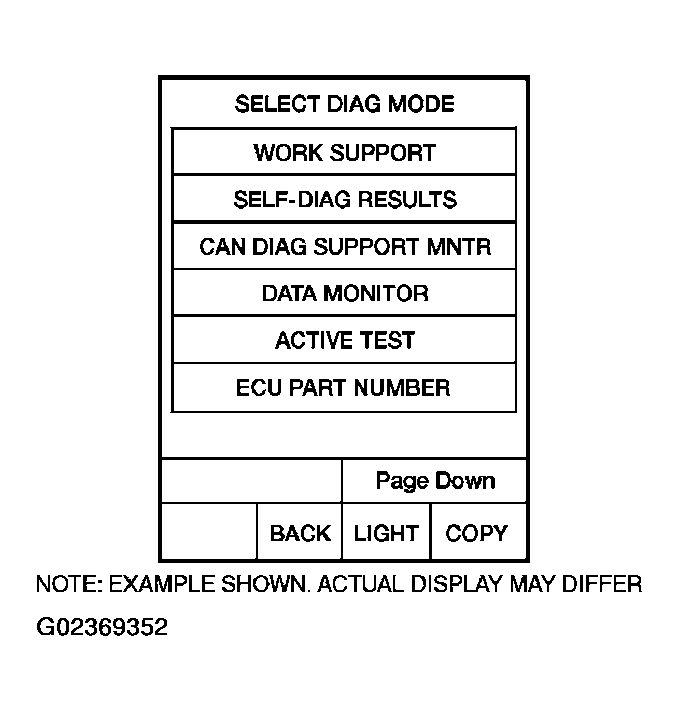

Fig 4: Diagnostic Test Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
