ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

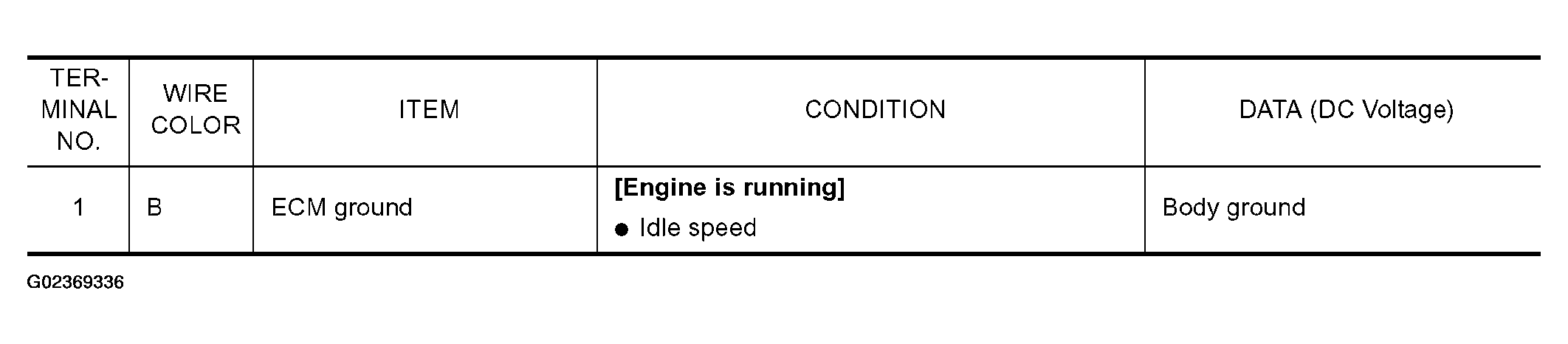

Fig 1: ECM Terminal Specification Condition (1 Of 10)

G02369336

Courtesy of NISSAN MOTOR CO., U.S.A.

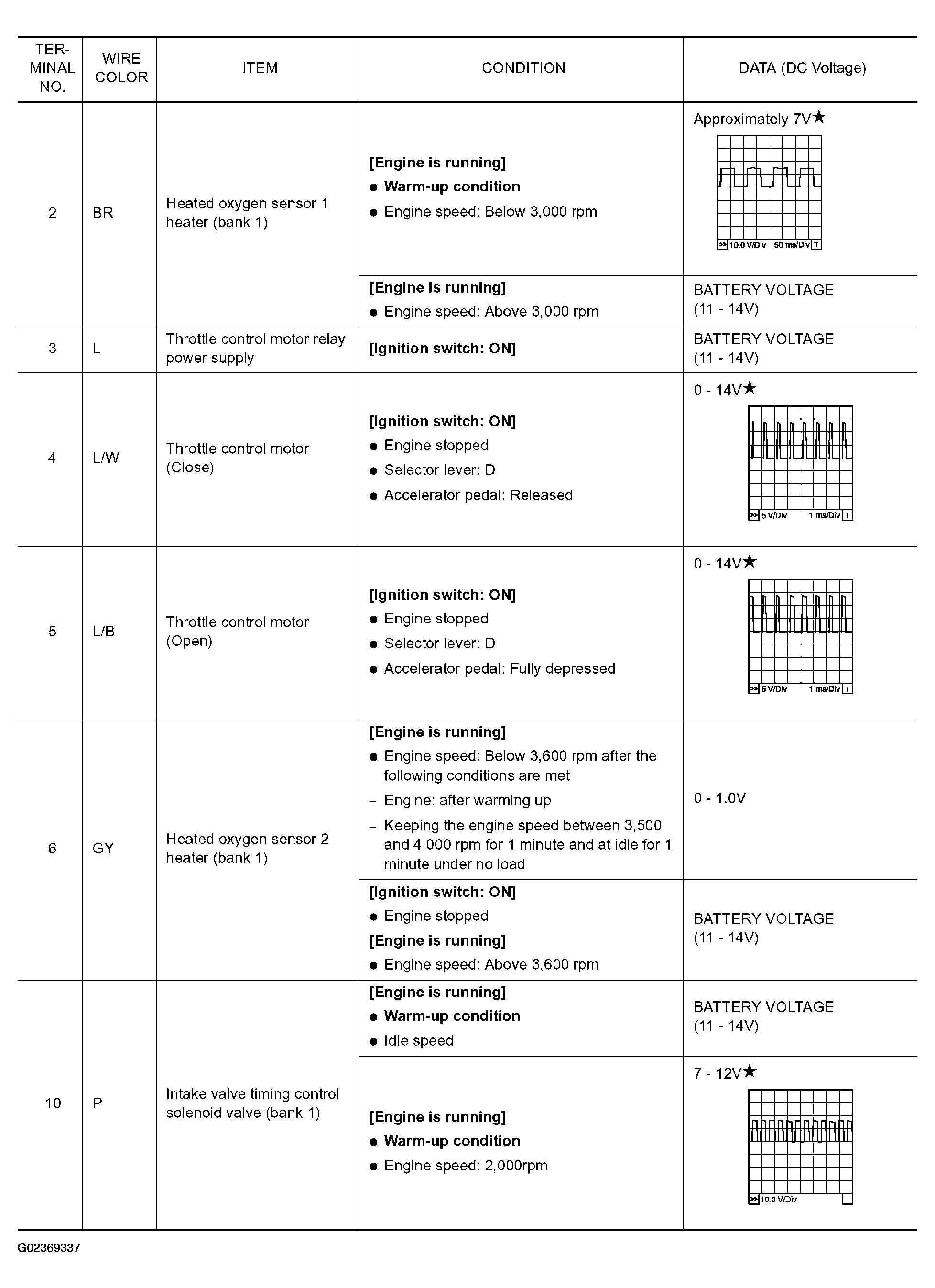

Fig 2: ECM Terminal Specification Condition (2 Of 10)

G02369337

Courtesy of NISSAN MOTOR CO., U.S.A.

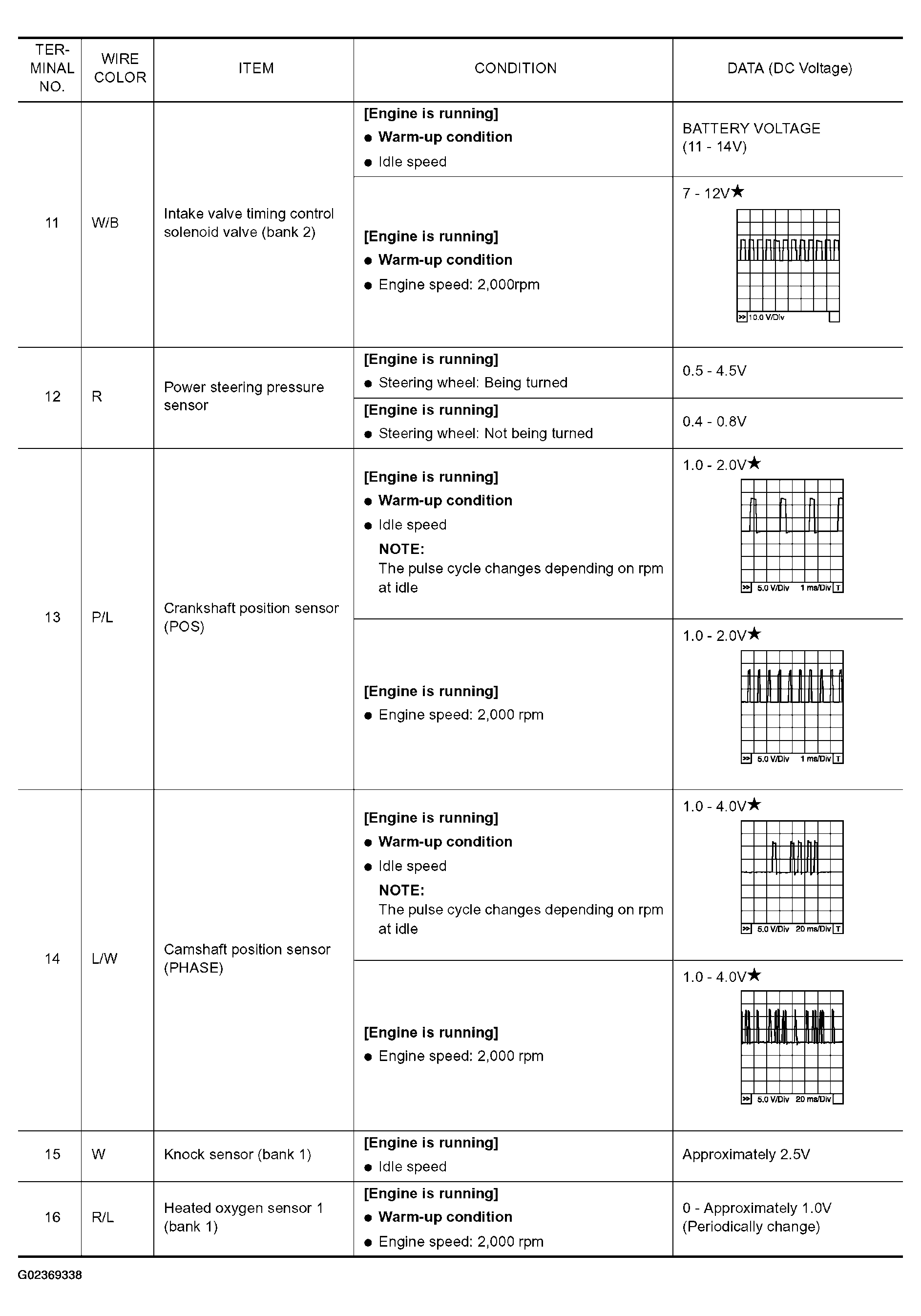

Fig 3: ECM Terminal Specification Condition (3 Of 10)

G02369338

Courtesy of NISSAN MOTOR CO., U.S.A.

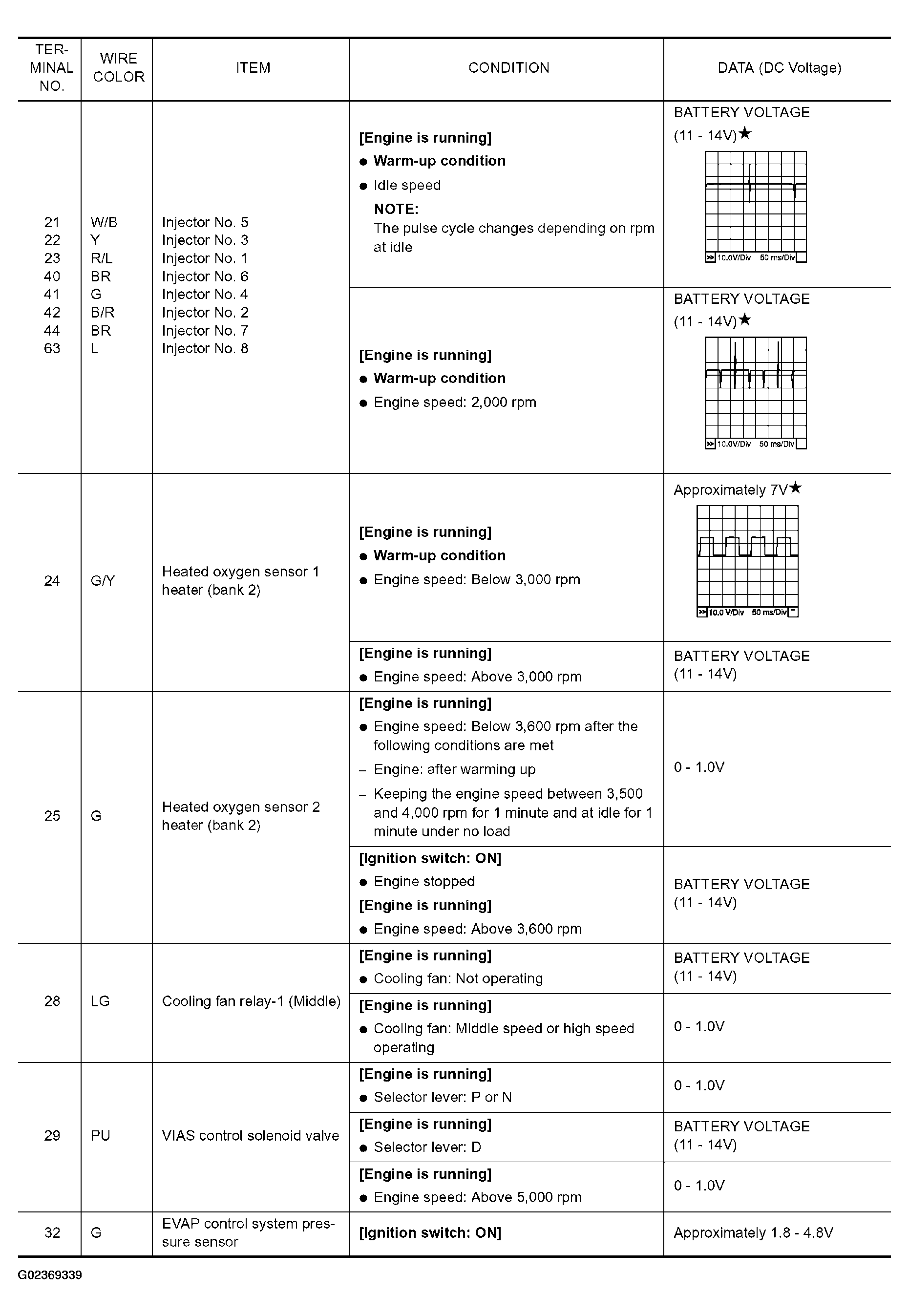

Fig 4: ECM Terminal Specification Condition (4 Of 10)

G02369339

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: ECM Terminal Specification Condition (5 Of 10)

G02369340

Courtesy of NISSAN MOTOR CO., U.S.A.

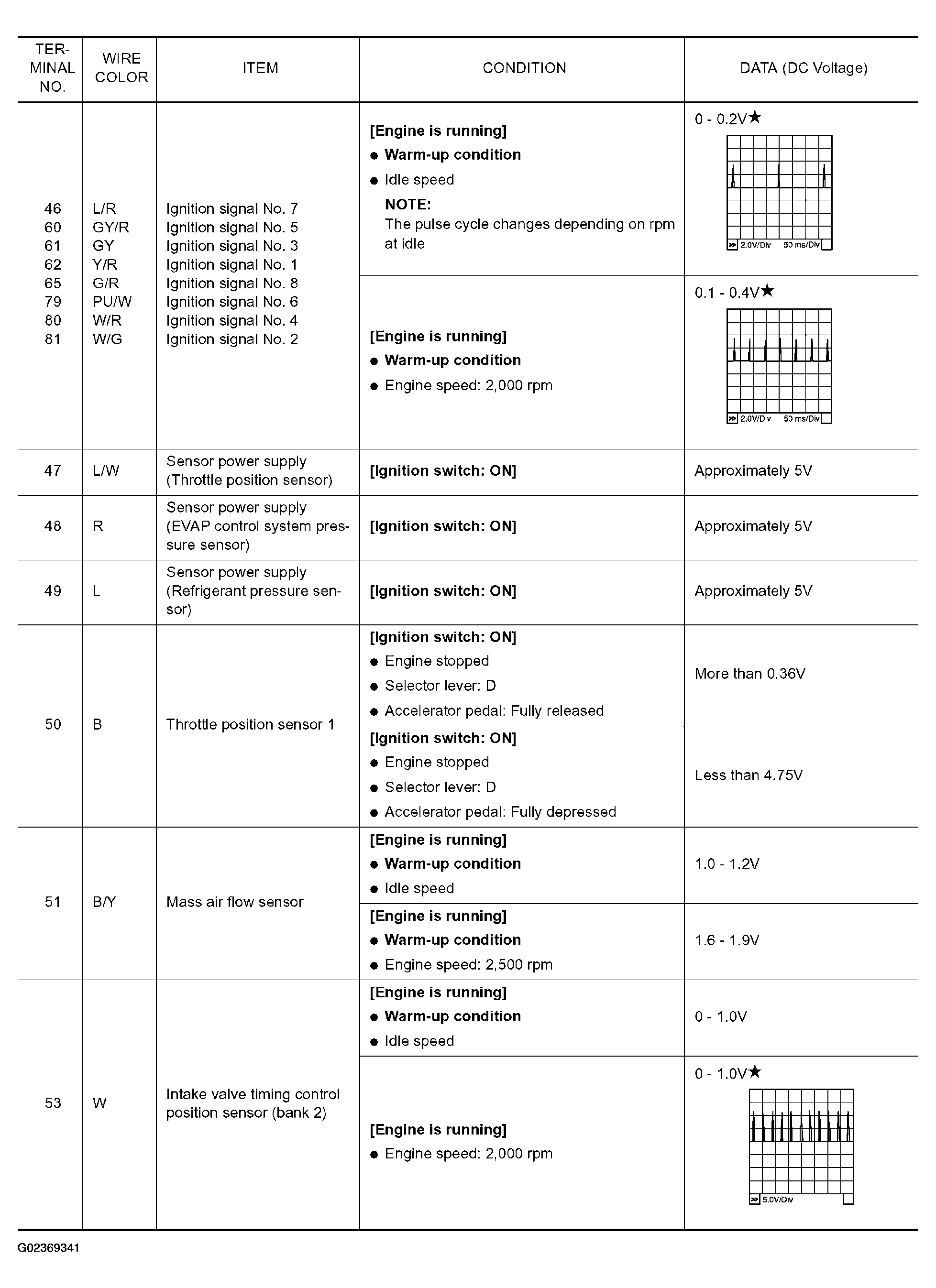

Fig 6: ECM Terminal Specification Condition (6 Of 10)

G02369341

Courtesy of NISSAN MOTOR CO., U.S.A.

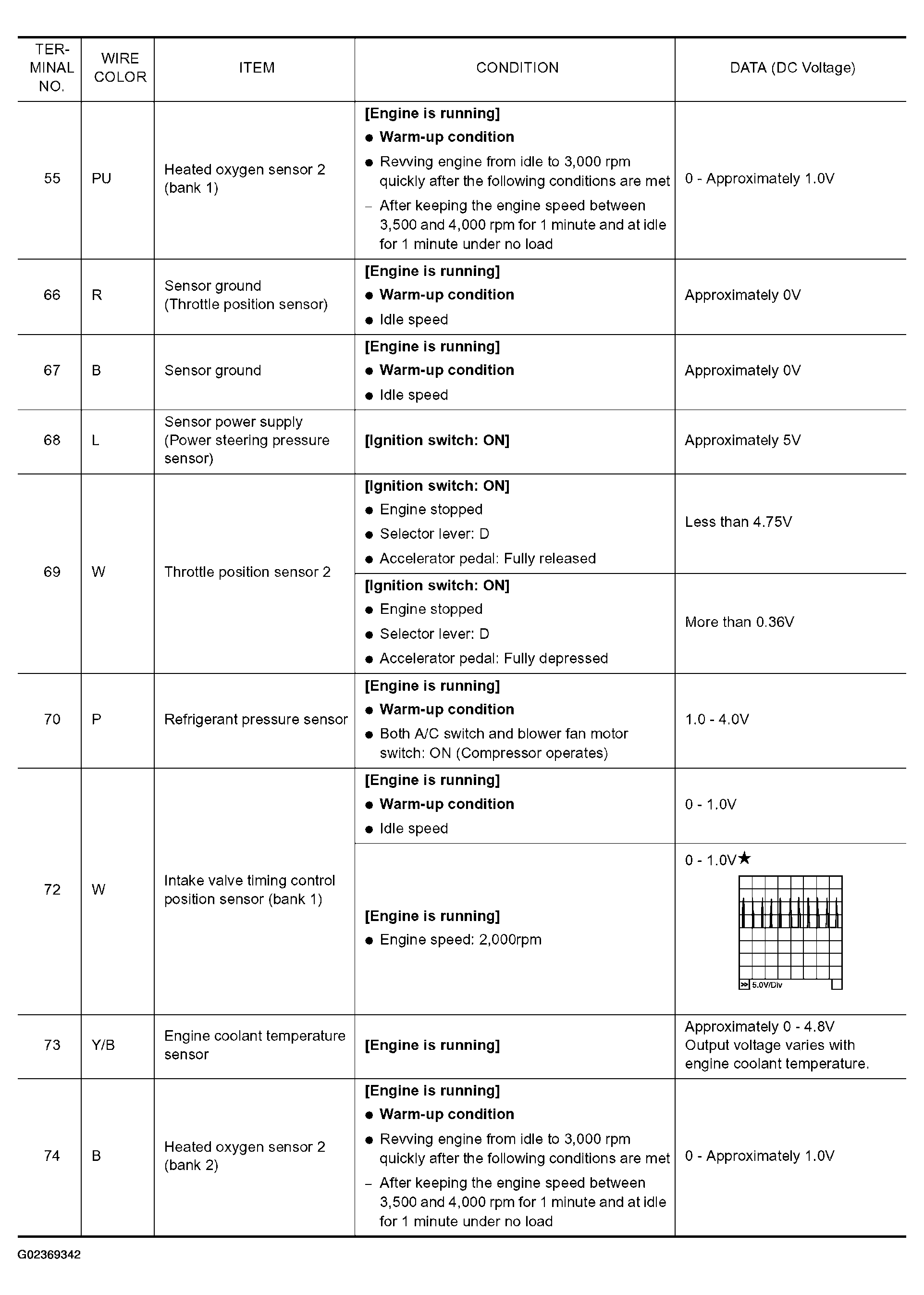

Fig 7: ECM Terminal Specification Condition (7 Of 10)

G02369342

Courtesy of NISSAN MOTOR CO., U.S.A.

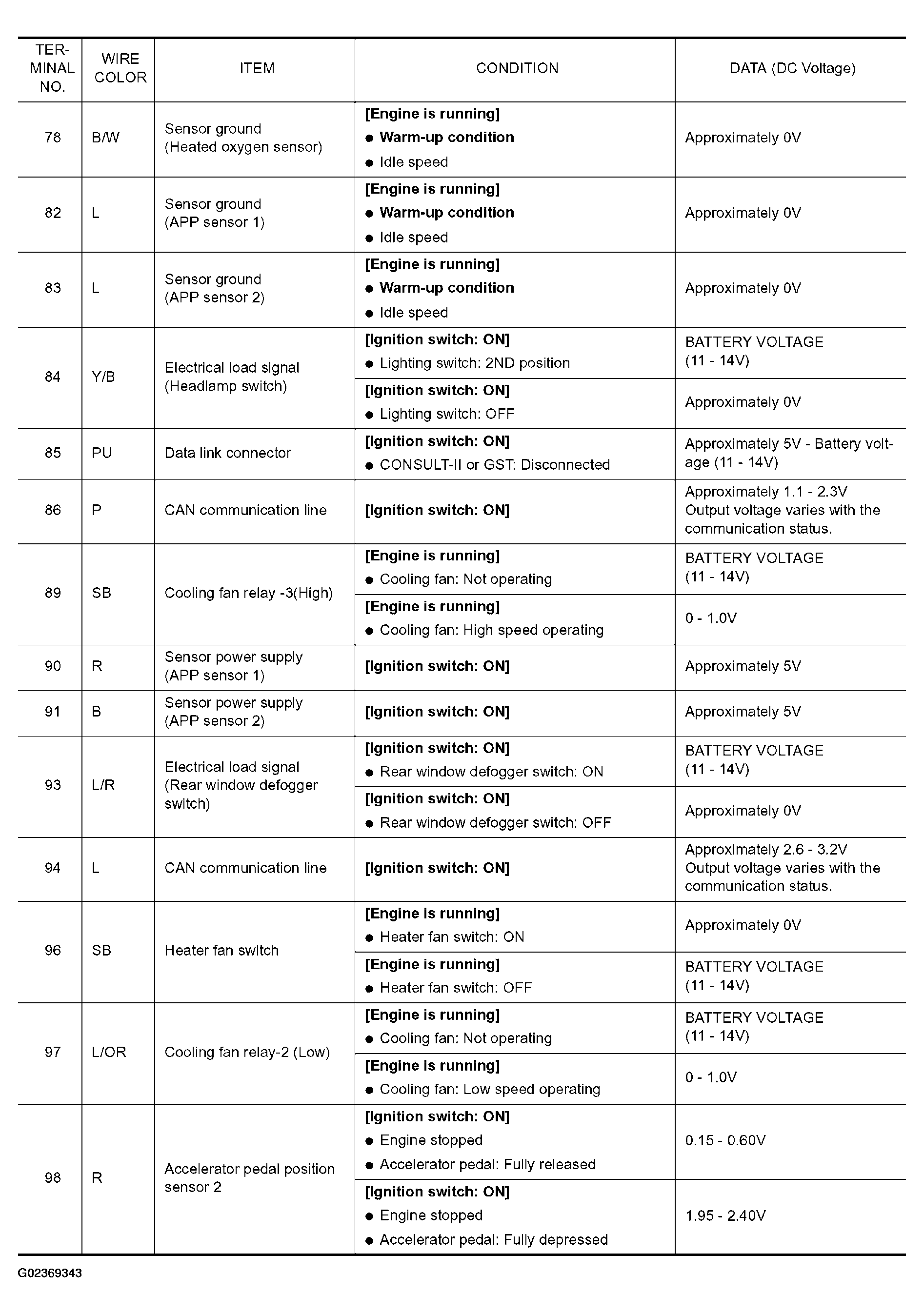

Fig 8: ECM Terminal Specification Condition (8 Of 10)

G02369343

Courtesy of NISSAN MOTOR CO., U.S.A.

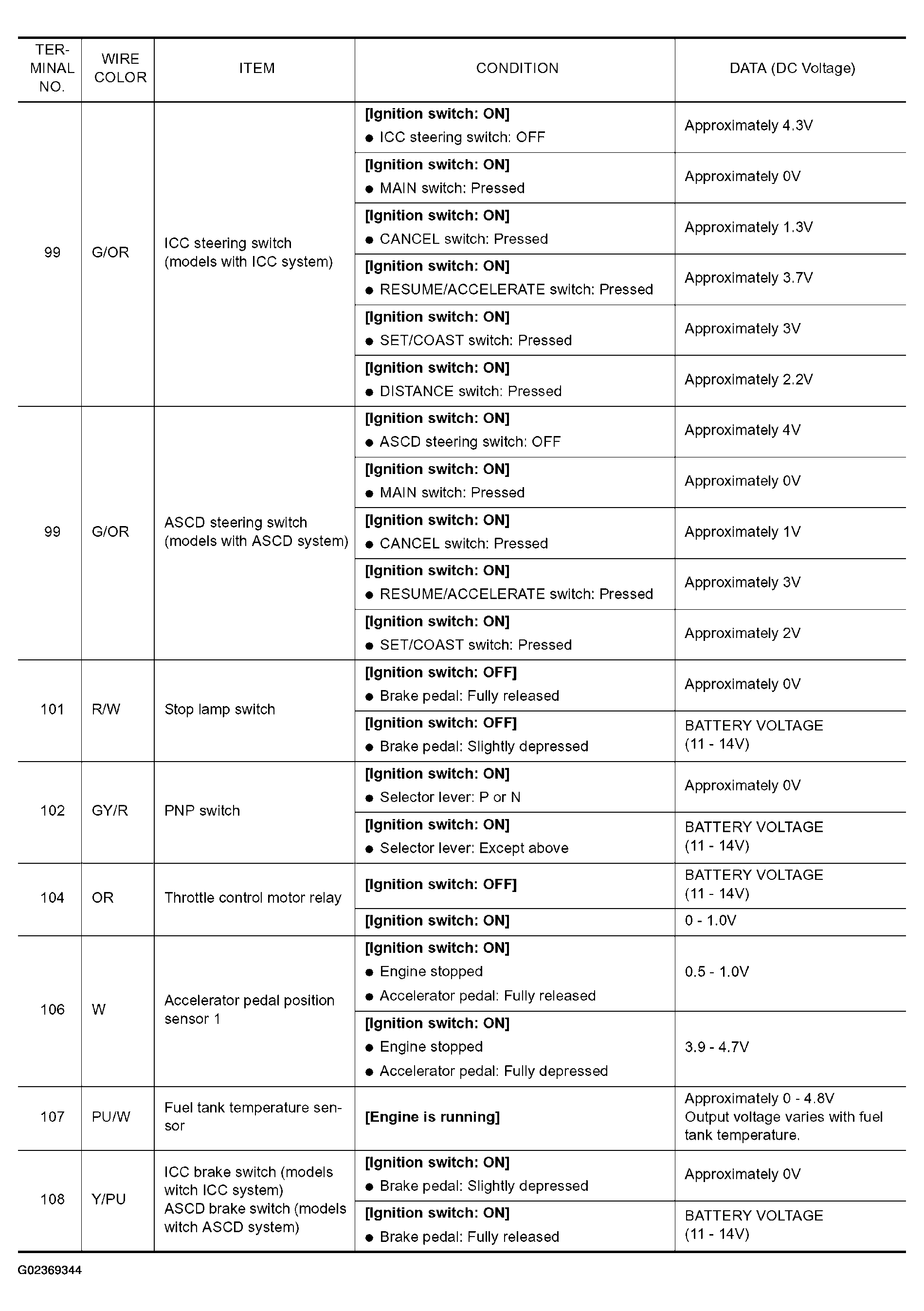

Fig 9: ECM Terminal Specification Condition (9 Of 10)

G02369344

Courtesy of NISSAN MOTOR CO., U.S.A.

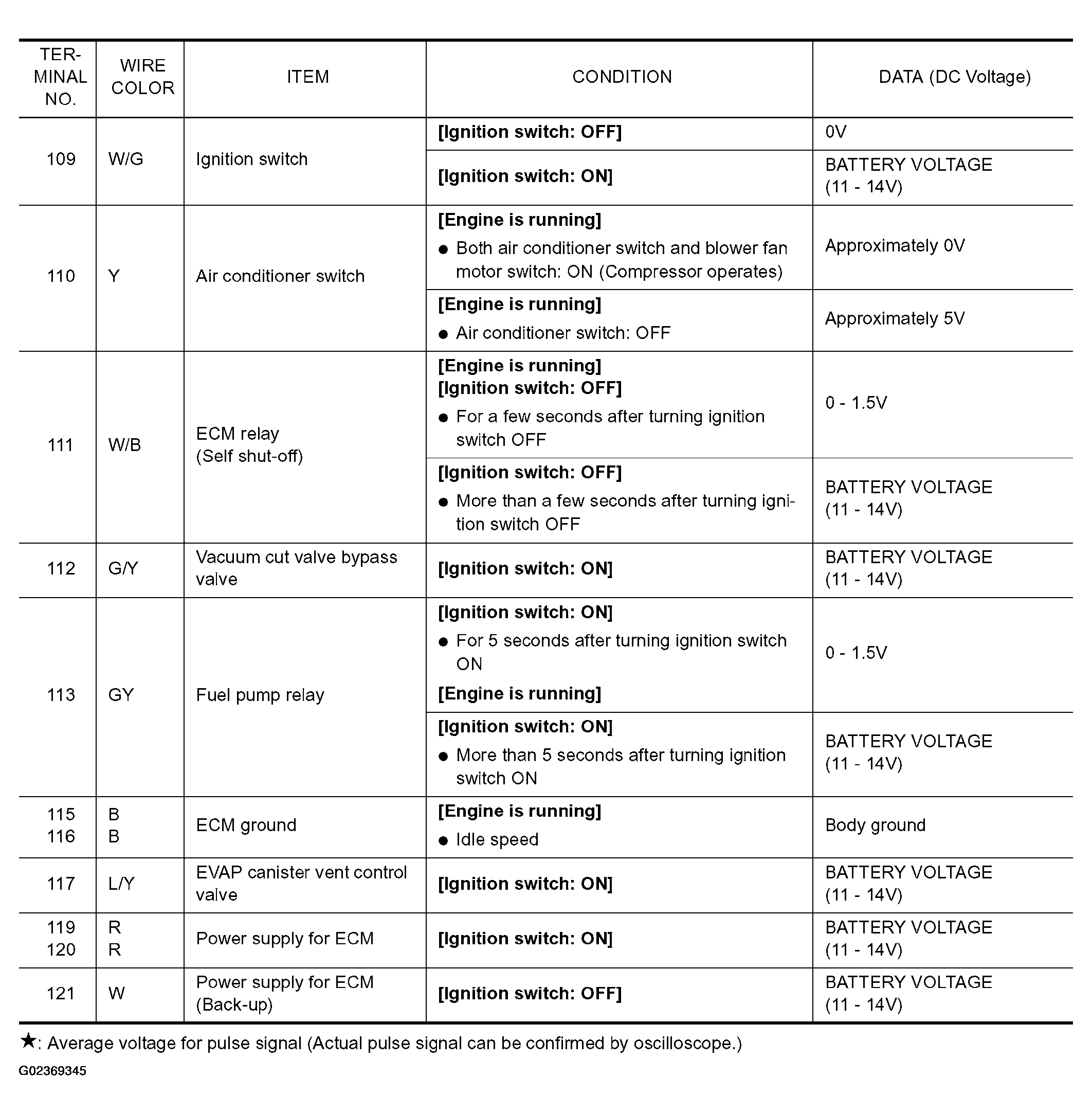

Fig 10: ECM Terminal Specification Condition (10 Of 10)

G02369345

Courtesy of NISSAN MOTOR CO., U.S.A.
