Fuel Pump

  1. Disconnect "fuel level sensor unit and fuel pump" harness connector.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 1 and 3.
    1. Resistance: 0.2 - 5.0Ω [at 25°C (77°F)]

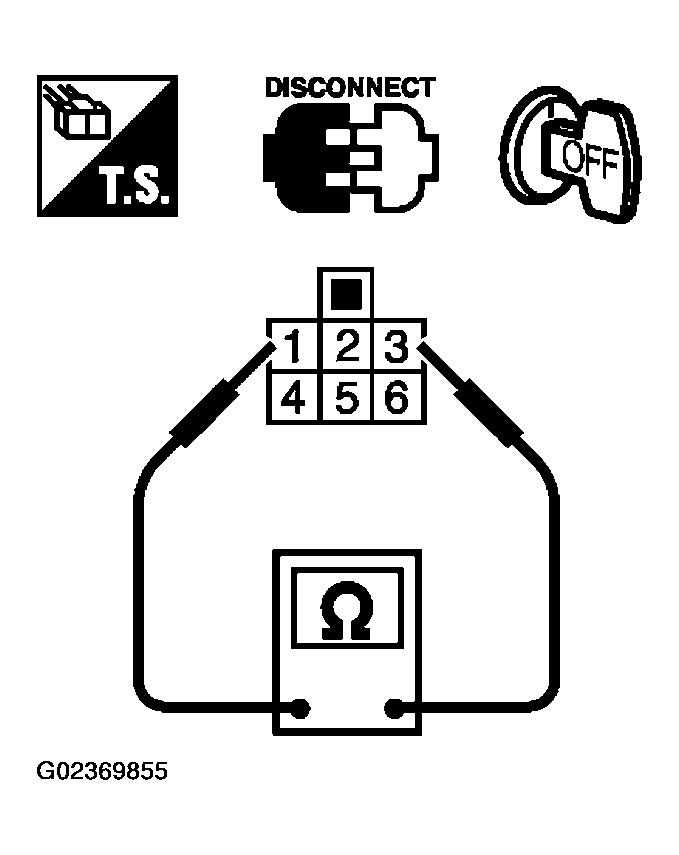

    Fig 1: Checking Resistance Between Fuel Pump Terminals 1 And 3
    G02369855Courtesy of NISSAN MOTOR CO., U.S.A.
