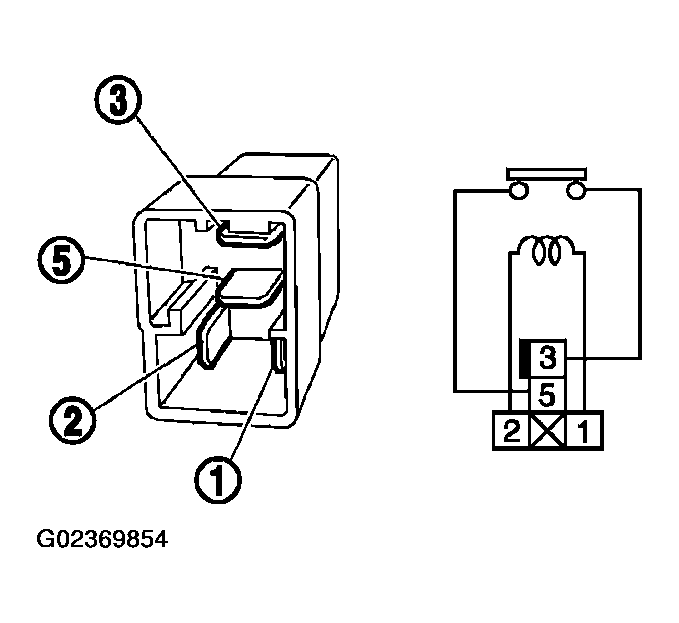

Fuel Pump Relay
Check continuity between terminals 3 and 5 under the following conditions.
FUEL PUMP RELAY CONTINUITY CONDITIONS
| Conditions |
Continuity |
| 12V direct current supply between terminals 1 and 2 |
Yes |
| No current supply |
No |
Courtesy of NISSAN MOTOR CO., U.S.A.
