With CONSULT-II

  1. Reconnect harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
  4. Check air passage continuity and operation delay time under the following conditions.
    AIR PASSAGE CONTINUITY CONDITIONS

    Condition VIAS SOL VALVE Air passage continuity between A and B Air passage continuity between A and C
    ON Yes No
    OFF No Yes

    Operation takes less than 1 second.

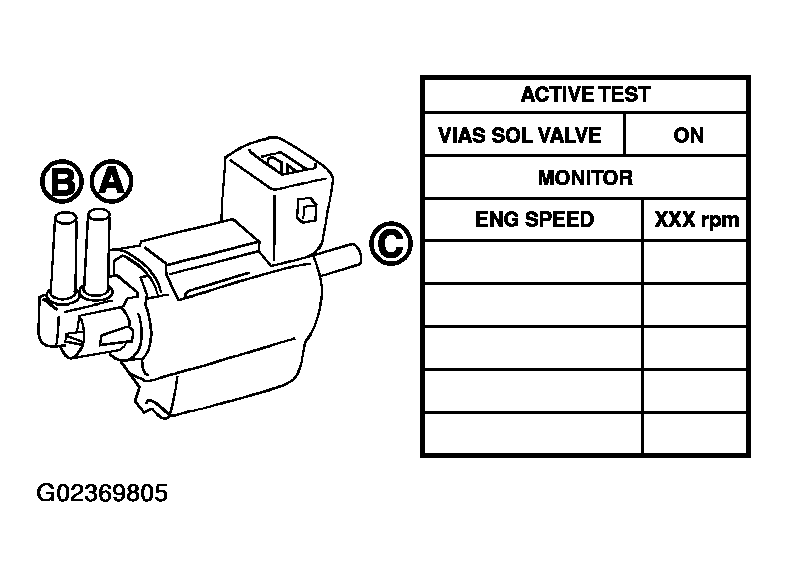

    Fig 1: Display Active Test Mode
    G02369805Courtesy of NISSAN MOTOR CO., U.S.A.
