ASCD Indicator: Wiring Diagram

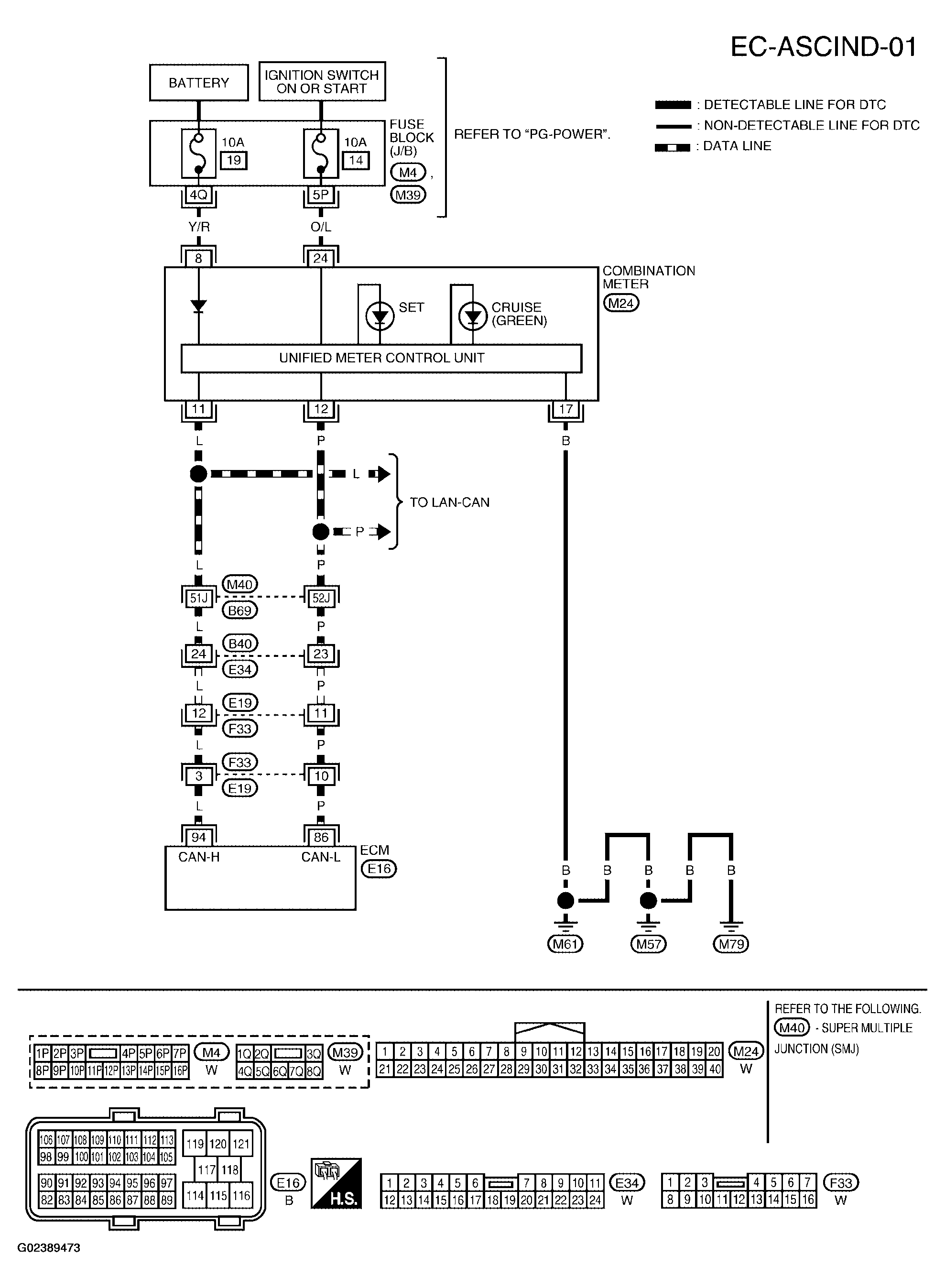

Fig 1: Wiring Diagram - EC-ASCIND-01

G02389473

Courtesy of NISSAN MOTOR CO., U.S.A.
