With CONSULT-II

Check idle speed in "DATA MONITOR" mode with CONSULT-II

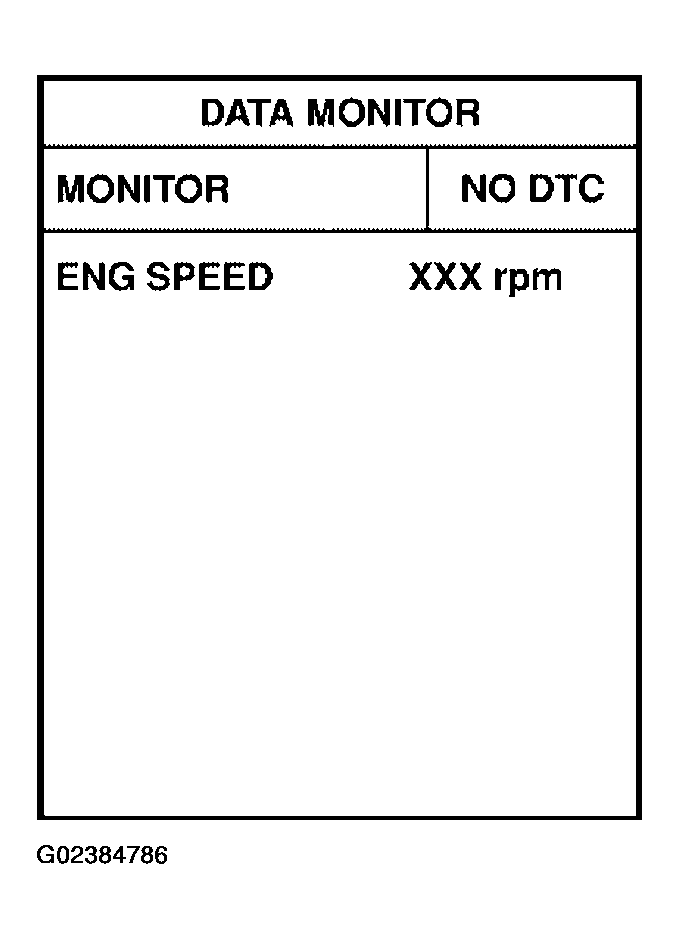

Fig 1: CONSULT-II Display - DATA MONITOR
G02384786Courtesy of NISSAN MOTOR CO., U.S.A.
