Engine Coolant Temperature Sensor

  1. Check resistance between engine coolant temperature sensor terminals as shown in the figure.

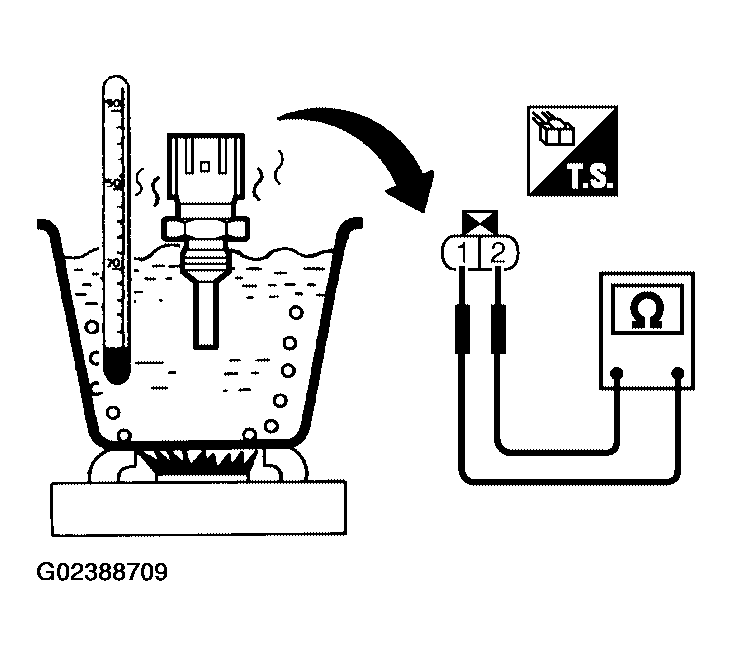

    Fig 1: Checking Resistance Between Engine Coolant Temperature Sensor
    G02388709Courtesy of NISSAN MOTOR CO., U.S.A.

    < Reference data >

    ENGINE COOLANT TEMPERATURE SENSOR REFERENCE DATA

    Temperature °C (°F) Resistance kΩ
    20 (68) 2.1 - 2.9
    50 (122) 0.68 - 1.0
    90 (194) 0.236 - 0.260
  2. If NG, replace engine coolant temperature sensor.

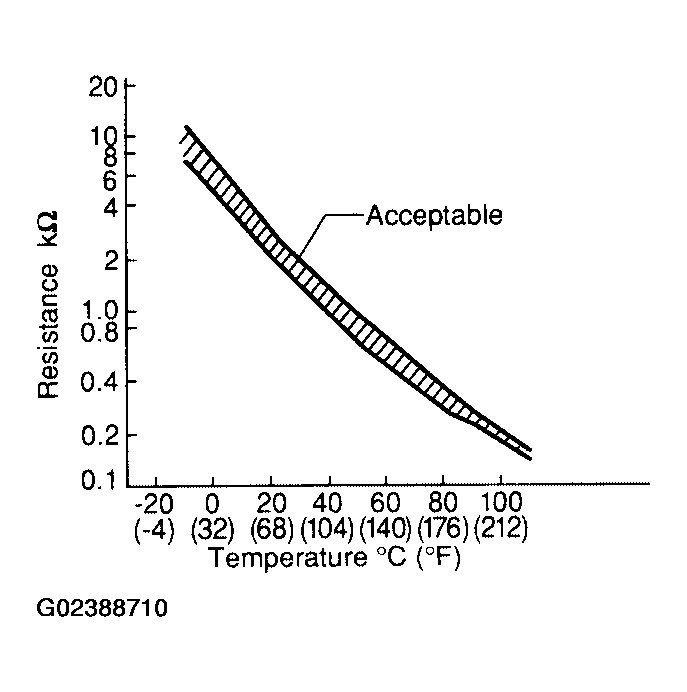

    Fig 2: DTC P0128 Thermostat Function - Temperature/Resistance Graph
    G02388710Courtesy of NISSAN MOTOR CO., U.S.A.
