< Reference data >

FTT SENSOR REFERENCE DATA

Fluid temperature °C (°F)

Voltage ⁽¹⁾ V

Resistance kΩ

20 (68)

3.5

2.3 - 2.7

50 (122)

2.2

0.79 - 0.90

⁽¹⁾	This data is reference value and is measured between ECM terminal 107 (Fuel tank temperature sensor) and ground.

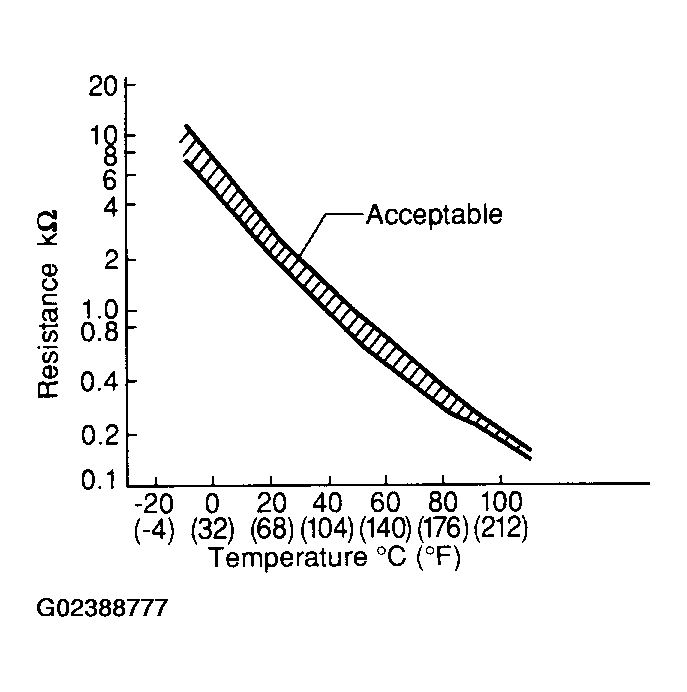

Fig 1: DTC P0181 FTT Sensor - Temperature/Resistance Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
