Main 12 Causes of Overheating

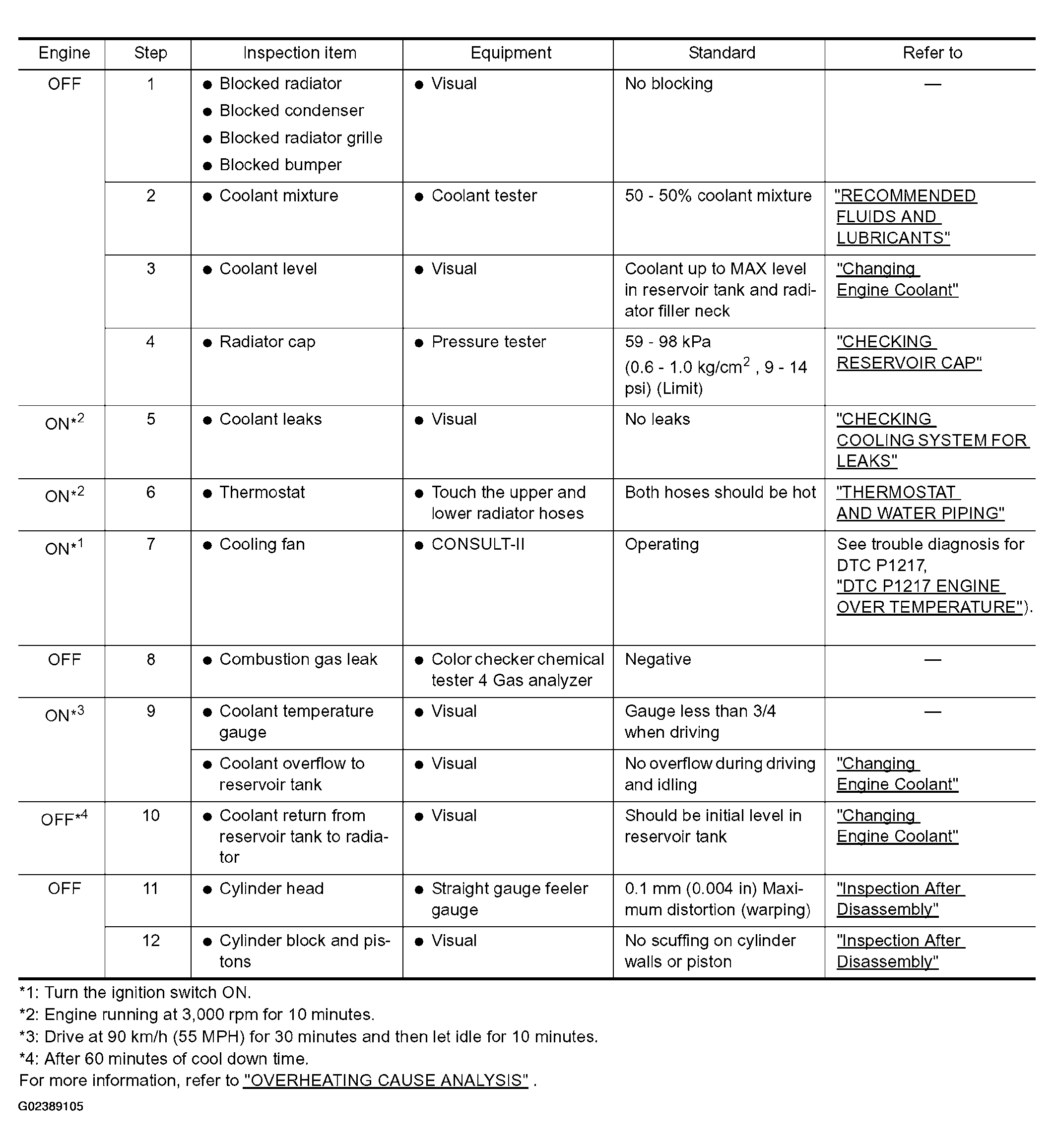

Fig 1: Main Causes Of Overheating
G02389105Courtesy of NISSAN MOTOR CO., U.S.A.

For more information, refer to "OVERHEATING CAUSE ANALYSIS "
