ICC Steering Switch

  1. Disconnect combination switch (spiral cable) harness connector M102.
  2. Check continuity between ICC steering switch terminals 1 and 2 with pushing each switch.

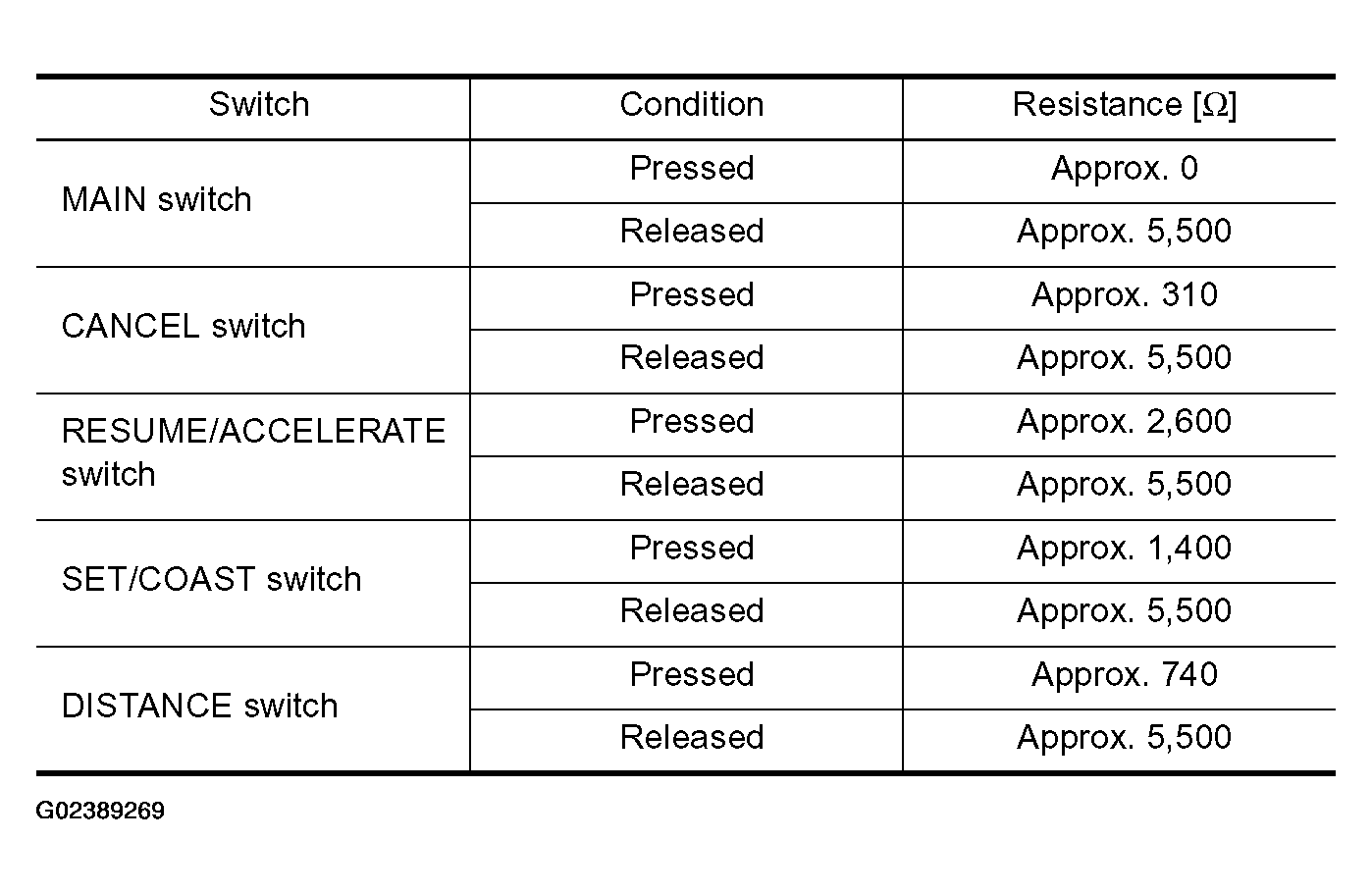

    Fig 1: ICC Steering Switch Terminals Continuity
    G02389269Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 2: Checking Continuity Between ICC Steering Switch Terminals 1 And 2
    G02389270Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, replace ICC steering switch.
