With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Wait at least 10 seconds.
  4. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
  5. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
  6. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 seconds.
  7. Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
  8. Press DISTANCE switch for at least 10 seconds, then release it and wait at least 10 seconds.
  9. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

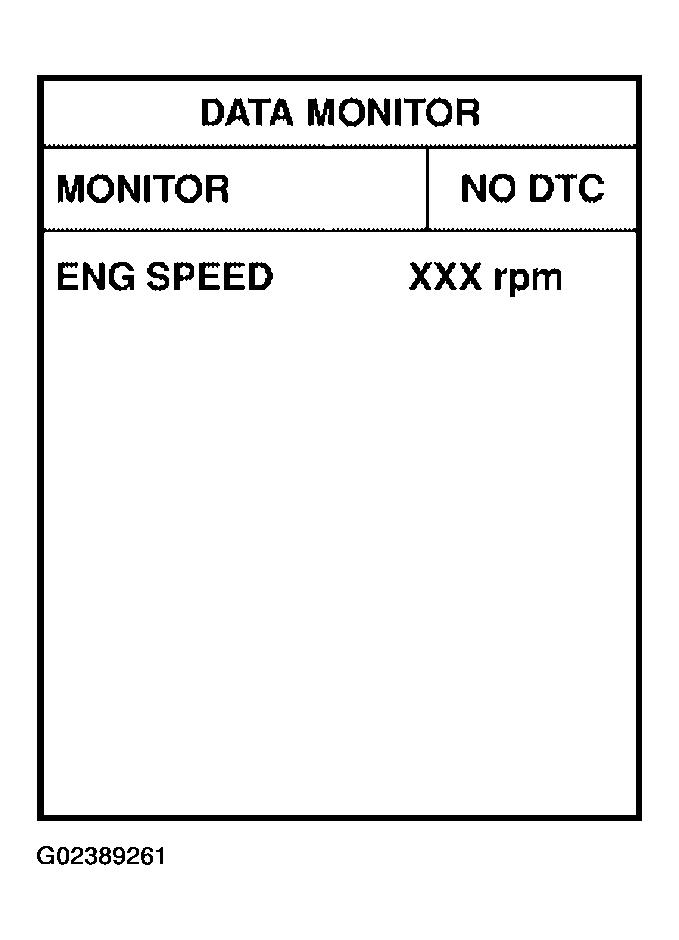

    Fig 1: CONSULT-II Display - DATA MONITOR
    G02389261Courtesy of NISSAN MOTOR CO., U.S.A.
