Stop Lamp Switch

  1. Disconnect stop lamp switch harness connector.

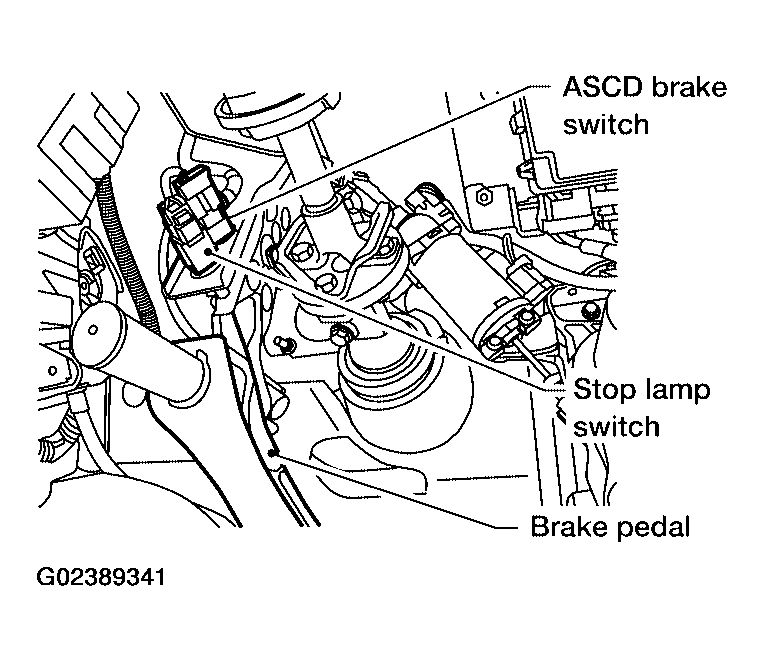

    Fig 1: Locating ASCD Brake Switch, Stop Lamp Switch & Brake Pedal
    G02389341Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between stop lamp switch terminals 3 and 4 under the following conditions.
    BRAKE PEDAL CONDITION - CONTINUITY

    Conditions Continuity
    Brake pedal: Fully released Should not exist.
    Brake pedal: Slightly depressed Should exist.
  3. If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 2 again.
    Fig 2: Check Continuity Between Stop Lamp Switch Terminals 1 & 2
    G02389342Courtesy of NISSAN MOTOR CO., U.S.A.
