CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

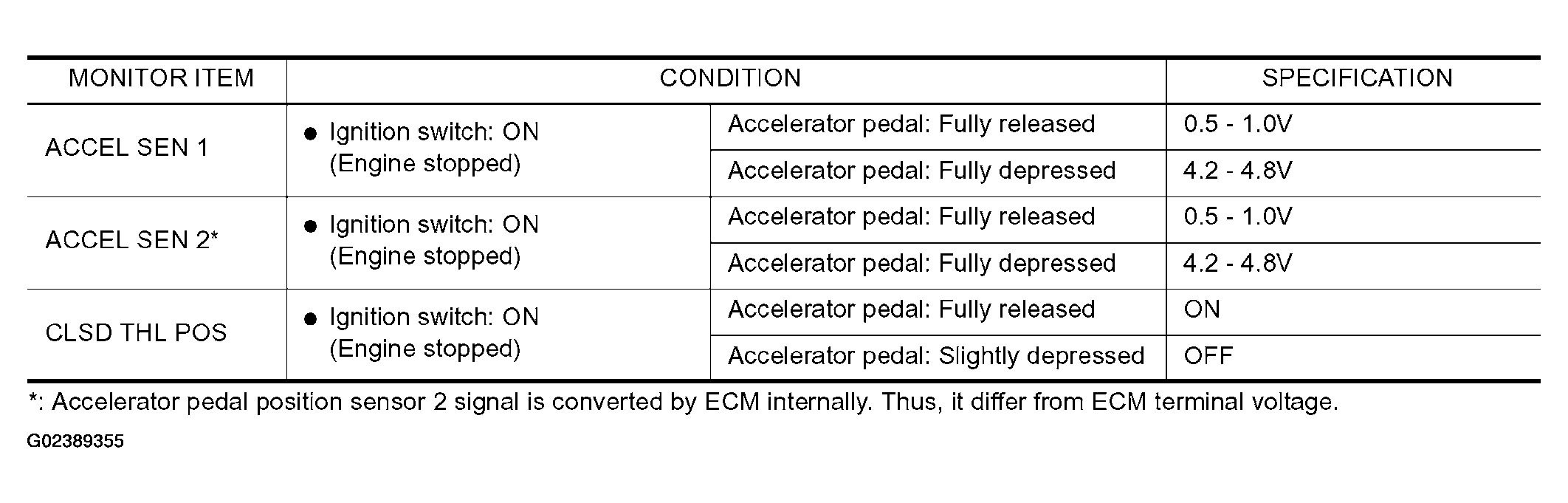

Fig 1: Data Monitor Mode Condition Specification With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminal voltage.
