Overall Sequence

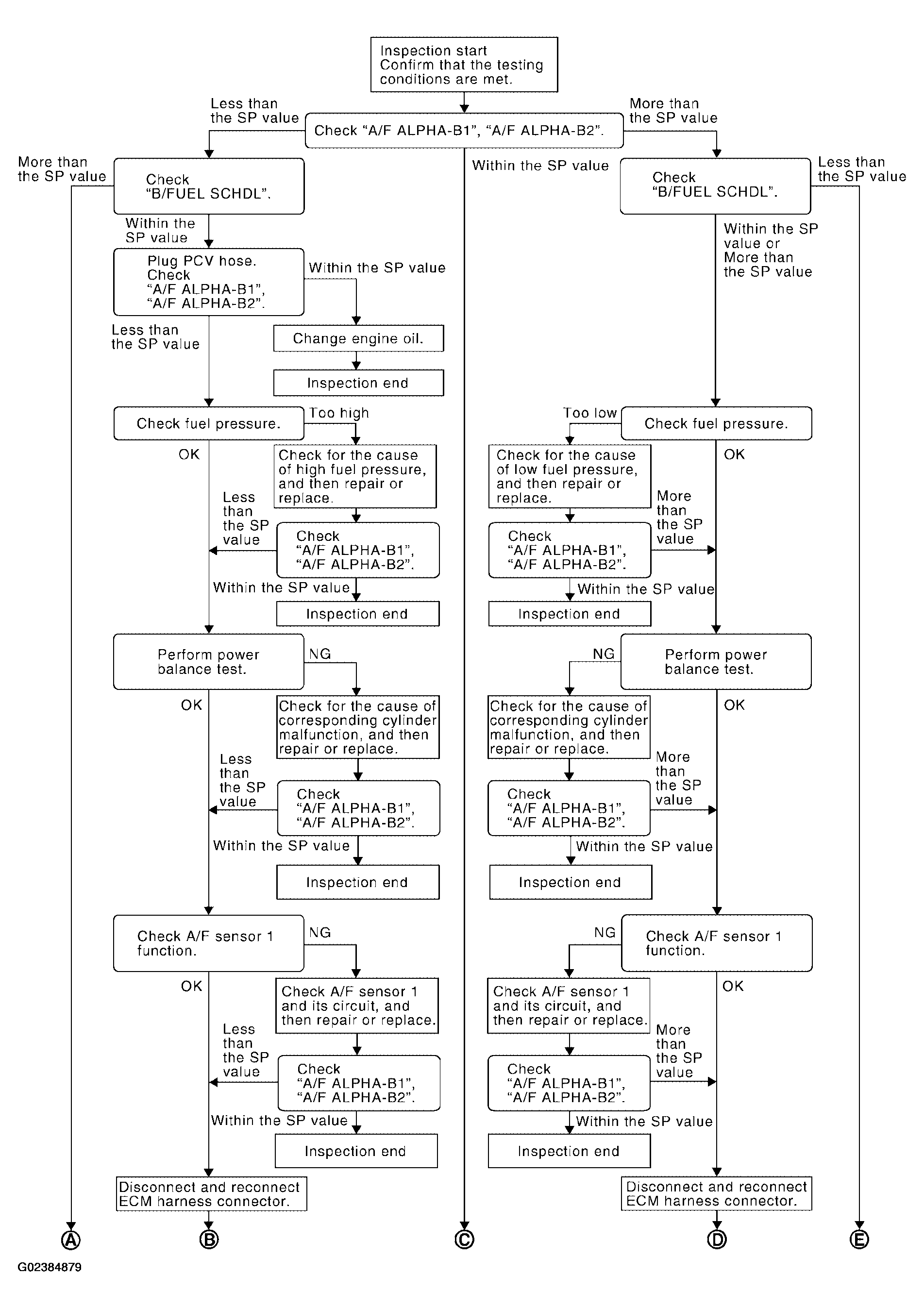

Fig 1: Overall Sequence Flow Chart (1 Of 2)
G02384879Courtesy of NISSAN MOTOR CO., U.S.A.

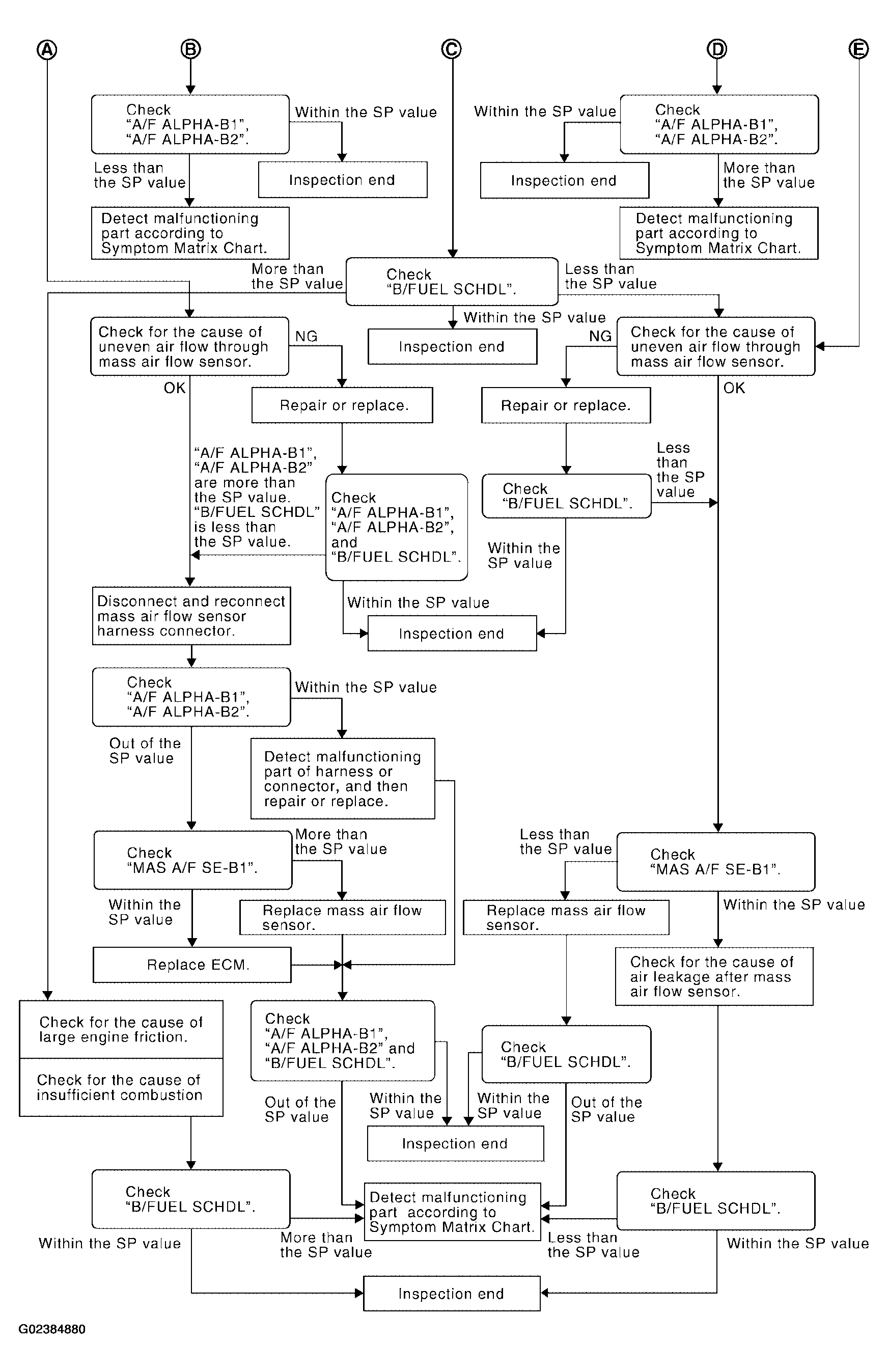

Fig 2: Overall Sequence Flow Chart (2 Of 2)
G02384880Courtesy of NISSAN MOTOR CO., U.S.A.
