Work Item

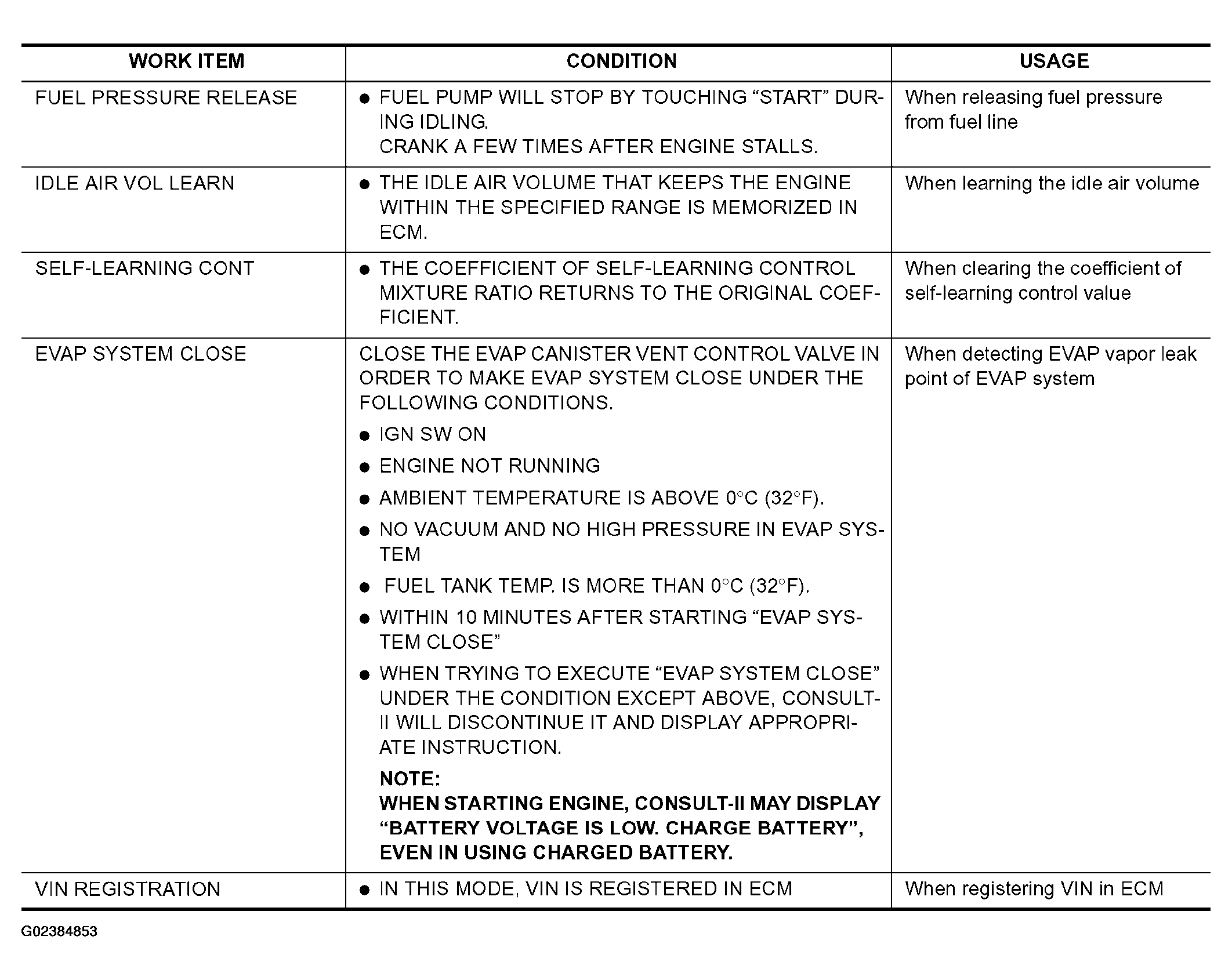

Fig 1: Work Support Mode - Work Item Usage
Courtesy of NISSAN MOTOR CO., U.S.A.
WORK SUPPORT MODE - WORK ITEM USAGE
WORK ITEM
CONDITION
USAGE
TARGET IDLE RPM ADJ
(1)
IDLE CONDITION
When setting target idle speed
TARGET IGN TIM ADJ
(1)
IDLE CONDITION
When adjusting target ignition timing
(1)
This function is not necessary in the usual service procedure.
Courtesy of NISSAN MOTOR CO., U.S.A.
