Circuit Diagram

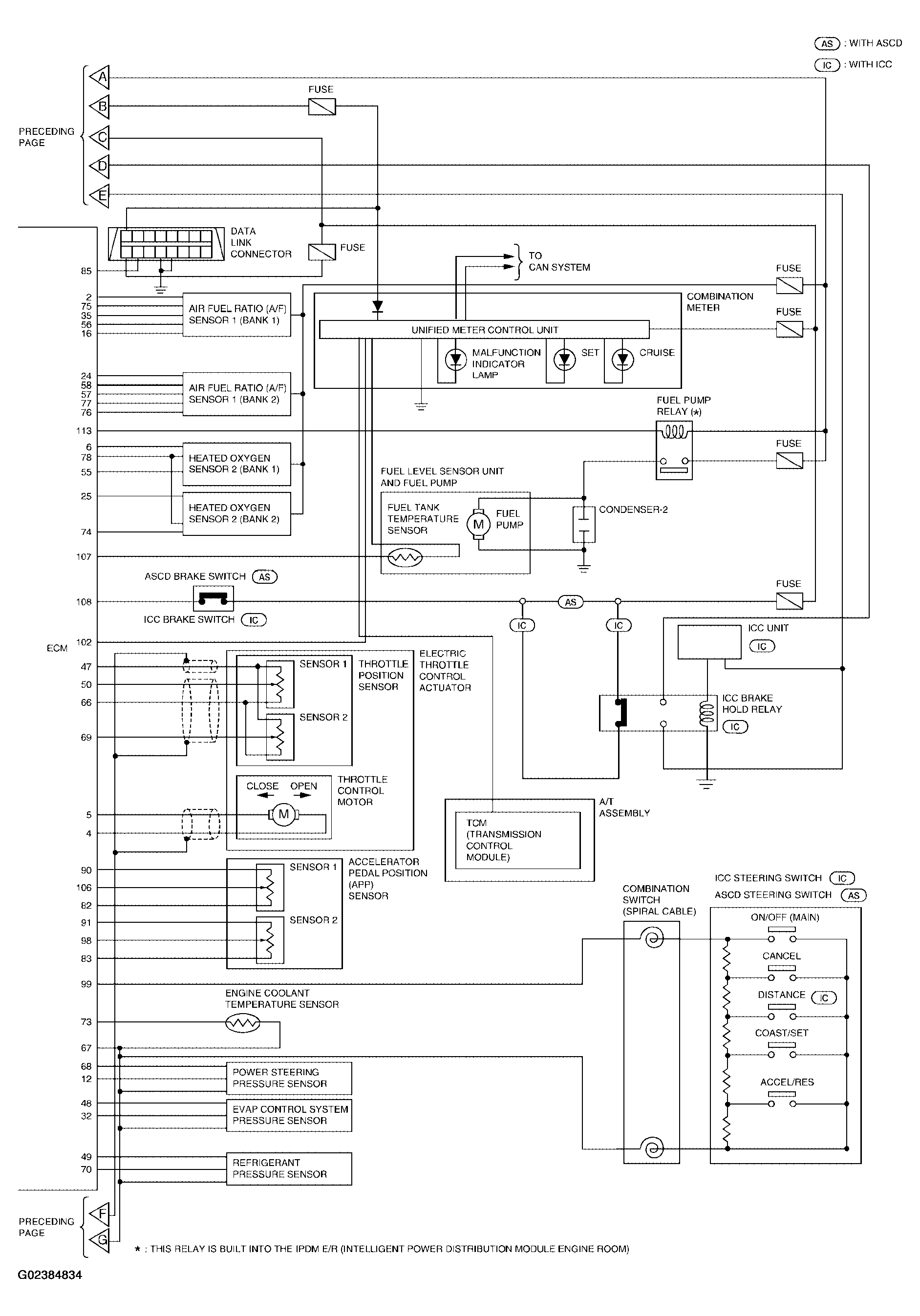

Fig 1: Circuit Diagram - Engine Control (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

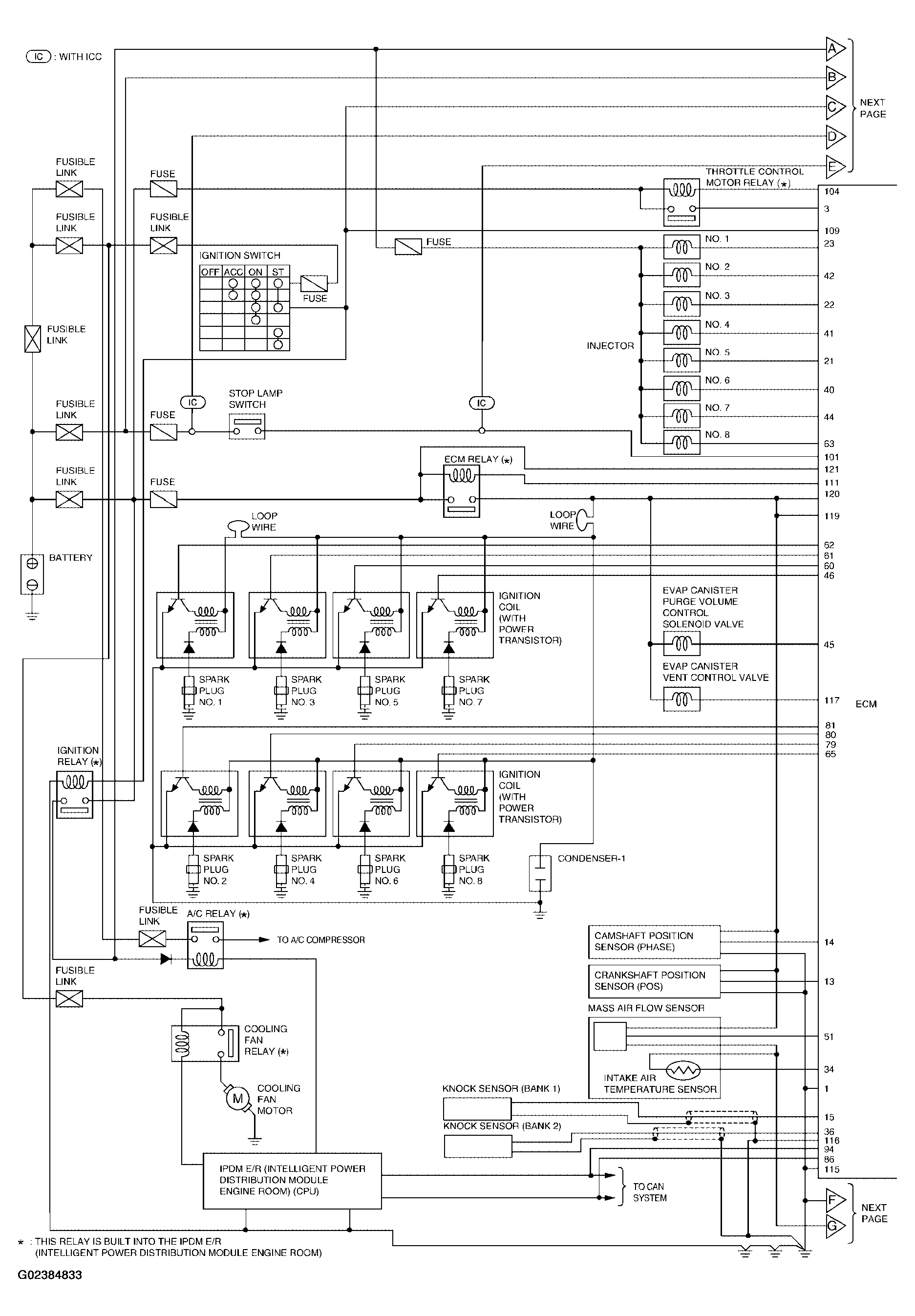

Fig 2: Circuit Diagram - Engine Control (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
