Engine Control Component Parts Location

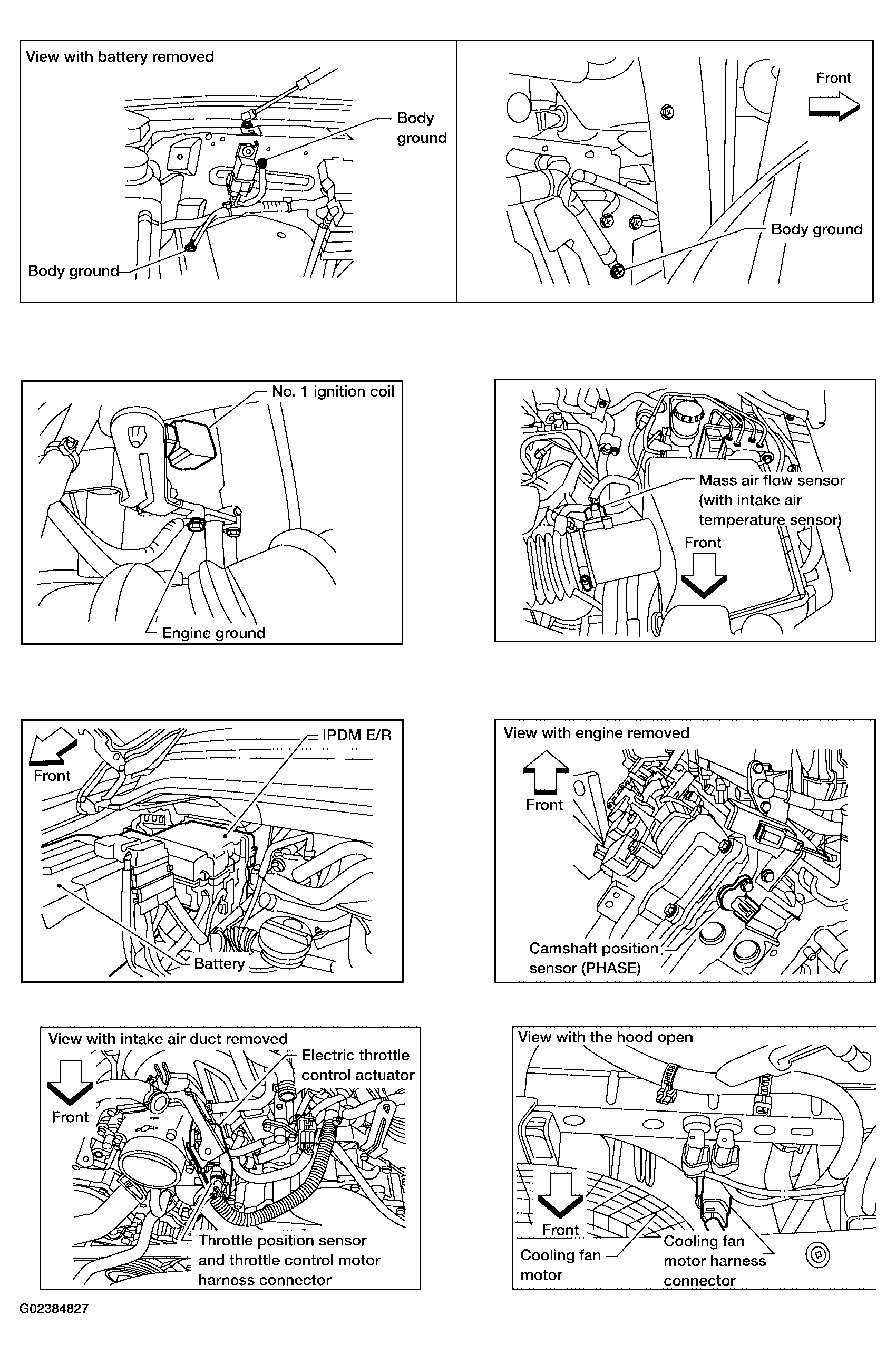

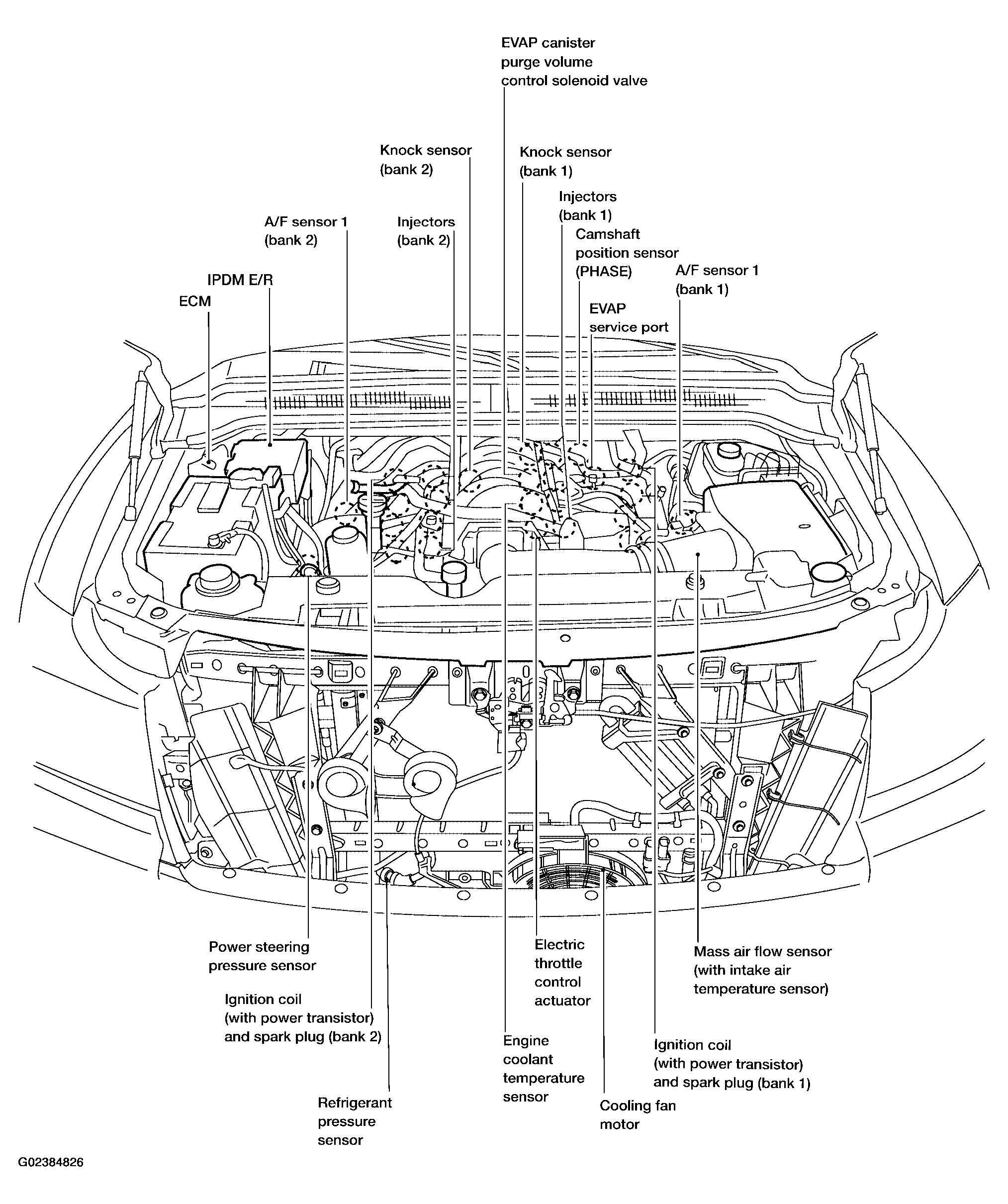

Fig 1: Locating Engine Control Component Parts (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

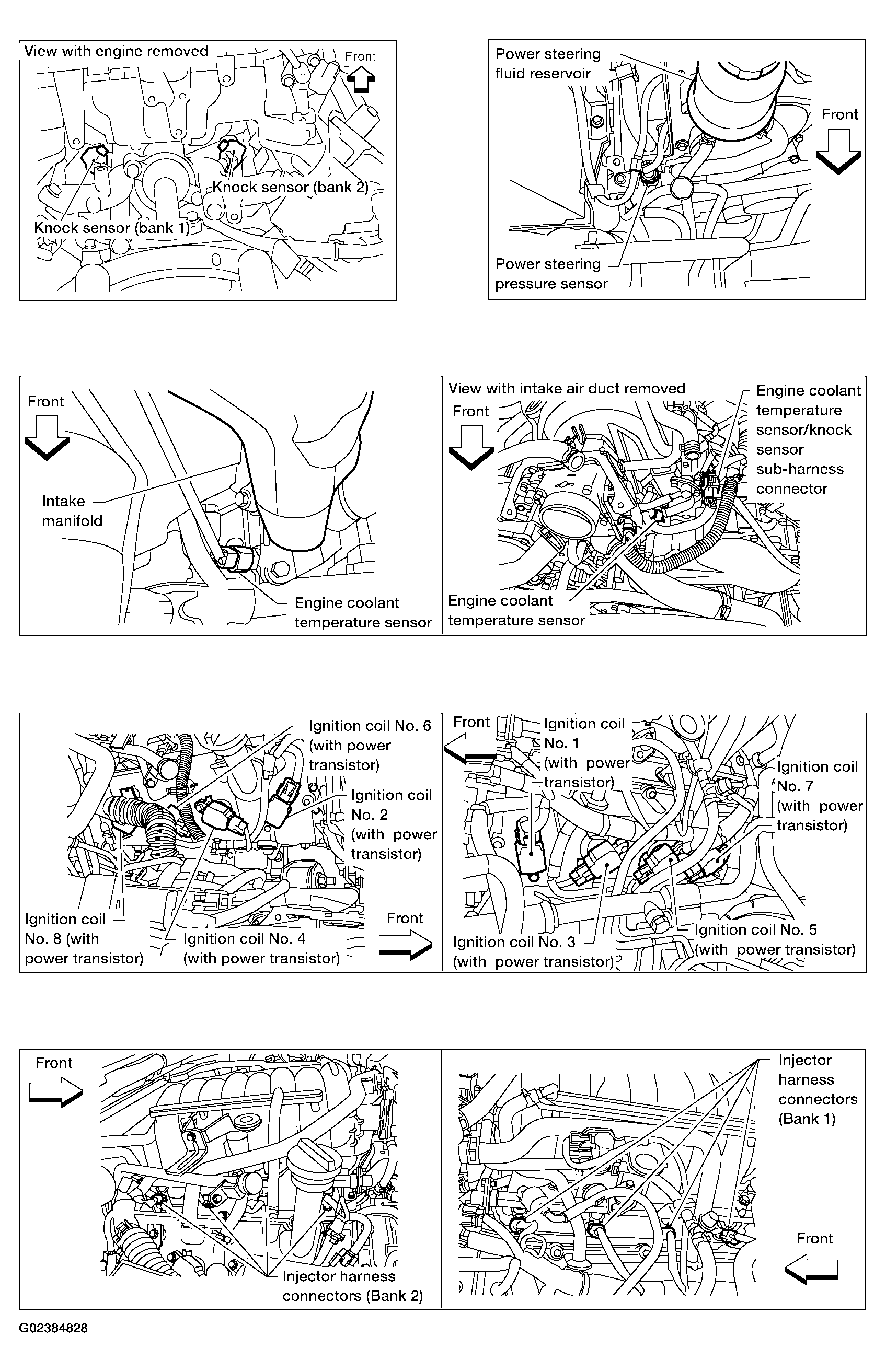

Fig 2: Locating Engine Control Component Parts (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

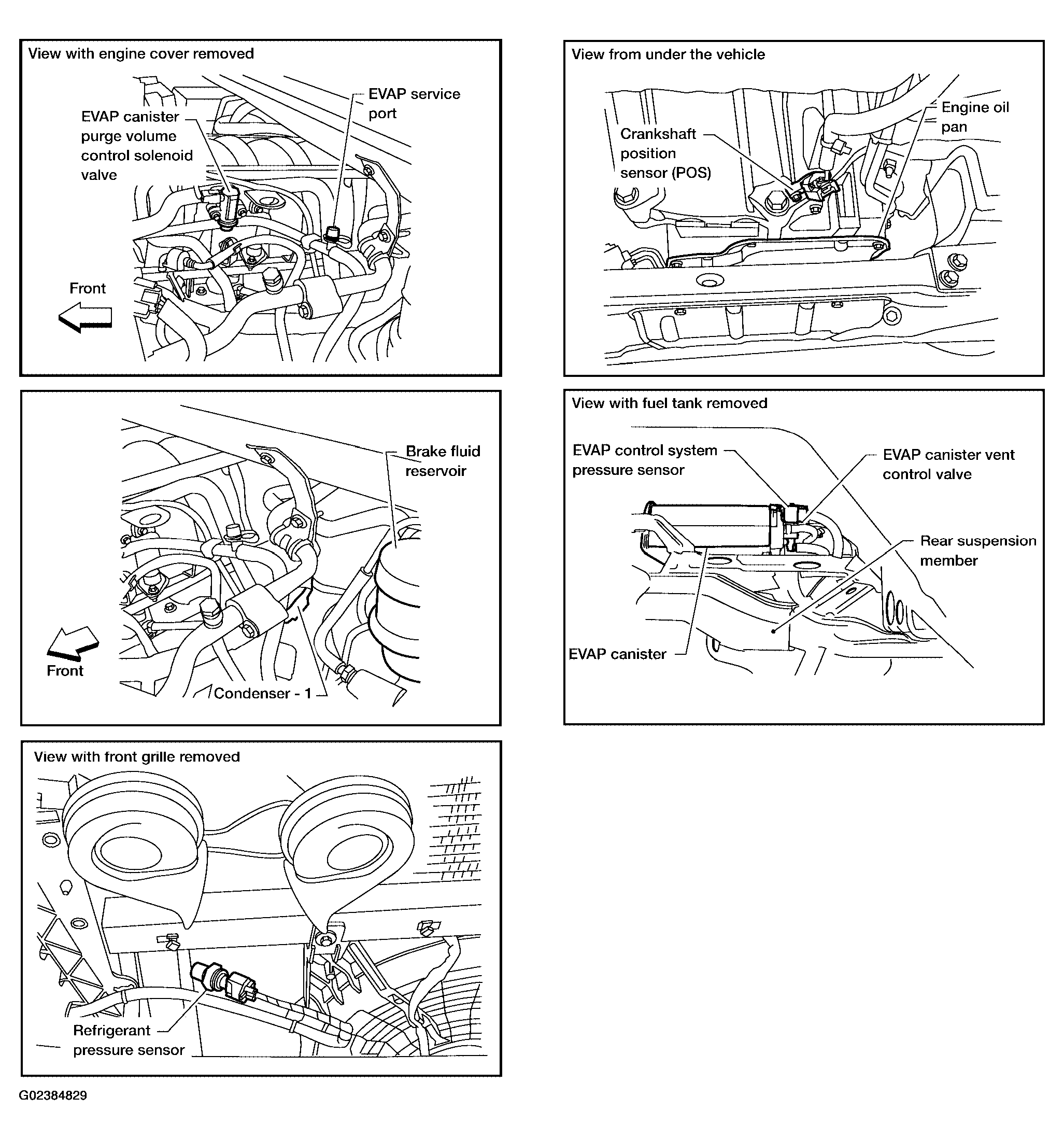

Fig 3: Locating Engine Control Component Parts (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

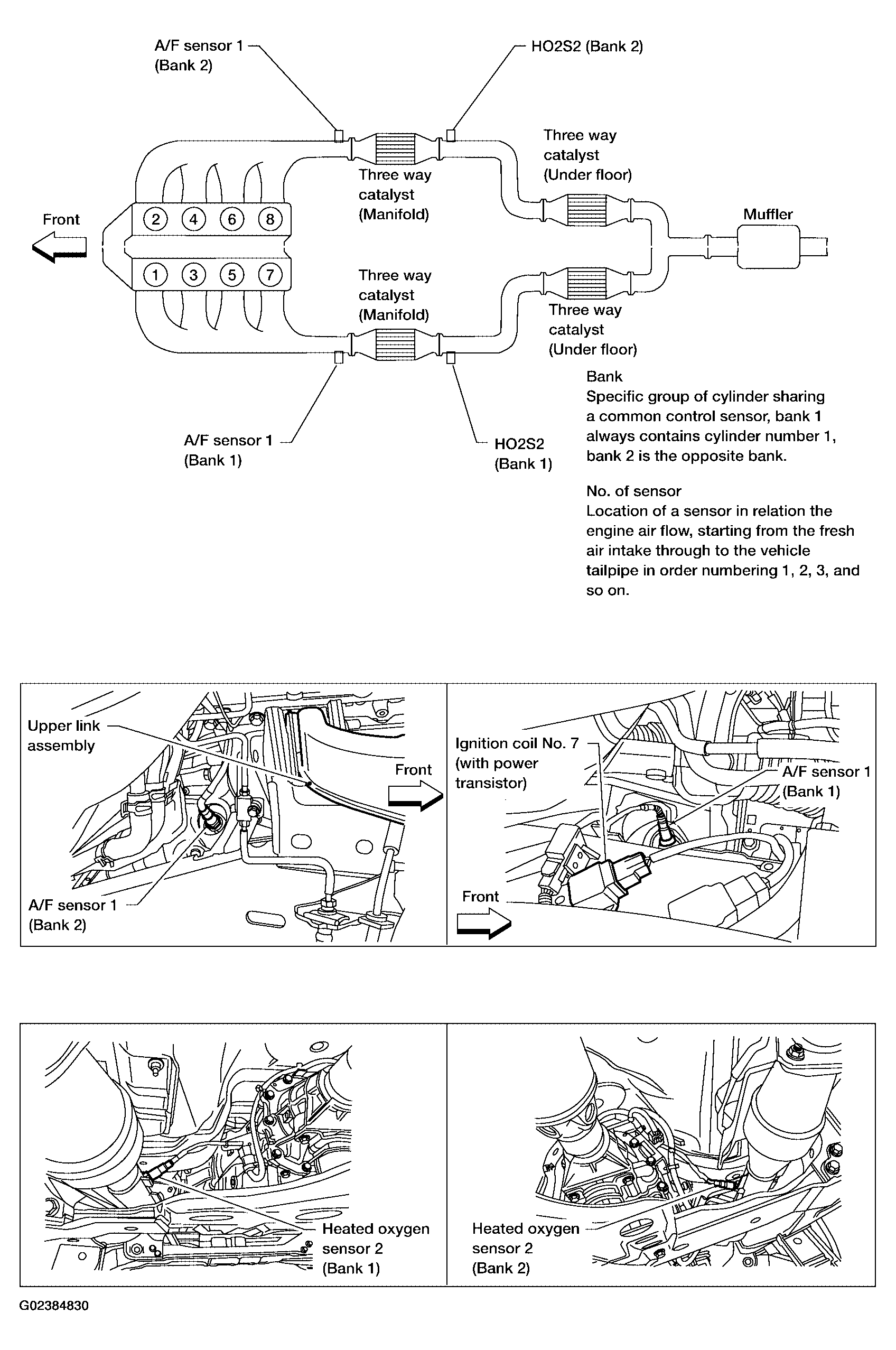

Fig 4: Locating Engine Control Component Parts (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

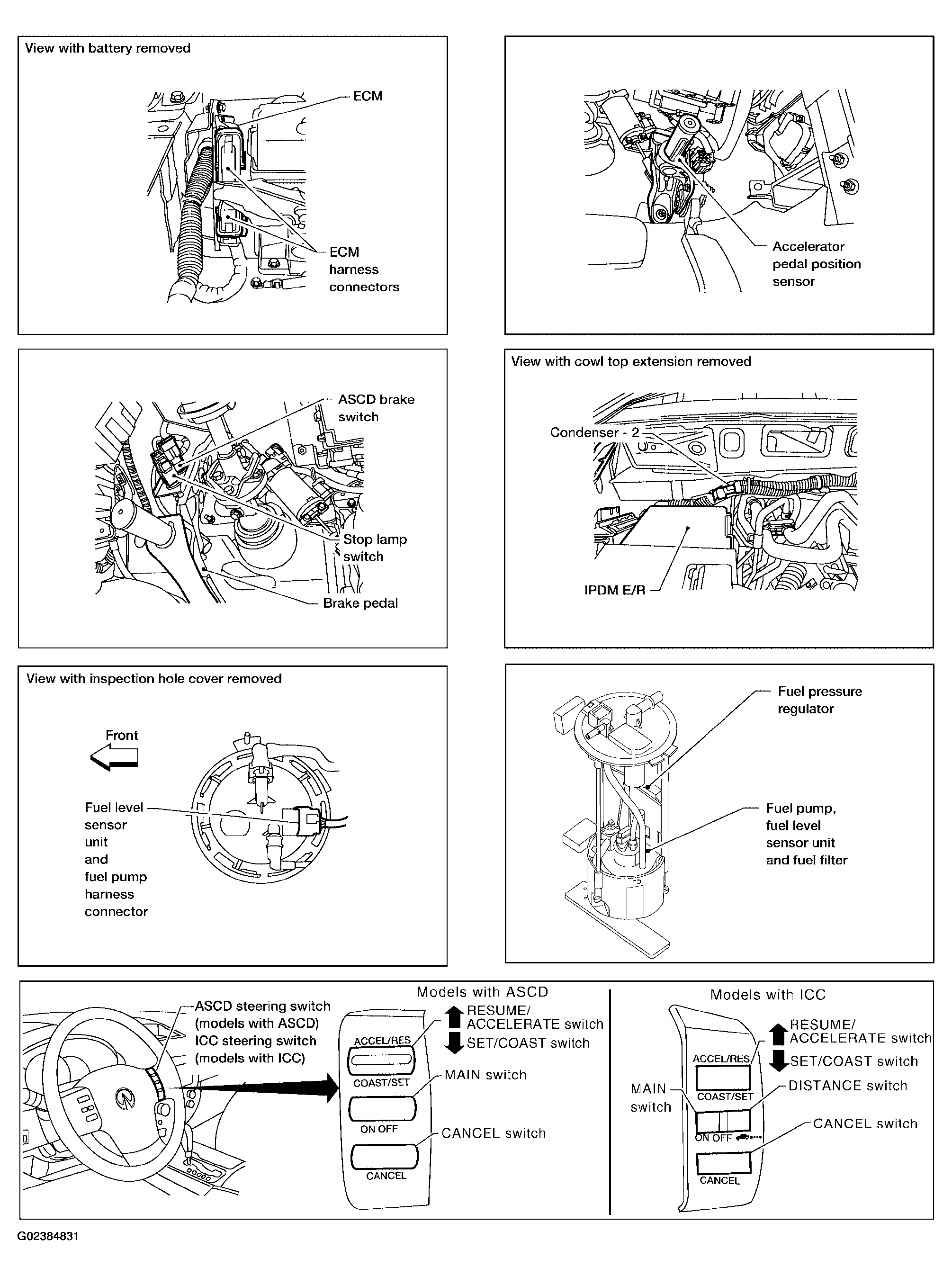

Fig 5: Locating Engine Control Component Parts (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Locating Engine Control Component Parts (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
